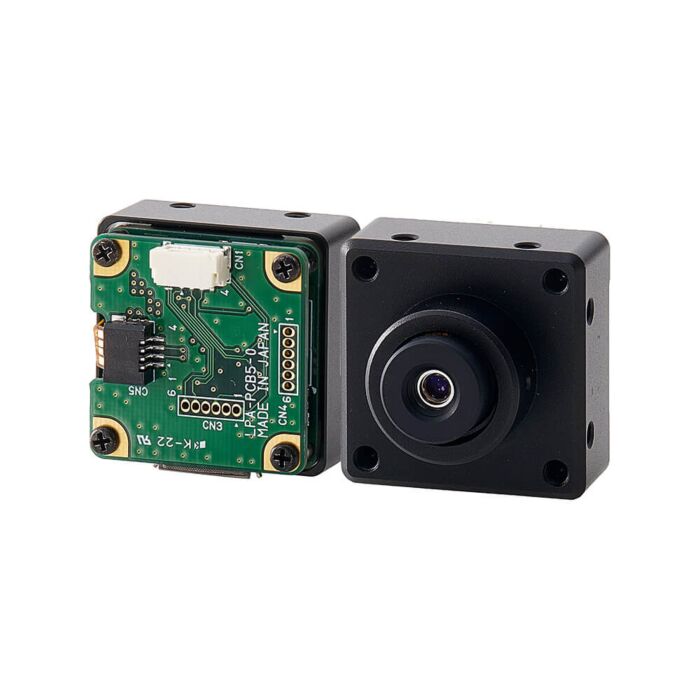

Omron STC-BCS502U3V-VF096 USB 3.0 1/1.8" Sony IMX568 CMOS, 5 MP, Color, 9.6mm Liquid Lens Camera
*Please note tariff fee is included in price*
*Please note tariff fee is NDAA Compliant included in price*
Omron STC-BCS502U3V-VF096: 5 MP board-level camera with 70.85 fps, USB 3.0, IMX568 sensor, global shutter, 9.6mm liquid lens, and aluminum housing for industrial and robotics applications.The Omron STC-BCS502U3V-VF096 is a high-performance board-level camera designed for industrial and commercial applications requiring exceptional image clarity and fast frame rates. Featuring a 5 MP resolution (2448 x 2048 pixels), it delivers sharp and detailed color images at a high frame rate of 70.85 fps, ensuring smooth, real-time image capture.
This camera is equipped with the advanced IMX568 image sensor, offering a 1/1.8" format and a pixel size of 2.74 µm, providing excellent low-light sensitivity and superior image quality. The global shutter ensures distortion-free image capture even in fast-moving scenes, making it ideal for dynamic imaging applications.
The USB 3.0 interface supports fast data transmission, while the IR cut filter ensures accurate color reproduction under varied lighting conditions. The camera features a 9.6mm liquid lens, providing dynamic focal length adjustments, perfect for close-up imaging. The camera uses an area scan to capture full-frame images, offering a versatile and compact solution.
Encased in durable aluminum housing, the Omron STC-BCS502U3V-VF096 offers robust protection for sensitive electronics and can be integrated into various systems without compromising performance.
Features:
- 5 MP resolution (2448 x 2048)
- 70.85 fps frame rate
- USB 3.0 interface
- IMX568 sensor (1/1.8" format)
- Global shutter
- 9.6mm liquid lens
- IR cut filter
- Aluminum housing
Applications:
- Industrial imaging
- Machine vision
- Quality control
- Robotics
- Surveillance
- Medical imaging
| Camera type | Color |
| Number of pixels | 5 MP |
| Interface | USB 3.0 |
| Lens mount | Other |
| Shutter type | Global |
| Image width | 2448 pixels |
| Image height | 2048 pixels |
| Image sensor format | 1/1.8" |
| Image sensor type | IMX568 |
| Pixel size | 2.74 µm |
| Frame rate | 70.85 fps |
| Optical filter | IR cut filters |
| Lens type | Liquid |
| Scan type | Area scan |
| Material housing | Aluminum |
