Omron STC-BCS500POE-BC Monochrome B-Series GigE Vision Board Level Global Shutter Camera
*Please note tariff fee is included in price*
5MP color Omron B‑Series GigE Vision board camera with Sony IMX264 global shutter CMOS sensor, 2/3" C‑mount, 2,448 × 2,048 at 21.9 fps, and PoE for compact OEM machine vision integration.

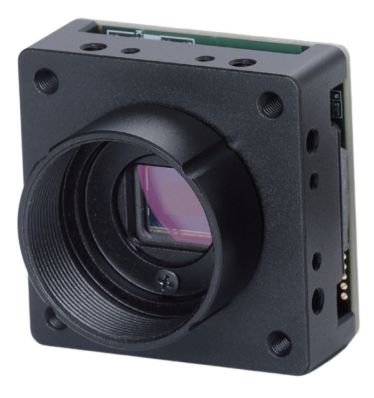

NDAA CompliantThe Omron STC-BCS500POE-BC is a 5 megapixel color GigE Vision board-level camera built around the Sony IMX264 2/3" global shutter CMOS sensor, delivering 2,448 × 2,048 resolution at up to 21.9 frames per second for accurate, low-noise image capture. With a C-mount interface, 3.45 µm pixels, and true global shutter readout, it reliably freezes fast motion and fine detail in inspection, alignment, and measurement tasks where image stability and repeatability are critical.
Designed as part of Omron’s B‑Series, this compact 38 × 38 mm GigE Vision camera supports Power over Ethernet (PoE) for simplified single‑cable integration and flexible placement in space‑constrained OEM systems. Its board-level construction and industrial‑grade electronics provide a robust platform for embedded vision, enabling machine builders and integrators in North America and global markets to standardize on a proven Sony Pregius‑class sensor and GigE interface.
Features:
- 5MP resolution: 2,448 (H) × 2,048 (V) effective pixels for detailed inspection and measurement.
- Sony IMX264 sensor: 2/3" global shutter CMOS with 3.45 µm pixels for low noise and motion-freeze imaging.
- Color output: STC-BCS500POE-BC color model for true‑color visualization and defect classification.
- GigE Vision interface: Standard GigE Vision compliant interface for long cable runs and easy network integration.
- Power over Ethernet: PoE capability reduces cabling by combining data and power on a single Ethernet line.
- Board-level design: 38 mm square board / C‑mount housing for compact OEM and embedded vision systems.
- Global shutter: Minimizes rolling artifacts and distortion when capturing moving parts.
- B‑Series platform: Part of Omron’s B‑Series range (0.4–20 MP) for family‑wide scalability across resolutions.
Applications:
- Factory inspection
- Robotics guidance
- PCB inspection
- Medical diagnostics
- Automotive testing
- Semiconductor inspection
- Embedded vision
- Laboratory Automation
| Model | STC-BCS500POE-BC |
| Series | Omron B-Series GigE Vision Board Camera |
| Sensor Type | CMOS |
| Sensor Name | Sony IMX264 |
| Sensor Size | 2/3" |
| Pixel Size | 3.45 µm × 3.45 µm |
| Resolution | 5.0 MP (2,448 × 2,048) |
| Monochrome / Color | Color |
| Shutter Type | Global Shutter |
| Frame Rate | 21.9 fps (8-bit) |
| Interface | GigE Vision |
| Power Type | Power over Ethernet (PoE) or external supply (per Omron guidelines) |
| Lens Mount | C-Mount |
| Camera Type | Board-level area scan camera |
| Housing Dimensions | Approx. 38 (W) × 38 (H) × 40.4 (D) mm |
| Series Resolution Range | 0.4 MP to 20 MP (B-Series family) |
| Typical Applications | Embedded vision, machine vision inspection, life science, automotive, semiconductor, automation |
| Compliance | GigE Vision, Omron SENTECH industrial camera standards |
