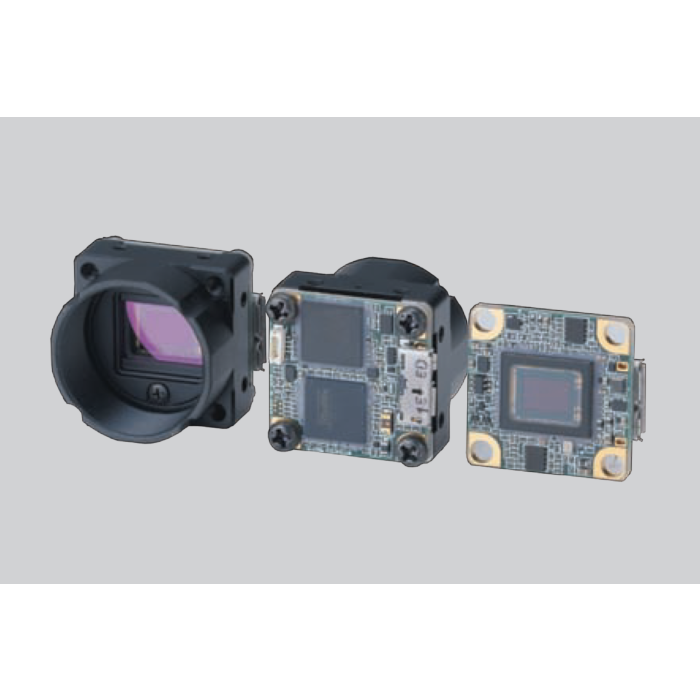

Omron STC-BCS43U3V 0.4 MP IMX287 USB3 Global Shutter Board Camera

The Omron STC-BCS43U3V is a board-level color area scan camera featuring a 0.4 MP Sony IMX287 global shutter CMOS sensor, delivering up to 527.1 frames per second at 720 x 540 resolution over a USB 3.0 interface. This combination of high frame rate, low latency global shutter readout, and compact 27.5 mm square footprint makes it ideal for space-constrained, high-speed inspection and measurement applications where motion blur cannot be tolerated.

Designed for reliable integration into industrial systems, the STCBCS43U3V supports USB3 Vision 1.0.1, USB bus power under 2.0 W, and a C-mount lens interface with integrated IR-cut filter. Advanced features such as full-frame and ROI scanning, edge-trigger and free-run modes, flexible exposure from 1 µs to 16.777 s, and robust gain, gamma, and image flip controls give developers precise control of image quality in diverse environments from 0 °C to +36 °C operating temperature.

Features:

• 0.4 MP, 720 x 540 Sony IMX287 global shutter CMOS sensor
• Up to 527.1 fps over USB 3.0, USB3 Vision 1.0.1 compliant
• Color board-level area camera with C-mount lens interface and IR-cut filter
• USB bus powered, under 2.0 W for simplified cabling and low power draw
• Compact 27.5 x 27.5 x 23.33 mm design, approximately 16 g for embedded use
• Full-frame and ROI scanning, edge-trigger and free-run modes.
• 1 µs–16.777 s exposure, analog gain to 43.2 dB, digital gain to 2x
• Image flip, defective pixel correction, and eight user setting banks

Applications:

• High-speed inspection
• Robotics vision
• Embedded imaging
• Motion analysis
• Factory automation
• PCB inspection
• Metrology systems
