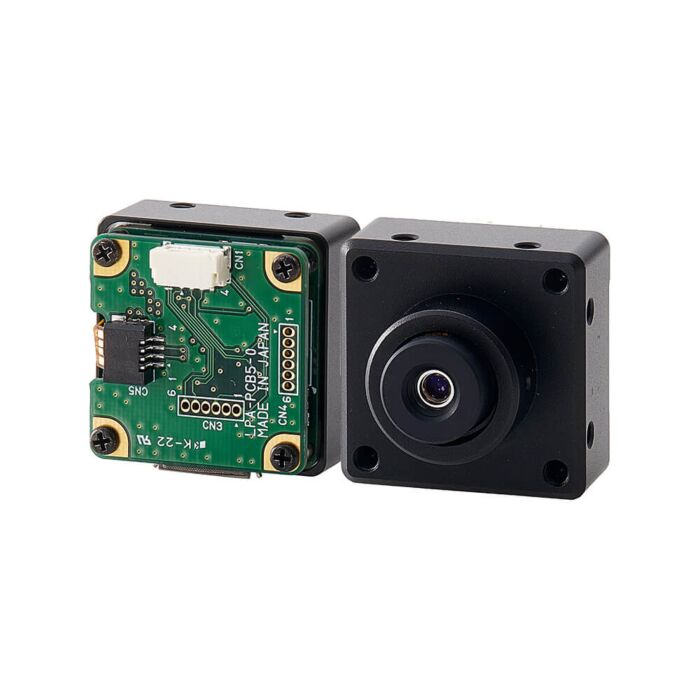

Omron STC-BCS43U3V-VF096 0.4 MP USB 3.0 Color Board Camera, IMX287 Global Shutter, 9.6 mm Liquid Lens
*Please note tariff fee is included in price*
0.4 MP USB 3.0 color board‑level camera with Sony IMX287 global shutter sensor, 720 × 540 at 527.1 fps and integrated 9.6 mm liquid lens for fast, software‑controlled focus in compact machine vision systems.
NDAA CompliantThe Omron STC-BCS43U3V-VF096 is a high‑speed 0.4 MP color board‑level camera built around the Sony IMX287 global shutter CMOS sensor, delivering 720 × 540 resolution at up to 527.1 fps over USB 3.0. Its 6.9 µm pixels and 1/2.9" optical format provide excellent sensitivity and low noise, making this camera a strong fit for demanding applications that must freeze fast motion and minimize distortion.
An integrated 9.6 mm liquid lens enables rapid, software‑controlled focus adjustment without moving mechanical parts, simplifying optics, reducing maintenance, and accelerating changeovers in automated systems. The compact board‑level form factor and USB bus power allow easy integration into embedded vision, compact inspection tools, and custom OEM equipment.
Features:
- 0.4 MP IMX287 CMOS sensor
- 720 x 540 resolution
- 527.1 fps frame rate
- Global shutter
- USB 3.0 interface
- 9.6mm liquid lens
- 1/2.9" sensor format
- IR cut filter
- Aluminum housing
Applications:
- Industrial inspection
- High-speed imaging
- Robotics vision systems
- Scientific research
- Automated quality control
| Model | STC-BCS43U3V-VF096 |
| Camera Type | Color board-level area scan camera |
| Resolution | 0.4 MP |
| Effective Pixels (H × V) | 720 × 540 pixels |
| Image Sensor | Sony IMX287 CMOS |
| Sensor Format | 1/2.9" |
| Pixel Size | 6.9 µm |
| Shutter Type | Global shutter |
| Scan Type | Area scan |
| Maximum Frame Rate | 527.1 fps (full resolution) |
| Interface | USB 3.0 (USB3 Vision 1.0.1) |
| Power Supply | USB bus power (+5 V) |
| Power Consumption | < 2.0 W |
| Lens Type | Integrated liquid lens, f = 9.6 mm |
| Lens Mount | Other (integrated liquid lens assembly) |
| Optical Filter | IR cut filter |
| Output Pixel Formats | BayerRG8 / BayerRG10 / BayerRG12 / BayerRG10Packed / BayerRG12Packed |
| Trigger Modes | Free-run, edge preset trigger |
| Exposure Time | 1 µs to 16.777 s |
| Analog Gain | 0 to 43.2 dB |
| Auto Functions | Auto exposure, auto gain, auto white balance |
| User Settings | Up to 8 user settings storable |
| Chunk Function | Supported |
| Event Function | Supported |
| PTP (IEEE 1588) | Not supported |
| Housing Material | Aluminium (board-level assembly) |
| Operating Temperature | 0 °C to +51 °C (environmental) |
| Storage Temperature | -20 °C to +70 °C (environmental) |
