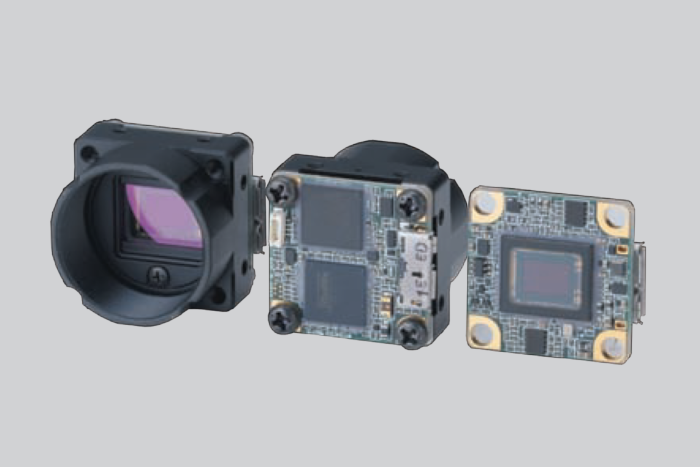

Omron STC-BBS502U3V USB 3.0 Small Board - 1/2.9" Sony IMX568 CMOS, 5 MP, Monochrome Global Shutter Camera
*Please note tariff fee is NDAA Compliant included in price*
5MP monochrome USB3 Vision area scan camera with Sony IMX568 global shutter sensor, 70.8 fps, C‑mount, and compact, low-power design for industrial and embedded machine vision.
The STC-BBS502U3V-AC is a 5MP monochrome area scan camera designed for high-speed, high-precision industrial imaging. Delivering 2,448 × 2,048 effective pixels at up to 70.8 fps, it leverages the Sony IMX568 1/1.8" global shutter sensor to capture distortion-free images of fast-moving objects, even in demanding inspection and metrology applications. With support for Mono8/10/12 and packed pixel formats, plus advanced features such as ROI, binning, decimation, and image flip, it provides flexible optimization of frame rate, resolution, and field of view for your machine vision system.
Engineered for embedded and factory environments, the STCBBS502U3VAC uses a USB3.0 interface with USB3 Vision 1.0.1 compliance, drawing less than 1.9 W from a +5 V USB bus for simple integration and reliable power delivery. Its compact 30.5 × 29 × 25.55 mm housing with C‑mount, no optical filter, and operating temperature range from 0 °C to +51 °C allows easy deployment into tight spaces and custom enclosures. On‑camera features such as auto exposure, auto gain, defective pixel correction for up to 1,024 pixels, user memory (eight profiles), and event/chunk functions help streamline system design and improve measurement repeatability.
Features:
- 5MP Sony IMX568 monochrome global shutter sensor for distortion-free imaging
- 2,448 × 2,048 resolution at up to 70.8 fps for high-speed inspection
- USB3.0 interface, USB3 Vision 1.0.1 compliant for high-bandwidth data transfer
- Compact 30.5 × 29 × 25.55 mm C-mount housing, approx. 26 g weight
- USB bus powered (+5 V) with power consumption under 1.9 W
- Full-frame and ROI scanning with binning and decimation options
- Wide exposure (1 µs–16.777 s) and analog/digital gain control
- Auto exposure, auto gain, and user memory (eight profiles) for rapid setup
- Defective pixel correction (up to 1,024 pixels) and image flip functions
Applications:
- Electronics inspection
- PCB verification
- Factory automation
- Metrology imaging
- Robot guidance
- Code reading
- Motion analysis
- Lab automation
| Product Model | STC-BBS502U3V-AC |
| Camera Type | Area camera |
| Resolution | 5MP |
| Color / Monochrome | Monochrome |
| Effective Pixels | 2,448 (H) × 2,048 (V) |
| Frame Rate | 70.8 fps |
| Interface | USB3.0 |
| Protocol | USB3 Vision 1.0.1 |
| Power Supply | USB bus power (+5 V) |
| Power Consumption | < 1.9 W |
| Operating Temperature | 0 °C to +51 °C (ambient) |
| Storage Temperature | -20 °C to +70 °C (environmental) |
| Image Sensor | Sony IMX568 |
| Shutter Type | Global shutter |
| Optical Size | 1/1.8" |
| Cell Size | 2.74 (H) × 2.74 (V) µm |
| Dimensions | 30.5 (W) × 29 (H) × 25.55 (D) mm |
| Weight | Approx. 26 g |
| Lens Mount | C-mount |
| Optical Filter | None |
| Data Connector | USB3.0 Micro-B × 1 |
| Power / Signal Connector | BM04B (JST) × 1 |
| Scanning Mode | Full scanning / ROI |
| Operational Mode | Edge preset trigger / Free-run |
| Image Pixel Formats | Mono8 / Mono10 / Mono12 / Mono10Packed / Mono12Packed |
| Exposure Time | 1 µs to 16.777 s |
| Analog Gain | 0 to 43.2 dB |
| Digital Gain | ×1 to ×2 |
| Gamma | 0.1 to 4.0 |
| Binning | ×2 horizontal and vertical individually / Off |
| Decimation | ×2 horizontal and vertical individually / Off |
| Image Flip | Vertical / Horizontal / Vertical + Horizontal / Off |
| Defective Pixel Correction | Up to 1,024 pixels |
| Save User Settings | Supported (eight settings) |
| White Balance | N/A (monochrome) |
| FFC Function | N/A |
| Auto Control Functions | Auto exposure / Auto gain |
| Chunk Function | Supported |
| Event Function | Supported |
| PTP Function (IEEE1588) | N/A |
