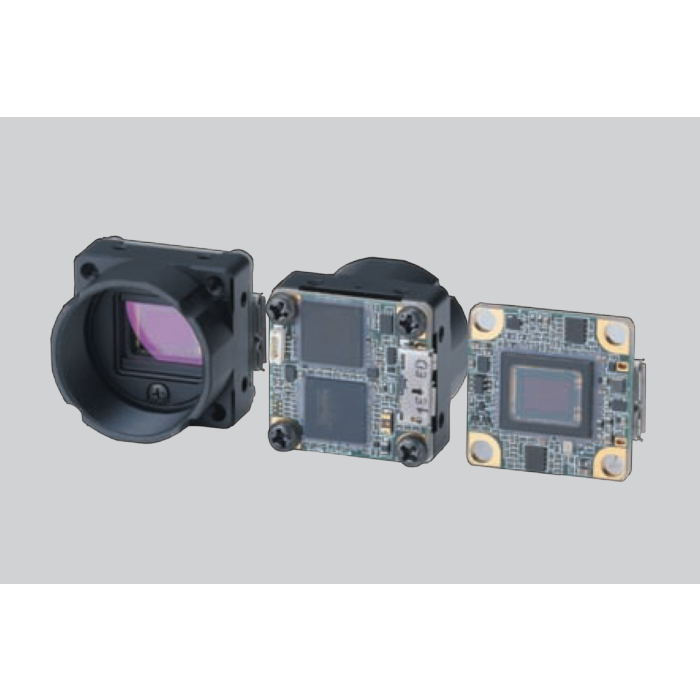

Omron STC-BBS43U3V 0.4 MP USB 3.0 Monochrome Board Camera, Sony IMX287 Global Shutter, 527 fps Area Scan

The Omron STC-BBS43U3V is a compact 0.4 MP monochrome board-level area scan camera built around the Sony IMX287 1/2.9" global shutter CMOS sensor, delivering 720 x 540 resolution at up to 527.1 fps for high-speed, low-latency imaging. Its large 6.9 µm pixels provide strong light sensitivity and low noise, making it well-suited to demanding industrial and laboratory environments where consistent grayscale detail is critical.​

With a USB 3.0 interface and USB3 Vision 1.0.1 compliance, the STC-BBS43U3V offers high-bandwidth data transfer and straightforward integration with standard vision software and host PCs using simple bus power. The bare-board design without lens mount or optical filter allows integrators to specify custom optics and mechanics, while features such as ROI, edge-triggered or free-run operation, image flip, auto exposure, and auto gain give engineers fine control over performance in space-constrained embedded vision systems across North America and other industrial markets.

Features:

• 0.4 MP resolution (720x540)
• 527.1 fps frame rate
• 1/2.9" IMX287 global shutter sensor
• 6.9 µm pixel size
• USB 3.0 interface
• No lens mount or optical filter

Applications:

• High-speed industrial inspection
• Motion analysis
• Scientific research
• Automation systems
• Embedded vision solutions
