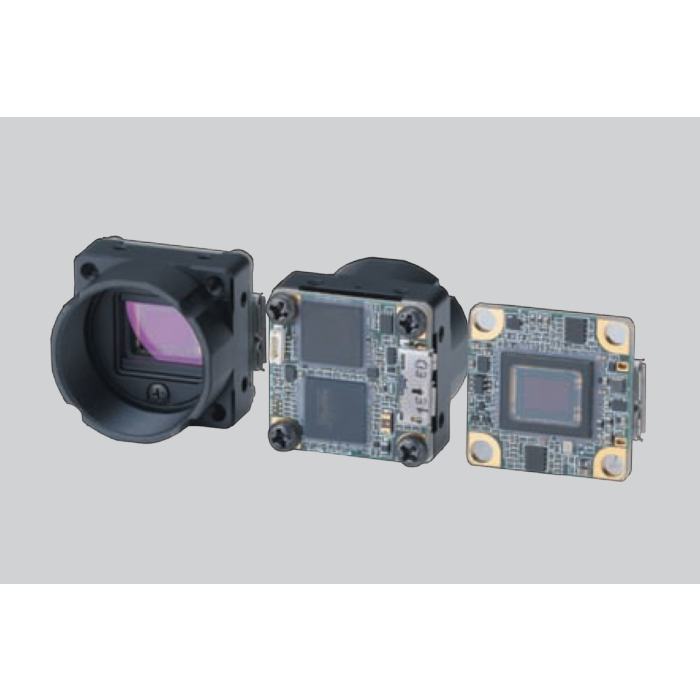

Omron STC-BBS163U3V-BC 1.6 MP USB 3.0 Monochrome Board Camera, IMX273 Global Shutter, C‑Mount
*Please note tariff fee is included in price*
1.6 MP Omron USB 3.0 monochrome board camera with Sony IMX273 global shutter sensor, 1440 × 1080 resolution at up to 238 fps, and C‑mount lens interface for high‑speed machine vision and industrial inspection.
NDAA CompliantThe Omron STC-BBS163U3V-BC is a 1.6 MP monochrome board‑level camera engineered for high‑speed, high‑precision industrial imaging. With 1440 × 1080 resolution at up to 238 fps, a 1/2.9" Sony IMX273 global shutter CMOS sensor, and USB 3.0 connectivity, it delivers sharp, distortion‑free images of fast‑moving targets for demanding machine vision, inspection, and automation tasks.
A C‑mount lens interface gives system integrators flexibility to select optics for specific working distances and fields of view, while the board‑level form factor simplifies integration into compact enclosures and OEM designs. Paired with robust Omron industrial camera support across the United States, Canada, Mexico, and Europe, the STCBBS163U3VBC helps manufacturers deploy reliable, repeatable vision systems on production lines, test stands, and robotics platforms.
Features:
- 1.6 MP monochrome
- 1440 × 1080 pixels
- Sony IMX273 sensor
- 1/2.9" global shutter
- Up to 238 fps
- USB 3.0 interface
- USB3 Vision compliant
- C‑mount lens mount
- Board‑level design
- No optical filter
- 3.45 µm pixel size
- Aluminum housing
Applications:
- Machine vision
- Quality inspection
- Robot guidance
- Motion analysis
- Line scanning
- Code reading
- Parts sorting
- Lab automation
| Model | Omron STC-BBS163U3V-BC |
| Camera Type | Monochrome board-level area scan camera |
| Number of Pixels | 1.6 MP |
| Resolution | 1440 (H) × 1080 (V) pixels |
| Image Sensor Format | 1/2.9" |
| Image Sensor Type | Sony IMX273 CMOS |
| Shutter Type | Global shutter |
| Pixel Size | 3.45 µm |
| Frame Rate | Up to 238 fps |
| Interface | USB 3.0 |
| Lens Mount | C-mount |
| Optical Filter | None |
| Scan Type | Area scan |
| Housing Material | Board-level (no external housing) |
