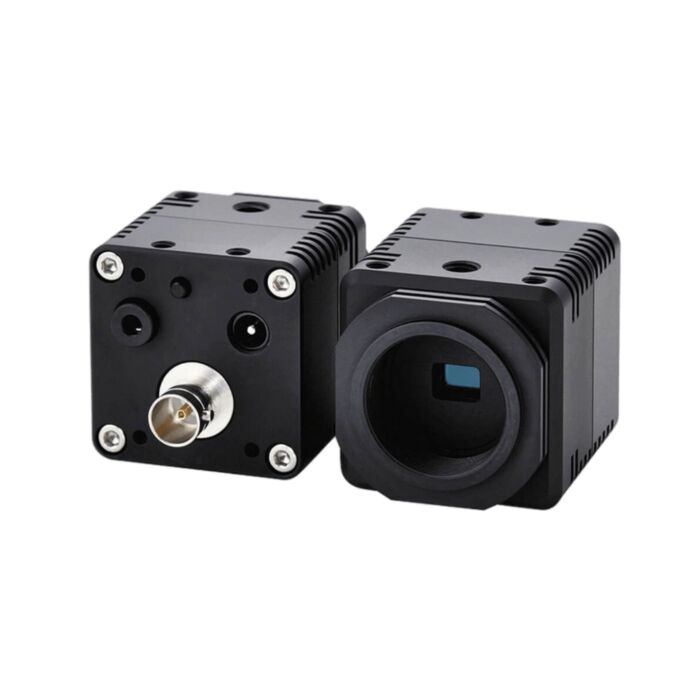

Omron (Sentech) STC-HD213SDI
1/2.8" C-Mount Camera With 1080P60 HD Output, and Sony IMX291 CMOS Sensor
NDAA Compliant
*Please note tariff fee is included in price*
The Omron STC-HD213SDI delivers professional 2MP Full HD imaging for industrial machine vision and quality inspection. Featuring a Sony IMX291 CMOS sensor with 1920x1080 resolution at 60fps, this compact HD-SDI camera enables uncompressed video transmission up to 100 meters. The C-mount interface, rolling shutter technology, and 2.9µm pixels ensure exceptional image quality in a rugged aluminum housing perfect for automation, surveillance, and manufacturing applications.
The Omron (Sentech) STC-HD213SDI is a high-performance 2MP area scan camera engineered for precision imaging applications. It features a 1920 x 1080 pixel resolution powered by a 1/2.8" format image sensor, delivering sharp and detailed outputs. The camera operates with a global shutter, ensuring accurate image capture even for fast-moving objects, while maintaining a 60 fps frame rate for seamless high-speed applications.
Equipped with an HD-SDI interface, this camera ensures uncompressed video transmission over long distances with minimal latency. The C-mount lens interface provides compatibility with a wide range of industry-standard lenses, offering flexibility for diverse imaging setups. With a pixel size of 2.8 µm, it delivers enhanced light sensitivity and image quality in challenging environments.
Constructed from Aluminium A6061, the housing provides durability and resistance to environmental wear. Its area scan functionality ensures consistent image capture across the entire sensor. The absence of an optical filter allows for versatile operation in various spectral ranges. Ideal for industrial imaging, quality assurance, and vision-based automation tasks, the Omron STC-HD213SDI delivers reliability and exceptional performance.
Features:
- 1/2.8" CMOS Sensor (SONY: IMX291)– Professional-grade imaging with exceptional low-light performance
- Full HD 1080p– Crystal-clear 1920×1080 resolution for detailed inspection
- Direct-Connect Monitor Viewing via 3G-SDI – No PC or frame grabber required
- Low Cost & Compact Case Size – Professional performance in a space-saving 40×40mm design
- 60 fps Frame Rate – Smooth real-time video for dynamic applications
- HD-SDI Interface – Uncompressed video transmission up to 100 meters over coax cable
- C-Mount Lens – Compatible with thousands of industry-standard lenses
- 2.8 µm Pixel Size – Enhanced light sensitivity for superior image quality
- Aluminium Housing – Rugged industrial construction withstands demanding environments
- Area Scan – Full-frame simultaneous capture for consistent imaging
- No Optical Filter – Extended spectral response including near-infrared sensitivity
Applications:
- Industrial Imaging
- Machine Vision
- Quality Inspection
- Automation
- Broadcasting
- Surveillance
- Traffic Monitoring
- Medical Imaging
| Effective Pixels | 1920(H) x 1080(V) |
| Cell Size | 2.9(H) x 2.9(V) µm |
| Shutter Type | Rolling Shutter |
| Minimum Illumination | 0.4 Lux at F1.4 (Gain Max) |
| Frame Rate |
|
| ALC | AEE / AGC Interlock |
| Gain | 0 ～ 45dB |
| Gamma | 0.3 / 0.45 / 0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1 / Manual |
| White Balance | Auto / Manual / One Push |
| Image Flip | Horizontal / Vertical / Horizontal and Vertical / Off |
| Line Marker | 2 Lines Each for Horizontal, Vertical Line Marker / Off |
| Shadow Mask | Horizontal, Vertical Shadow Mask ON / Off |
| OSD | OSD Display available via UART Communication |
| Pixel Defect Correction | Up to 256 Points |
| Video Output |
|

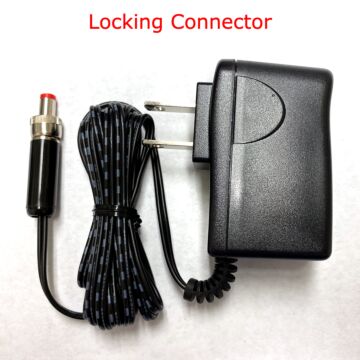

| Power Input | DC Power Jack【PC721A (Switchcraft) Equivalent】 |
| Consumption Power |
|
| Communication | UART Communication: 3.5 mm Stereo Pin Jack |
| Input Voltage | +9 ～ +15 Vdc (Typical: +12 Vdc) |
| Size | 40 (W) x 40 (H) x 48.9 (D) mm |
| Optical Filter | IR Cut Filter, Optical Low Pass Filter Attached |
| Lens Mount | C-Mount |
