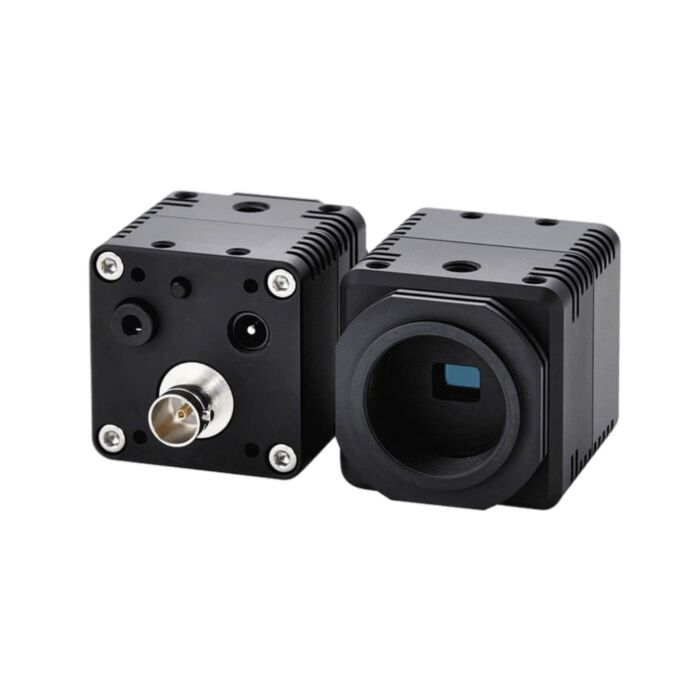

Omron (Sentech) STC-HD213SDI-CS
1/2.8" CS-Mount Camera With 1080P60 HD Output, Rolling Shutter and Sony IMX291 CMOS Sensor
NDAA Compliant
*Please note tariff fee is included in price*
The NDAA Compliant Omron (Sentech) STC-HD213SDI-CS is a professional Full HD camera featuring a high-performance 1/2.8" SONY IMX291 CMOS sensor with advanced rolling shutter technology for exceptional image quality. With dual 3G-SDI and HDMI outputs, superior 0.4 lux low-light sensitivity, and a compact design, it's ideal for surveillance, broadcast, and industrial applications requiring reliable 24/7 performance. This camera meets strict federal NDAA compliance requirements, making it suitable for government and military installations while offering seamless integration into existing systems.
The Omron (Sentech) STC-HD213SDI-CS is a highly versatile and compact Full HD camera designed for advanced imaging applications. Featuring a 1/2.8" SONY IMX291 CMOS sensor, it delivers stunning 1920 x 1080 resolution with 2.9 µm pixel pitch for sharp, detailed visuals. Equipped with a rolling shutter and a minimum illumination of 0.4 lux at F1.4 (Gain Max), it performs exceptionally well in low-light environments.
With multiple video output options, including HDMI (DVI) and BNC (3G-SDI/HD-SDI), the camera supports a range of frame rates, such as 1080p60, 59.94, 50, and 720p60, ensuring compatibility with diverse broadcast and industrial applications. Advanced features like automatic exposure control (ALC), adjustable gain from 0 to 45dB, and customizable gamma settings (0.3 to 1.0) provide precise control over image quality.
The Omron STCHD213SDICS incorporates an IR Cut Filter and Optical Low Pass Filter for enhanced color fidelity and sharpness. It also includes pixel defect correction (up to 256 points), shadow masking, line markers, and image flip capabilities. Compact in design, the camera measures 40 x 40 x 48.9 mm, is CS-mount compatible, and operates efficiently with under 3.3W power consumption. With UART communication and intuitive on-screen display (OSD) controls, this camera offers seamless integration into various monitoring systems.
Features:
- 1/2.8" CMOS Sensor (SONY: IMX291) - High-performance imaging sensor for exceptional clarity and detail
- Full HD 1080p Resolution - Delivers crisp, professional-grade video quality
- Direct-Connect Monitor Viewing via 3G-SDI - Enables seamless real-time monitoring without additional equipment
- Low Cost & Compact Case Size - Space-efficient design offering excellent value and flexible installation options
- 60 fps Frame Rate - Smooth video capture ideal for fast-moving subjects and dynamic environments
- HD-SDI Interface - Professional-grade digital video output for broadcast-quality transmission
- CS-Mount Lens - Compatible with a wide range of interchangeable CS-mount lenses for versatile applications
- 2.8 µm Pixel Size - Enhanced light sensitivity and improved image quality
- Aluminium Housing - Durable, lightweight construction for long-lasting performance
- Area Scan Technology - Captures full-frame images for comprehensive scene coverage
- No Optical Filter - Maximizes light transmission for superior low-light performance
Applications:
- Industrial Imaging - Precision imaging for manufacturing and production environments
- Machine Vision - Automated visual inspection and quality control systems
- Quality Inspection - Detailed product examination and defect detection
- Automation - Integration with automated systems for streamlined operations
- Broadcasting - Professional video production and live streaming applications
- Surveillance - Reliable security monitoring and threat detection
- Traffic Monitoring - Real-time vehicle and pedestrian tracking systems
- Medical Imaging - Clinical documentation and diagnostic imaging solutions
| Image Sensor | 1/2.8" 2M Progressive Color CMOS (SONY: IMX291) |
|---|---|
| Shutter Type | Rolling Shutter |
| HD Active Picture Elements | 1,920 (H) x 1,080 (V) |
| Cell Size | 2.9 (H) x 2.9 (V) µm |
| Sync. System | Internal |
| Video Output | DVI 1.0 conformity RGB 1080p60 / 1080p59.94 / 1080p50 / 1080p30 / 1080p25 / 1080i60 / 1080i59.94 / 1080i50 / 720p60 / 720p59.94 / 720p50 / Auto |
| Minimum Scene Illumination | 0.4 Lux (Maximum Gain) @ F1.4 |
| Camera Functions | |
| ALC | AEE (auto exposing) and AGC are configurable via UART communication (Default: ALC On) |
| Shutter Speed | AEE or fixed exposure time control is selectable via UART communication (Default: AEE) |
| Extended | Extend shutter frame unit (Up to 2.12 seconds): N/A |
| High Speed | From 1/33,750 seconds (*1) |
| Gain | AGC or Fixed gain is selectable via UART communication (Default: AGC) 0 to 45 dB |
| Gamma | Gamma is selectable from manual and 8 preset (0.3 / 0.45 / 0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1) via UART communication (Default: Manual) |
| White Balance | Auto white balance / Manual white balance / Push to set white balance White balance is selectable via UART (Default: Auto white balance) |
| WDR | N/A |
| Mirror Image | Horizontal flip / Vertical flip / Horizontal and vertical flip (180-degree rotation) / Normal image (Default: Normal image) |
| DSP User Preset | 8 User preset is selectable via UART communication (Default: Preset 0) |
| Line Generator | Four lines (Two horizontal and two vertical lines with all available colors) (Default: Disable) |
| Circle Line Generator | One circle (Default: Disable) |
| Shadow Mask Generator | Both horizontal and vertical with shading level are adjustable via UART communication (Default: Disable) |
| Still Image | Live video or freeze image is selectable via UART communication (Default: Live video) |
| Digital Zoom Support | N/A |
| Communication | +3.3V UART communication via 3.5Φ Stereo Jack (Baud rate: 115,200bps / 57,600bps / 38,400bps / 19,200bps / 9,600bps) |
| Character Generator | Built-in character generation function via UART communication |
| Defective Pixel Collection | Support (Up to 256 points) |
| Power Input Voltage | +9 to +15 Vdc (Typical: +12 Vdc) |
| Consumption | Less than 3.2 W Less than 2.1 W |
| SDI Models (STC-HD213SDI Series) | |
| Model Number | STC-HD213SDI / STC-HD213SDI-CS STC-HD213SDIN / STC-HD213SDIN-CS |
| Image Sensor | 1/2.8" 2M Progressive Color CMOS (SONY: IMX291) |
| Shutter Type | Rolling Shutter |
| HD Active Picture Elements | 1,920 (H) x 1,080 (V) |
| Cell Size | 2.9 (H) x 2.9 (V) µm |
| Sync. System | Internal |
| Video Output | 3G-SDI (Physical layer: SMPTE 424M, Data Mapping: SMPTE 425M Level-A Compliant), 4:2:2 YCbCr 10bit 1080p60 / 1080p59.94 / 1080p50 HD-SDI (SMPTE 292M Compliant), 4:2:2 YCbCr 10bit 1080p30 / 1080p29.97 / 1080p25 / 1080i60 / 1080i59.94 / 1080i50 / 720p60 / 720p59.94 / 720p50 (Default: 1080i59.94) |
| Minimum Scene Illumination | 0.4 Lux (Maximum Gain) @ F1.4 |
| Camera Functions | |
| ALC | AEE (auto exposing) and AGC are configurable via UART communication (Default: ALC On) |
| Shutter Speed | AEE or fixed exposure time control is selectable via UART communication (Default: AEE) |
| Extended | Extend shutter frame unit (Up to 2.55 seconds): N/A |
| High Speed | From 1/33,750 seconds (*1) |
| Gain | AGC or Fixed gain is selectable via UART communication (Default: AGC) 0 to 45 dB |
| Gamma | Gamma is selectable from manual and 8 preset (0.3 / 0.45 / 0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1) via UART communication (Default: Manual) |
| White Balance | Auto white balance / Manual white balance / Push to set white balance White balance is selectable via UART (Default: Auto white balance) |
| WDR | N/A |
| Mirror Image | Horizontal flip / Vertical flip / Horizontal and vertical flip (180-degree rotation) / Normal image (Default: Normal image) |
| Picture Modes | 8 User preset is selectable via UART communication (Default: Preset 0) |
| Line Generator | Four lines (Two horizontal and two vertical lines with all available colors) (Default: Disable) |
| Circle Line Generator | One circle (Default: Disable) |
| Shadow Mask Generator | Both horizontal and vertical with shading level are adjustable via UART communication (Default: Disable) |
| Still Image | Live video or freeze image is selectable via UART communication (Default: Live video) |
| Digital Zoom Support | N/A |
| Communication | +3.3V UART communication via 3.5Φ Stereo Jack (Baud rate: 115,200bps / 57,600bps / 38,400bps / 19,200bps / 9,600bps) |
| Character Generator | Built-in character generation function via UART communication |
| Defective Pixel Collection | Support |
| Power Input Voltage | +9 to +15 Vdc (Typical: +12 Vdc) |
| Consumption | Less than 3.3 W Less than 2.1 W |
