Omron STC-HD213DV-CS
1/2.8" CS-Mount Camera With 1080P60 HD Output, Rolling Shutter and Sony IMX291 CMOS Sensor
NDAA Compliant
*Please note tariff fee is included in price*

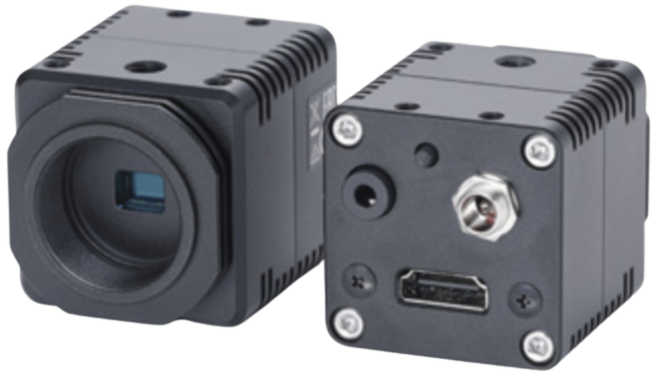

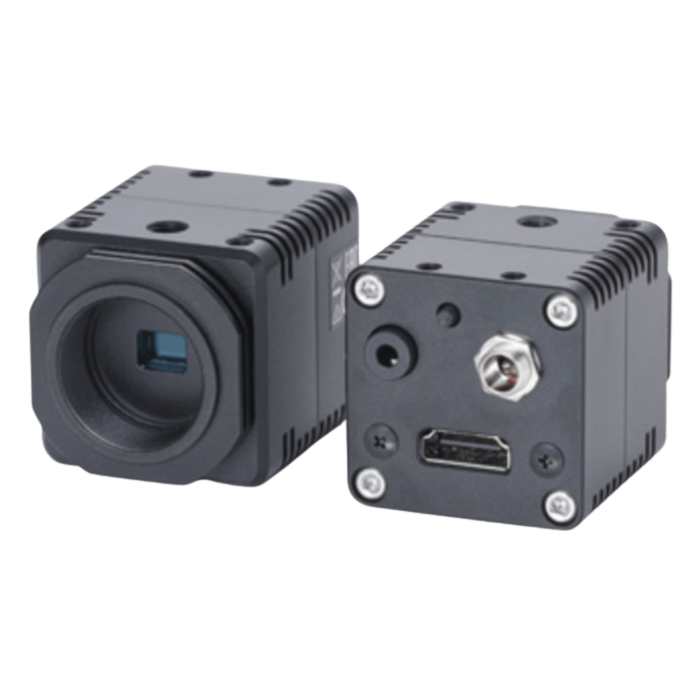

The Omron (Sentech) STC-HD213DV-CS is NDAA Compliant a compact CMOS camera delivering 1080p HD video at 60 fps. It features a 1/2.8" SONY IMX291 sensor, rolling shutter, DVI output, UART communication, and advanced imaging controls. Ideal for precision imaging tasks.
The Omron STC-HD213DV-CS is a high-performance cased camera built for precise imaging needs. Equipped with a 1/2.8" SONY IMX291 Progressive Scan Color CMOS sensor, it delivers stunning 1080p HD resolution at up to 60 fps. Featuring a rolling shutter mechanism, the camera ensures seamless video capture in applications demanding fine detail and fluid motion.
Video output adheres to DVI 1.0 standards, accessible via an HDMI connector, supporting multiple resolutions such as 1080p (60/59.94/50/30/25 fps), 1080i, and 720p, with auto configuration. The unit operates with a minimum scene illumination of 0.4 lux at maximum gain (F1.4), making it ideal for low-light environments. Advanced features include configurable ALC and AGC, shutter speeds from 1/33,750 seconds to 2.12 seconds, and selectable gamma correction with 8 presets for optimized output.
Communication is facilitated through a +3.3V UART interface with a range of baud rates. Additional functionalities include white balance modes, mirror imaging options, a built-in character generator, and defective pixel collection for up to 256 points. Power efficiency is assured with a +12 VDC typical input and consumption under 3.2 W. The Omron STCHD213DVCS excels in industrial, scientific, and security applications where precision imaging is paramount.
Features:
- 1/2.8" SONY IMX291 CMOS Sensor with 1080p HD resolution
- Delivers up to 60 fps with rolling shutter technology
- DVI output (via HDMI) supporting multiple HD resolutions
- Low-light performance with 0.4 Lux minimum illumination @ F1.4
- Configurable shutter speeds (1/33,750 seconds to 2.12 seconds)
- Power-efficient operation with <3.2 W consumption at +12 VDC
- UART communication for advanced control and customization
Applications:
- Direct-connect Monitor
- Inspection
- Microscopy
- Medical Imaging
| Image Sensor | 1/2.8" 2M Progressive Color CMOS (SONY: IMX291) |
| Shutter Type | Rolling Shutter |
| HD Active Picture Elements | 1,920 (H) x 1,080 (V) |
| Cell Size | 2.9 (H) x 2.9 (V) µm |
| Sync. System | Internal |
| Video Output | DVI 1.0 conformity RGB 1080p60 / 1080p59.94 / 1080p50 / 1080p30 / 1080p25 / 1080i60 / 1080i59.94 / 1080i50 / 720p60 / 720p59.94 / 720p50 / Auto |
| Minimum Scene Illumination | 0.4 Lux (Maximum Gain) @ F1.4 |
| Camera Functions | ALC, AEE (auto exposing), AGC configurable via UART (Default: ALC On) |
| Shutter Speed | AEE or fixed exposure time (1/33,750 to 2.12 seconds) via UART |
| Gain | AGC or fixed gain selectable (0 to 45 dB) |
| Gamma | Manual or 8 presets (0.3 to 1.0) via UART |
| White Balance | Auto, Manual, or Push-to-set selectable via UART |
| Mirror Image | Horizontal flip, Vertical flip, 180-degree rotation, or Normal |
| Line Generator | Four lines (2 horizontal, 2 vertical, all colors) |
| Circle Generator | One circle (default: disable) |

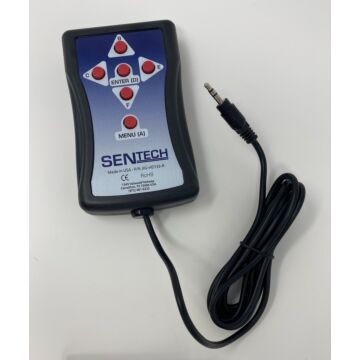

| Communication | +3.3V UART via 3.5mm stereo jack (115,200 to 9,600 bps) |
| Character Generator | Built-in character generation via UART |
| Defective Pixel Collection | Supports up to 256 points |
| Power Input | +9 to +15 VDC (Typical: +12 VDC) |
| Power Consumption | Less than 3.2 W |
