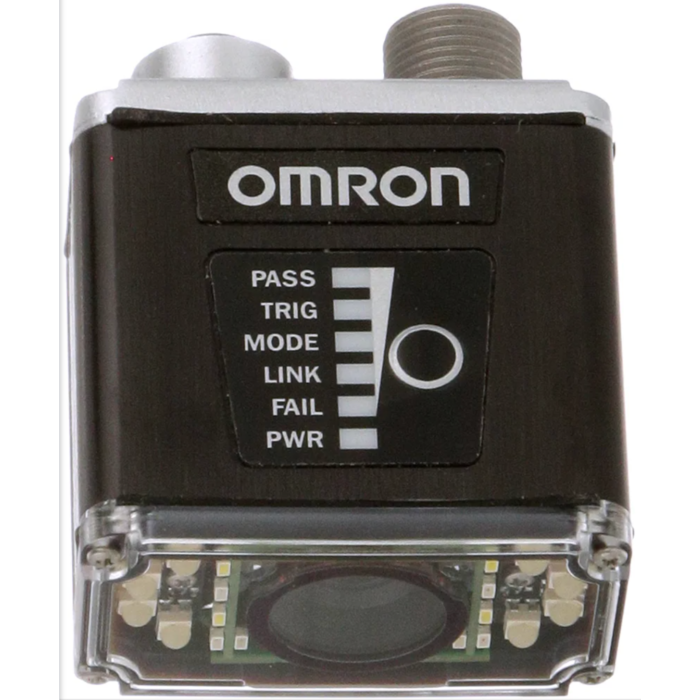

Omron MicroHAWK V430-F Industrial Ethernet Autofocus Barcode Reader
Revolutionize Your Industrial Barcode Reading with Omron MicroHAWK V430-F
The Omron MicroHAWK V430-F Industrial Ethernet Autofocus Barcode Reader represents the pinnacle of innovation in the machine vision and industrial sector. As the next evolution of the widely acclaimed ID-40 model, the V430-F offers unparalleled versatility and performance in an ultra-compact form. Measuring just 44.5 mm x 44.5 mm x 25.4 mm, this IP65/67-rated device is designed to withstand the harshest industrial environments while delivering exceptional decoding performance for both 1D and 2D barcodes, as well as Direct Part Mark (DPM) codes.
Equipped with advanced features such as liquid lens autofocus, high-speed Ethernet connectivity, and optional outboard LED lighting, the V430-F ensures precise and reliable code reading at various distances and lighting conditions. Its sensor resolutions range from 0.3MP to 5MP, providing flexibility to meet diverse application needs. The WebLink browser-based setup and monitoring facilitate straightforward configuration and integration into existing systems.
Aegis Electronic Group Inc. offers the MicroHAWK V430-F to address a wide array of industrial applications, including manufacturing automation, quality inspection, and inventory management. This smart camera is ideal for industries requiring robust, compact, and highly capable barcode readers. Enhance your operational efficiency and accuracy with the Omron MicroHAWK V430-F – the ultimate solution for industrial barcode reading challenges.
Features:
- Smallest IP65/67-rated barcode reader
- High-speed Ethernet, Serial RS-232
- Advanced 1D/2D/DPM decoding
- Liquid lens autofocus
- Optional outboard LED lighting
- WebLink browser-based setup and monitoring
- Sensor resolutions from 0.3MP to 5MP
- Rugged, ultra-compact design
- Ethernet TCP/IP, EtherNet/IP, PROFINET compatibility
- Passive Power over Ethernet (PoE)
Applications:
- Manufacturing automation
- Quality inspection
- Inventory management
- Packaging and labeling
- Pharmaceutical tracking
- Automotive part tracking
- Food and beverage processing
- Aerospace component identification
- Electronics assembly
- Logistics and warehousing
| Symbologies *1 | 1D Symbologies - Code 39, Code 128, BC412, Interleaved 2 of 5, UPC/EAN, Codabar, Code 93, Pharmacode, PLANET, Postnet, Japanese Post, Australian Post, Royal Mail, Intelligent Mail, KIX 2D Symbologies - Data Matrix (ECC 0-200), QR Code, Micro QR Code, Aztec Code, DotCode Stacked Symbologies - PDF417, MicroPDF417, GS1 Databar (Composite and Stacked) |
| Reading Performance *2 | Number of Reading Digits - No Upper Limit (depending on bar width and reading distance) Aiming Light - Two Blue LEDs Illumination - V430-F□□□□03M-□□□ - Outer LEDs: 8 Red or White V430-F□□□□12M-□□□ - Outer LEDs: 8 Red or White; 24 Red or White for V430-F□□□□12M-R□□ V430-F□□□□50C-□□□ - Outer LEDs: 8 White Reading Distance / Field of View - Refer to Field of View Charts for details. Pitch Angle (α) *3 - ±30° Skew Angle (β) *3 - ±30° Tilt Angle (γ) *3 - ±180° |
| Image Capture | Focus - Liquid Lens Autofocus or Fixed Focus (Wide = 5.2 mm, Medium = 7.7 mm, Narrow = 16 mm, L = 16 mm) Resolution - V430-F□□□□03M-□□□ - 752 (H) x 480 (V) V430-F□□□□12M-□□□ - 1280 (H) x 960 (V) V430-F□□□□50C-□□□ - 2592 (H) x 1944 (V) Color/Monochrome - Monochrome CMOS V430-F□□□□50C-□□□ - Color CMOS Shutter - Global Shutter V430-F□□□□50C-□□□ - Rolling Shutter Frames per Second - V430-F□□□□03M-□□□ - 60 fps V430-F□□□□12M-□□□ - 42 fps V430-F□□□□50C-□□□ - 5 fps Exposure - 50 to 100,000 μs |
| Image Logging | FTP |
| Trigger | External Trigger (Edge or Level), Communication Trigger (Ethernet, RS-232C) |
| I/O Specifications | Input Signals - Trigger Input; New Master: Bi-Directional, Optoisolated, 4.5-28 V rated (10 mA @ 28 VDC) Output Signals - 3 Signals : Bi-Directional, Optoisolated, 1-28V rated, (ICE < 100 mA at 24VDC, current limited by user) |
| Communication | Connectivity - RS-232C, Ethernet TCP/IP, EtherNet/IP™, PROFINET Ethernet Specifications - 100BASE-TX / 10BASE-T |
| Indicator LEDs | PASS (Green), TRIG (Amber), MODE (Amber), LINK (Amber), FAIL (Red), PWR (Green) |
| Power Supply Voltage | DC24V (Ambient Voltage Range: DC5~30V) *5 |
| Current Consumption | 0.18 A at 24 VDC (max.) |
| Environmental Immunity *5 | Ambient Temperature Range - Operating: 0 to 45° C Storage: -50 to 75°C (No Icing or Condensation) Ambient Humidity Range - Operating and Storage: 5% to 95% (Non-Condensing) Ambient Atmosphere - No Corrosive Gases Vibration Resistant (Destructive) - Sine Vibration: 10 Hz to 55 Hz, 0.35 mm displacement, 20 cycles/axis. Random Vibration: 20 Hz to 2000 Hz, 6.295 Grms, 30 min/axis Shock Resistance (Destructive) - 50G, 11 ms, sawtooth profile. 3X in each X, Y, Z axis Degree of Protection - IEC 60529 IP65 and IP67 |
| Weight | Main Body Only - Approx. 68 g Packaging Weight - Approx. 68 g |
| Dimensions | Main Body Dimensions: 44.5 (W) × 44.5 (D) × 25.4 (H) mm Packaging Dimensions: 170 (W) × 117 (D) × 86 (H) mm |
| Accessories | ReadMeFirst, CE Compliance Sheet |
| LED Safety Standard | IEC 62471-1: 2006 Risk-Exempt Group |
| EMC/Safety | EN 55024:2010, EN 55032:2015 + AC:2016 FCC Part 15, Subpart B (Class B) UL60950-1 BIS, RCM, KC, EAC, BSMI |
| Materials | Case: Aluminum Diecast, Alumite (Black) Reading Window: Acrylic |
| Software | WebLink |
