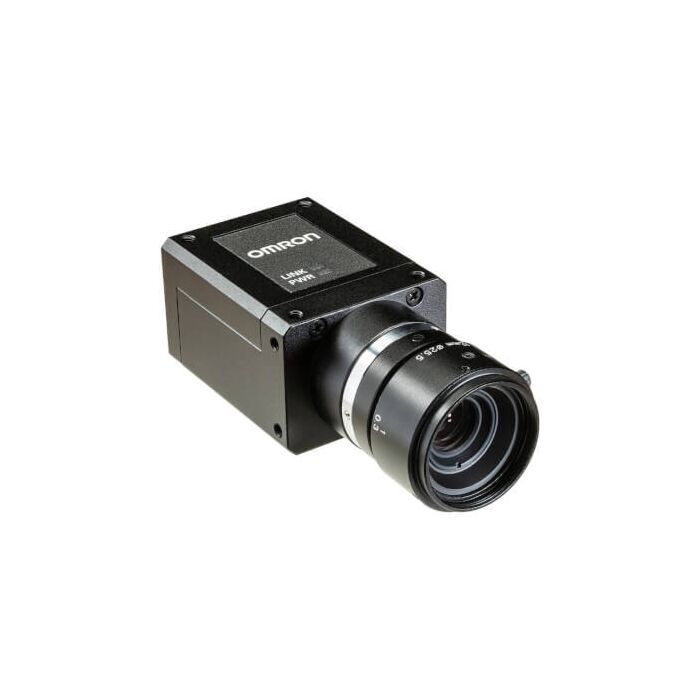

Omron F440-FXXXY50M-NNS 5-Megapixel C-Mount Smart Camera Angle View

Omron F440-FXXXY50M-NNS 5-Megapixel C-Mount Smart Camera

Omron F440-FXXXY50M-NNV 5-Megapixel C-Mount Smart Camera

User-Configurable Smart Camera
SKU
Omron F440-FXXXY50M-NNV

The F440-F C-Mount Smart Camera with AutoVISION 5.3.0 user interface is a highly configurable smart camera with a 35 frame-per-second 5 megapixel monochrome global shutter sensor. The C-mount lens, external lighting options, and 5 megapixel sensor optimize the F440-F for virtually any machine vision applications.

The F440-F is pin-compatible with the MicroHAWK F430-F smart camera, ensuring a clear upgrade path with all the same wiring accessories.

AutoVISION – the intuitive setup tool for the F440-F – allows you to configure highly complex applications quickly and easily.

Features:

  • 5 MP monochrome global shutter sensor
  • 35 FPS image acquisition
  • Higher FPS using pixel binning and region of interest (ROI) modes
  • C-mount lens-compatible
  • External lighting-compatible (dedicated strobe output)
  • Smallest smart camera in its class
  • IP40-rated
  • Support for Digital I/O, RS-232, Ethernet TCP/IP, EtherNet/IP™, and PROFINET communications
  • PoE (Power over Ethernet) or direct 24V


Applications:

  • Industrial
  • Machine Vision
  • Inspection
  • Barcode Scanning
  • Product Scanning
Symbologies *1 1D Symbologies - Code 39, Code 128, BC412, Interleaved 2 of 5, UPC/EAN, Codabar, Code 93, Pharmacode, PLANET, Postnet, Japanese Post, Australian Post, Royal Mail, Intelligent Mail, KIX
2D Symbologies - Data Matrix (ECC 0-200), QR Code, Micro QR Code, Aztec Code, DotCode, DMRE
Stacked Symbologies - PDF417, MicroPDF417, GS1 Databar (Composite and Stacked)
Reading Performance *2 Reading Distance / Field of View - Based on Lens Selection and Code Size
Pitch Angle (α) *3 - ±30°
Skew Angle (β) *3 - ±30°
Tilt Angle (γ) *3 - ±180°
Vision Tools Locate, Decode, Optical Character Recognition (OCR), Count, Presence/Absence, Measure, Match String, String Format, Logic, Optical Character Verification (OCV), Symbol Quality Verification
Image Resolution, Pixel Size - 2464 (H) x 2056 (V) – 3.45 μm Pixel Size
Color / Monochrome - Monochrome CMOS
Shutter - Global Shutter
Frames per Second - 35 FPS for 5 MP
Exposure - 16 μs to 400 msec
Image Logging FTP
Trigger External Trigger (Edge or Level), Communication Trigger (Ethernet, RS-232C)
Trigger to Strobe Latency + Jitter 320 μs + 65 μs
I/O Specifications Input Signals - Trigger Input, Input 1, and Default – Bi-Directional Inputs, Optoisolated, 4.5 – 28 V rated (10 mA @ 28 VDC)
Output Signals - 3 Signals: Bi-Directional, Optoisolated, 1 – 28 V rated, (ICE < 100 mA at 24 VDC, current limited by user)
Communication Connectivity - RS-232C, Ethernet TCP/IP, EtherNet/IP™, PROFINET
Ethernet Specifications - 1000BASE-T
Indicator LEDs LINK (Amber), PWR (Green)
Power Supply Voltage Power over Ethernet (IEEE 802.3af) / 24 VDC +/- 20%, External Input via IO *4
Current Consumption PoE (44-57 VDC): 0.10 A or 24 VDC: 0.15 A
Environmental Immunity *5 Ambient Temperature Range - Operating: 0 to 40° C; Storage: –25 to 65° C (No Icing or Condensation)
Ambient Humidity Range - Operating and Storage: 25% to 85% (Non-Condensing)
Ambient Atmosphere - No Corrosive Gases
Vibration Tolerance - Oscillation Frequency: 10 to 150 Hz; Half Amplitude: 0.35 mm; Vibration Direction: X/Y/Z; Sweep Time: 8 Minutes/Count; Sweep Count: 10 Times
Shock Resistance (Destructive) - Impact Force: 150 m/s2, Test Direction: 6 Directions, 3 Times Each (Up / Down, Front / Behind, Left / Right)
Degree of Protection - IEC 60529 – IP40
Weight Main Body Only - 103.4 g
Packaging Weight - 219.1 g
Dimensions 40 mm (W) × 61 mm (D) × 30 mm (H)
Note: Depth measurement excludes connector
Accessories ReadMeFirst, CE Compliance Sheet, Protocol Support Table
EMC/Safety FCC part 15 Subpart B, ICES-003, EN 55032, EN 55035, AS/NZS CISPR32, CNS 13438, KN32, KN35, UL 62368-1, UL 60950-1
FCC, UL, CE, UKCA, RCM, KC *6
Materials Aluminum Diecast, Alumite (Black)
Software AutoVISION
