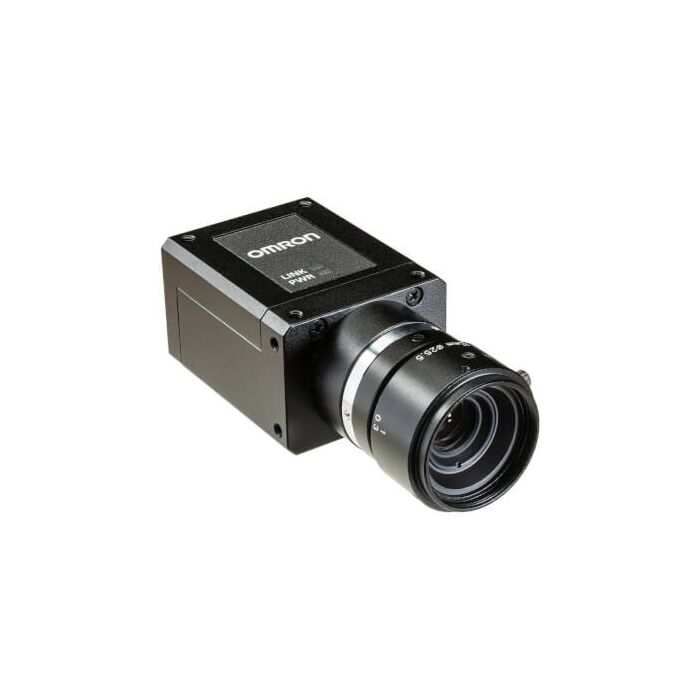

Omron F440-FXXXY50M-NNS 5-Megapixel C-Mount Smart Camera
User-Configurable Smart Camera
$3,366.18
Please call for pricing
SKU
Omron F440-FXXXY50M-NNS
The F440-F C-Mount Smart Camera with AutoVISION 5.3.0 user interface is a highly configurable smart camera with a 35 frame-per-second 5 megapixel monochrome global shutter sensor. The C-mount lens, external lighting options, and 5 megapixel sensor optimize the F440-F for virtually any machine vision applications.
The F440-F is pin-compatible with the MicroHAWK F430-F smart camera, ensuring a clear upgrade path with all the same wiring accessories.
AutoVISION – the intuitive setup tool for the F440-F – allows you to configure highly complex applications quickly and easily.
Features:
- 5 MP monochrome global shutter sensor
- 35 FPS image acquisition
- Higher FPS using pixel binning and region of interest (ROI) modes
- C-mount lens-compatible
- External lighting-compatible (dedicated strobe output)
- Smallest smart camera in its class
- IP40-rated
- Support for Digital I/O, RS-232, Ethernet TCP/IP, EtherNet/IP™, and PROFINET communications
- PoE (Power over Ethernet) or direct 24V
Applications:
- Industrial
- Machine Vision
- Inspection
- Barcode Scanning
- Product Scanning
| Symbologies *1 | 1D Symbologies - Code 39, Code 128, BC412, Interleaved 2 of 5, UPC/EAN, Codabar, Code 93, Pharmacode, PLANET, Postnet, Japanese Post, Australian Post, Royal Mail, Intelligent Mail, KIX 2D Symbologies - Data Matrix (ECC 0-200), QR Code, Micro QR Code, Aztec Code, DotCode, DMRE Stacked Symbologies - PDF417, MicroPDF417, GS1 Databar (Composite and Stacked) |
| Reading Performance *2 | Reading Distance / Field of View - Based on Lens Selection and Code Size Pitch Angle (α) *3 - ±30° Skew Angle (β) *3 - ±30° Tilt Angle (γ) *3 - ±180° |
| Vision Tools | Locate, Decode, Optical Character Recognition (OCR), Count, Presence/Absence, Measure, Match String, String Format, Logic, Optical Character Verification (OCV), Symbol Quality Verification |
| Image | Resolution, Pixel Size - 2464 (H) x 2056 (V) – 3.45 μm Pixel Size Color / Monochrome - Monochrome CMOS Shutter - Global Shutter Frames per Second - 35 FPS for 5 MP Exposure - 16 μs to 400 msec |
| Image Logging | FTP |
| Trigger | External Trigger (Edge or Level), Communication Trigger (Ethernet, RS-232C) |
| Trigger to Strobe Latency + Jitter | 320 μs + 65 μs |
| I/O Specifications | Input Signals - Trigger Input, Input 1, and Default – Bi-Directional Inputs, Optoisolated, 4.5 – 28 V rated (10 mA @ 28 VDC) Output Signals - 3 Signals: Bi-Directional, Optoisolated, 1 – 28 V rated, (ICE < 100 mA at 24 VDC, current limited by user) |
| Communication | Connectivity - RS-232C, Ethernet TCP/IP, EtherNet/IP™, PROFINET Ethernet Specifications - 1000BASE-T |
| Indicator LEDs | LINK (Amber), PWR (Green) |
| Power Supply Voltage | Power over Ethernet (IEEE 802.3af) / 24 VDC +/- 20%, External Input via IO *4 |
| Current Consumption | PoE (44-57 VDC): 0.10 A or 24 VDC: 0.15 A |
| Environmental Immunity *5 | Ambient Temperature Range - Operating: 0 to 40° C; Storage: –25 to 65° C (No Icing or Condensation) Ambient Humidity Range - Operating and Storage: 25% to 85% (Non-Condensing) Ambient Atmosphere - No Corrosive Gases Vibration Tolerance - Oscillation Frequency: 10 to 150 Hz; Half Amplitude: 0.35 mm; Vibration Direction: X/Y/Z; Sweep Time: 8 Minutes/Count; Sweep Count: 10 Times Shock Resistance (Destructive) - Impact Force: 150 m/s2, Test Direction: 6 Directions, 3 Times Each (Up / Down, Front / Behind, Left / Right) Degree of Protection - IEC 60529 – IP40 |
| Weight | Main Body Only - 103.4 g Packaging Weight - 219.1 g |
| Dimensions | 40 mm (W) × 61 mm (D) × 30 mm (H) Note: Depth measurement excludes connector |
| Accessories | ReadMeFirst, CE Compliance Sheet, Protocol Support Table |
| EMC/Safety | FCC part 15 Subpart B, ICES-003, EN 55032, EN 55035, AS/NZS CISPR32, CNS 13438, KN32, KN35, UL 62368-1, UL 60950-1 FCC, UL, CE, UKCA, RCM, KC *6 |
| Materials | Aluminum Diecast, Alumite (Black) |
| Software | AutoVISION |
