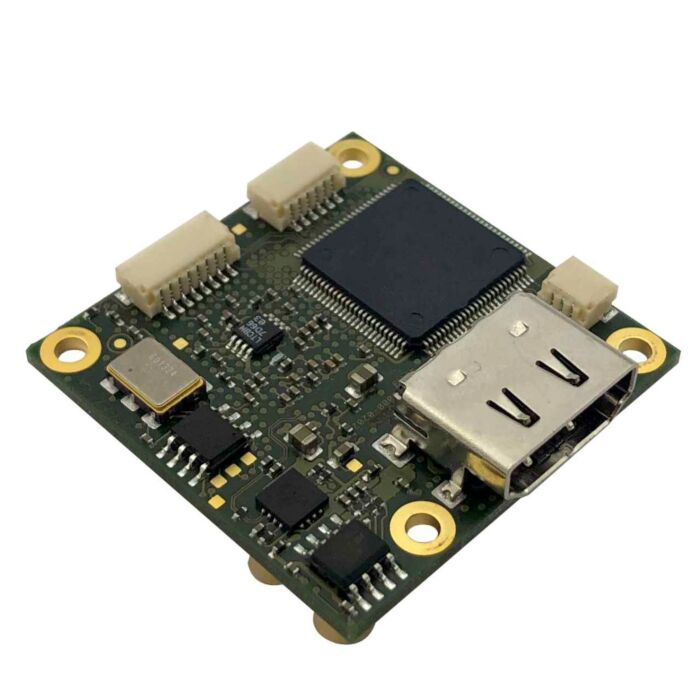

NA1012-ET Compact HDMI to 3G/HD-SDI Nano Board Converter - Extended Operating Temperature Range

The NA1012-ET HDMI to 3G/HD-SDI Converter is a compact, high-performance module designed for converting HDMI signals into dual SDI outputs for use in industrial, medical, and professional video applications. It supports full-HD video formats up to 1920x1080p at 60fps, including 1080p, 1080i, and 720p resolutions, ensuring seamless video transmission with superior image quality. The converter processes input signals in RGB444, YCbCr444, and YCbCr422 color formats and offers dual SDI outputs via 75-ohm MCX connectors, which support bit rates of 1.485 Gbps, 2.97 Gbps, and their respective fractional rates (1.485/1.001 Gbps, 2.97/1.001 Gbps), in full compliance with SMPTE292M and SMPTE424M standards. The native signal processing ensures no image scaling or format conversion, preserving the integrity of the original HDMI video signal.

With an extended operating temperature range of -25°C to +70°C and power input capabilities ranging from 5V to 18V DC, the NA1012-ET is highly reliable even in harsh environments. Its low power consumption of 2.3W at 12V DC makes it energy-efficient, ideal for space-constrained applications. The small form factor of just 38mm x 38mm makes it suitable for embedded systems, and its wide operating humidity range of 20% to 80% ensures dependable performance across various settings. This converter is fully RoHS compliant and UL/UR certified, ensuring the highest standards of quality and safety for demanding industrial, security, and professional video applications.

Features:

• HDMI 1.4a video input
• Resolution up to 1920x1080p @ 60fps
• RGB444, YCbCr444 and YCbCr422 input format support
• Two SDI outputs supporting bit rates due to SMPTE292M and SMPTE424M,1.485 Gbps, 1.485/1.001 Gbps, 2.97 Gbps,  2.97/1.001 Gbps
• Supported HDMI/DVI input video formats
• 1920x1080i at 50/59.94/60
• 1920x1080p at 50/25/24/59.94/29.97/23.98/60/30
• 1280x720p at 50/ 59.94/60
• Video output connectors: 75 ohms MCX jacks
• Native video signal processing and encoding only. No image scaling, no format conversion.
• Power input + 5V up to +18V DC regulated
• PCB dimensions 38mm x 38mm

Applications:

• Integrated, very small sized HDMI to SDI conversion
• Applications having -25C to +85C extended temperature range requirements
• Industrial
• Medical
• Security
• Law enforcement
• Professional video
