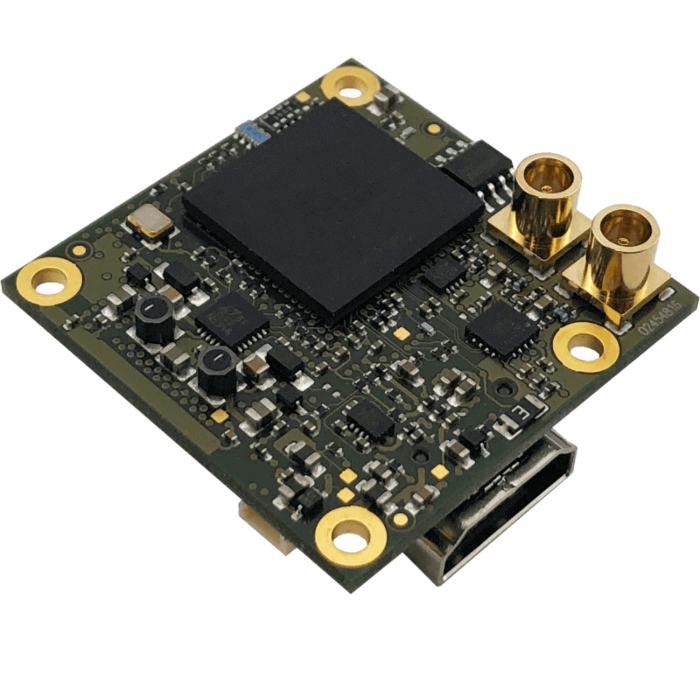

NA1011-ET Compact 3G/HD-SDI to HDMI Nano Board Converter - Extended Operating Temperature Range

The NA1011-ET 3G/HD-SDI to HDMI Nano Converter is engineered for professional video applications, providing robust and efficient signal conversion from 3G/HD-SDI to HDMI with no image scaling or format conversion. It supports a wide range of input and output video formats, including 1920x1080i/p at 50/59.94/60fps and 1280x720p at 50/59.94/60fps, ensuring compatibility with industry-standard video resolutions. The converter features a 3G/HD-SDI input with a bit rate range of 1.485 Gbps, 1.485/1.001 Gbps, 2.97 Gbps, and 2.97/1.001 Gbps (SMPTE292M and SMPTE424M Level A), along with a reclocked SDI loop-out, ensuring signal integrity for high-quality transmission.

With an RGB444 HDMI output, the NA1011-ET delivers precise, high-fidelity color transmission, supporting resolutions up to 1920x1080p at 60Hz. The device operates within an extended temperature range of -25°C to +70°C and is engineered to endure in environments with 20% to 70% humidity. It accepts 5V to 18V DC power and consumes only 3W under typical 1080p50 conditions, making it ideal for applications where space is limited and reliability is paramount. Its compact 38mm x 38mm PCB ensures a minimal footprint, while the unit’s RoHS compliance guarantees it meets environmental standards.

Features:

• One 3G/HD-SDI input supporting the following bit rates due to SMPTE292M and SMPTE424M (level A)
• 1.485 Gbps, 1.485/1.001 Gbps
• 2.97 Gbps, 2.97/1.001 Gbps
• 3G/HD-SDI loop out with reclocking
• HDMI RGB444 video output
• Supported input and output video formats
• 1920x1080i at 50/59.94/60
• 1920x1080p at 50/25/24/59.94/29.97/23.98/60/30
• 1280x720p at 50/ 59.94/60
• SDI input/output connectors: 75 ohms MCX jacks
• Native video signal processing and encoding only. No image scaling, no format conversion.
• Power input + 5V up to +18V DC regulated
• PCB dimensions 38mm x 38mm

Applications:

• Integrated, very small sized SDI to HDMI conversion
• Applications having -25C to +85C extended temperature range requirements
• Industrial
• Medical
• Security
• Law enforcement
• Professional video
