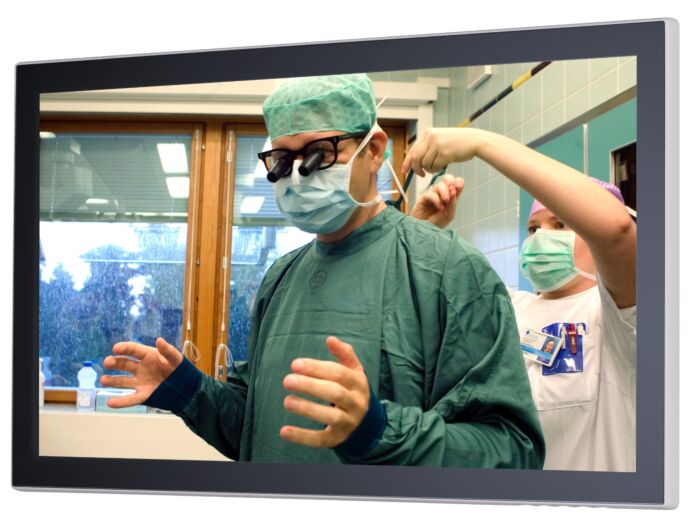

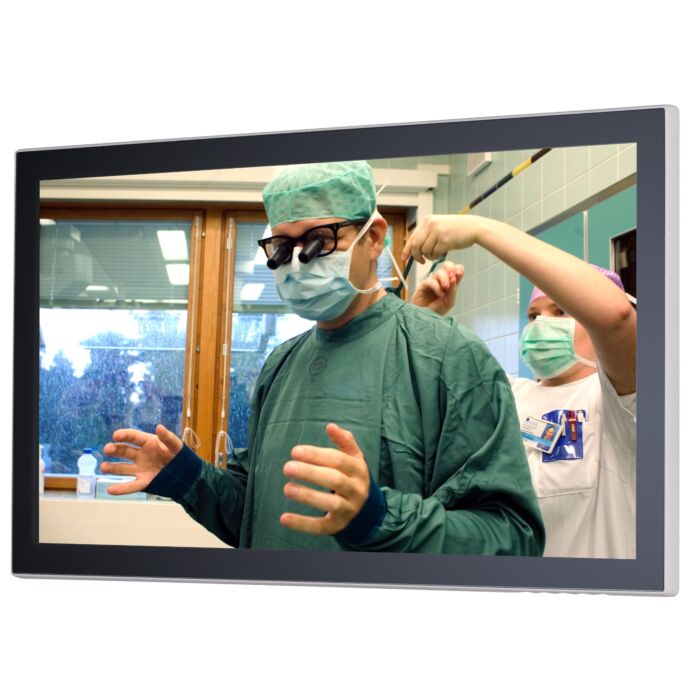

Tru-Vu MMZBTP-21.5G-X (MMZBTP21.5GX) Medical-Grade Touch Screen LCD Monitor
SKU
MMZBTP-21.5G-X
$1,730.00
Quick Overview
*Please note this product is subject to tariff fee*
The TRU-Vu MMZBTP-21.5 G-X is a 21.5” Medical-Grade Projected Capacitive Touch Screen monitor. It conforms to UL 60601-1 Edition 3.1, and IEC 60601-1 4th Edition. The projected capacitive touch technology enables multi-touch; it can be activated via dual fingers that are exposed, or in a surgical glove. The screen is unaffected by dirt, grease or moisture on the glass surface.The sleek edge-to-edge glass front face, without a raised edge bezel, is both stylish and functional: it is easy to clean and eliminates contamination build-up under a bezel, as with standard-type housings. The MMZBTP-21.5G-X monitor is ideal for hospital operating rooms, medical carts, fluoroscopy, endoscopy, OEM medical systems, PACS and other medical applications.
Features:
Applications:
| Model | MMZBTP-21.5G-X |
| LCD Panel | 21.5” Color AHVA; LED Backlights |
| Touch Screen | Projected Capacitive |
| Number of Touch Points | 10 |
| Touch Interface | USB |
| Resolution | 1920 x 1080 (FullHD) |
| Viewable Area | 18.76” W x 10.55” H (476.6 x 268.1 mm) |
| Pixel Pitch | 0.248mm |
| Display Colors | 16.7 Million |
| Aspect Ratio | 16:9 Widescreen |
| Brightness | 350 nits |
| Contrast Ratio | 1,000:1 |
| Viewing Angle | 178° (H) x 178° (V) |
| Response Time | 22 msec Trf |
| Control | OSD (On-Screen Display) via Pushbuttons |
| Video Inputs | DVI, HDMI, DisplayPort |
| Supported Resolutions | 640 x 350 up to 1920 x 1080 |
| Audio | Dual Rear Speakers |
| Power Requirement | 12VDC/90-240VAC via External Medical-Grade Power Supply |
| Power Consumption | 30W |
| Plug & Play | DDC 1/2B |
| Enclosure | White ABS: Zero-Bezel Design; IP22 |
| Mounting | 100mm x 100mm Rear VESA Holes; Optional Tabletop Base |
| Operating Temperature | 32° to 122° F (0° x 50° C) |
| Humidity | 5-90% RH |
| Dimensions | 20.68” (W) x 12.61” (H) x 2.20” (D) (525.3 x 320.30 x 55.8mm) |
| Weight | 9.4 lbs. (4.26kg) |
| Warranty | 3 Years |
