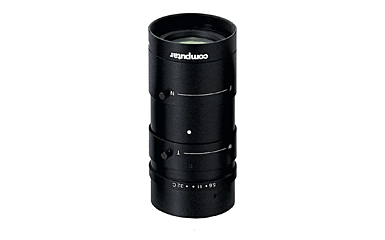

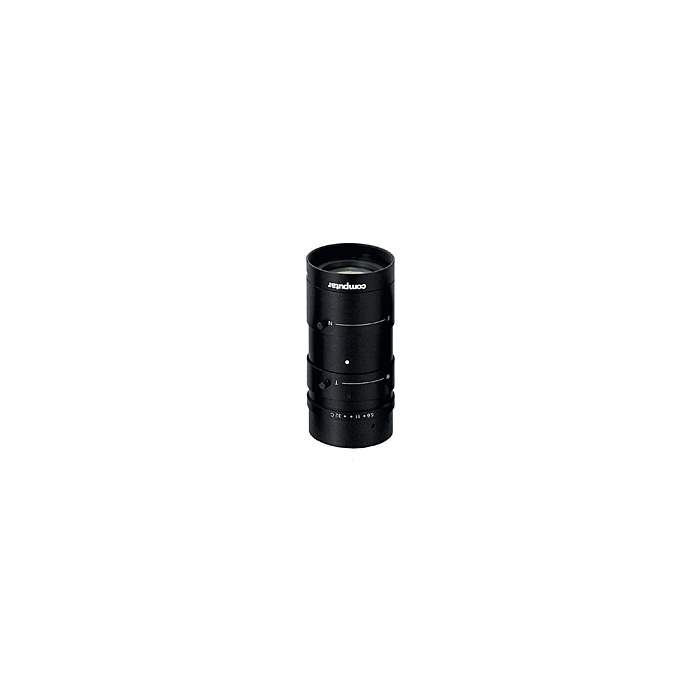

CBC-Computar MLH-10X
1/2" 13-130mm 10X Close-up Manual Zoom, F5.6 - F32C Range, Manual Iris C-Mount Lens
NDAA Compliant
SKU
MLH-10X
$325.00
Quick Overview
10X Manual Zoom Lens | 13-130mm Focal Length | C-Mount | Manual Iris (F5.6 - F32C) | Max. Magnification 0.084mm - 0.84mm | Supports 1/2", 1/3", 1/4" CCD Sensors | Effective Aperture Ø30mm Front, Ø6.6mm Rear | Back Focal Length 23.29mm | Flange Back Length 17.526mm | Dimensions 48mm x 98.5mm | Weight 260g | Operating Temp -20°C to +50°C
Computar's MLH10X Manual Zoom Lenses provide manual adjustment of focal length, iris and focus. For use where a variable angle of view is required. Main applications for this lens include inspection, machine vision and robotics.
Features:
- 10X Manual Zoom (13-130mm focal length)
- C-Mount Compatibility for machine vision systems
- Manual Iris (F5.6 - F32C), Focus & Zoom for precise adjustments
- Max. Magnification: 0.084mm - 0.84mm
- Supports 1/2", 1/3", and 1/4" CCD sensors
- Wide Operating Temperature: -20°C to +50°C
- Compact & Lightweight: 48mm x 98.5mm, 260g
Applications:
- Machine Vision & Inspection
- Robotics & Automation
- Precision Imaging Systems
- Industrial & Scientific Analysis
| Max. Magnification | 0.084mm - 0.84mm | |||
| Max. Aperture Ratio | 1:5.6 | |||
| Max. Image Format | 6.4mm x 4.8mm (Ø8mm) | |||
| Operation Range | Iris | F5.6 - F32C | ||
| Focus | 0.15m - 0.45m | |||
| Control | Iris | Manual | ||
| Focus | Manual | |||
| Zoom | Manual | |||
| Object Size (1/2 type CCD) | Working Distance | 152.4mm(6") | 92.2mm - 9.6mm(D) | 74.6mm - 7.8mm(H) |
| 457.2mm(18") | 349.4mm - 34.6mm(D) | 279.2mm - 28.0mm(H) | ||
| Object Size (1/3 type CCD) | Working Distance | 152.4mm(6") | 70.1mm - 7.3mm(D) | 56.4mm - 5.9mm(H) |
| 457.2mm(18") | 261.6mm - 26.4mm(D) | 208.8mm - 21.2mm(H) | ||
| Object Size (1/4 type CCD) | Working Distance | 152.4mm(6") | 53.0mm - 5.6mm(D) | 42.4mm - 4.4mm(H) |
| 457.2mm(18") | 208.8mm - 21.2mm(D) | 156.2mm - 16.0mm(H) | ||
| Angle of View | D | 1/2 type | 21.6° - 4.5° | 17.0° - 3.3° |
| H | 1/3 type | 18.0° - 3.6° | 13.8° - 2.7° | |
| V | 1/4 type | 13.0° - 2.5° | 10.6° - 2.0° | |
| Effective Lens Aperture | Front: Ø30mm | Rear: Ø6.6mm | ||
| Back Focal Length | 23.29mm | |||
| Flange Back Length | 17.526mm | |||
| Mount | C-Mount | |||
| Dimensions | 48mm x 98.5mm | |||
| Weight | 260g | |||
| Operating Temperature | -20C - +50C | |||
Frequently Asked Questions
What is the zoom capability of the MLH-10X lens?
It offers 10X manual zoom with a focal length range of 13–130mm for variable angle of view applications.
Which camera sensors is this lens compatible with?
The lens supports 1/2", 1/3", and 1/4" CCD sensors with a standard C-mount connection.
What are the iris and aperture specifications?
Manual iris control ranges from F5.6 to F32C with a maximum aperture ratio of 1:5.6.
What is the working distance range for this lens?
The focus operates between 0.15m and 0.45m (150mm to 450mm) from the subject.
Can this lens withstand industrial environments?
Yes, it operates reliably in temperatures from -20°C to +50°C and weighs only 260g for easy industrial integration.
