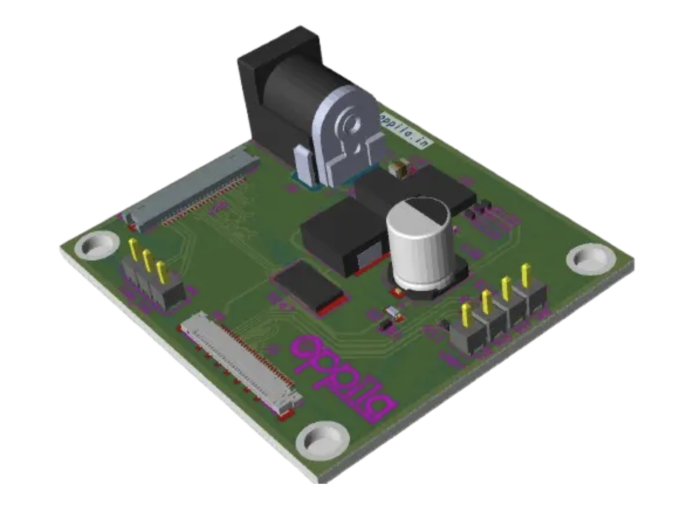

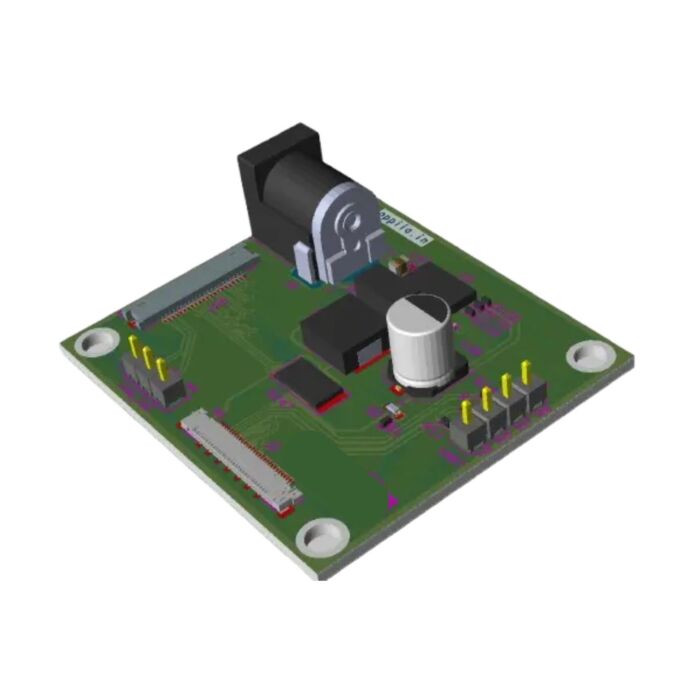

MIPI to MIPI CSI-2 Bridge Board with 4-Lane CSI Interface Adapter | NVIDIA & Raspberry 5 Pi Compatible

The MIPI to MIPI CSI-2 Bridge Board is a specialized interface adapter designed to simplify the integration of MIPI CSI-2 camera modules with embedded processing platforms. Unlike traditional conversion boards, this solution focuses on signal conditioning, lane adaptation, and connector compatibility, enabling reliable high-speed communication between cameras and host systems.

Engineered for use with platforms such as the Jetson Orin Nano Super Developer Kit, this board ensures stable CSI-2 signal transmission while resolving common integration challenges such as connector mismatch, cable constraints, and signal degradation.

Designed for both rapid prototyping and production deployment, the board provides a compact and reliable interface for robotics, UAVs, industrial automation, and embedded AI vision systems.

What This Board Solves (CSI-2 Integration Challenges)

Many MIPI camera integrations fail due to:

• Connector incompatibility (FPC vs coax vs custom pinouts)
• Signal degradation over distance
• Lane mismatch between camera and host
• Integration complexity with embedded platforms

This board solves those issues by acting as a CSI-2 interface bridge and signal conditioner:

MIPI Camera → MIPI CSI-2 Bridge → Jetson / Embedded Platform

Enabling:

• Stable high-speed CSI-2 communication
• Flexible connector adaptation
• Reliable multi-lane signal transmission
• Faster system integration and prototyping

Jetson & Embedded Platform Compatibility

The MIPI CSI-2 bridge board is optimized for use with NVIDIA Jetson platforms, including:

• Jetson Orin Nano Super Developer Kit
• Jetson Orin Nano (4GB / 8GB)
• Jetson Orin NX
• Jetson AGX Orin
• Raspberry Pi platforms
• Other ARM-based embedded systems

By ensuring reliable CSI-2 signal integrity, the board enables direct camera integration with high-performance AI and vision processing systems.

Compatible MIPI CSI-2 Cameras

This adapter is designed for use with standard MIPI CSI-2 camera modules, including:

• Industrial MIPI cameras
• Embedded vision camera modules
• Machine vision CSI-2 cameras
• OEM camera modules with CSI-2 output

Compatible with multi-lane CSI-2 camera configurations (up to 4 lanes)

How the MIPI to MIPI CSI-2 Bridge Works

Signal Path:

1. Camera outputs MIPI CSI-2
2. Bridge conditions and adapts signal
3. Outputs stable CSI-2 to host platform
4. Jetson processes video via GPU

Key Functions:

• Signal conditioning for high-speed data integrity
• Lane alignment and stabilization
• Connector format adaptation (FPC, coax, etc.)

Key Features:

• MIPI CSI-2 signal adaptation and conditioning
• Supports up to 4-lane CSI-2 interfaces
• Data rates up to 2.5 Gbps per lane
• Connector adaptation (FPC / coaxial depending on configuration)
• Designed for Jetson and embedded platforms
• Plug-and-play CSI-2 integration
• Compact and lightweight embedded form factor
• Industrial operating temperature for harsh environments
• Supports both prototyping and production deployment

Applications:

• Robotics vision systems
• UAV and drone imaging platforms
• Industrial automation and inspection
• Embedded AI and edge computing
• Surveillance and security systems
• IoT vision devices
• Machine vision prototyping and development

Why Use a MIPI to MIPI CSI-2 Bridge Board

Even when both camera and host use CSI-2, integration challenges can arise. This board provides:

• Improved signal integrity for high-speed CSI-2
• Flexibility in connector and cable selection
• Reduced integration time for engineers
• Reliable operation in embedded environments
• Scalability for multi-camera systems
