Marshall Electronics V-1255-C/CS 450 Line High Resolution Color Board Camera
SKU
V-1255-C/CS

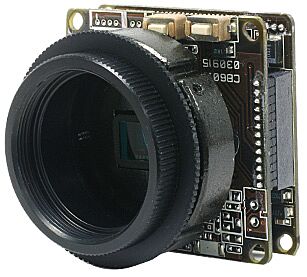

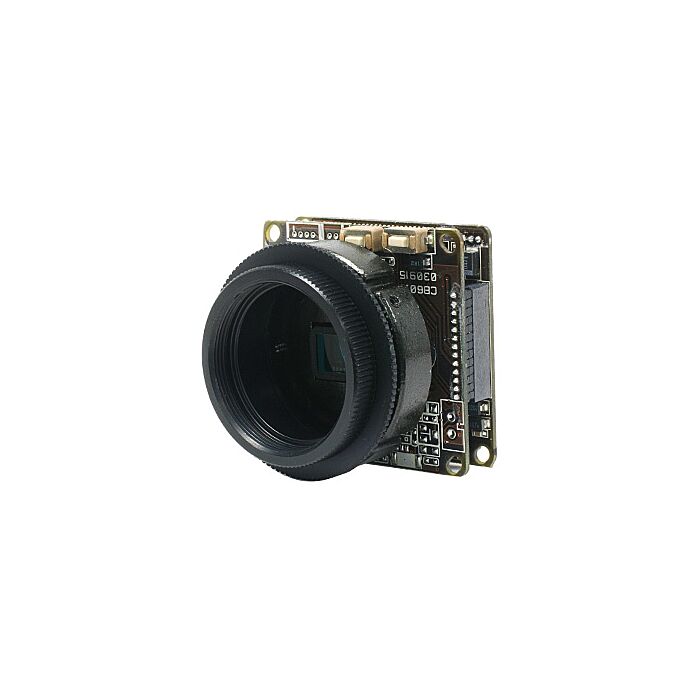

The V-1255-C/CS is a state-of-the-art miniature color camera. Using Current Digital Signal Processing, this camera offers 450 TV lines and measures only 1.5 inches square. This camera includes high-end broadcast features like push-button automatic gain control. Its' 3 lux light sensitivity makes an ideal camera for any surveillance application where lighting is less than ideal. The camera also has dip switches to control backlight compensation, automatic gain control, shutter speed and auto white balance.
Compatible with C/CS mount lenses, not included.
Features:
- 1/3 inch CCD color board camera
- 9.0V - 14.0VDC, 1.95W or less
- Compact - 1.5(L) × 1.5(W) × 1.75(D)
- Recommended power supply V-PS12
(not included)
Applications:
- Industrial
- Surveillance
- Security
| Image Sensor | 1/3" Interline CCD |
| Resolution | 450 Lines |
| Light Sensitivity | 3 Lux |
| Lens Mount | C/CS |
| S/N Ratio | 46dB or more (AGC Off) |
| Input Voltage | 12VDC, 2.2W max |
| Dimensions | 1.5" × 1.5" × 1.75" |
| Operational Temperature | -10°C to +55°C |
