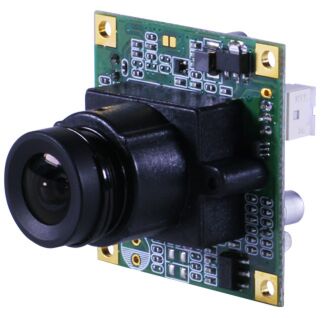

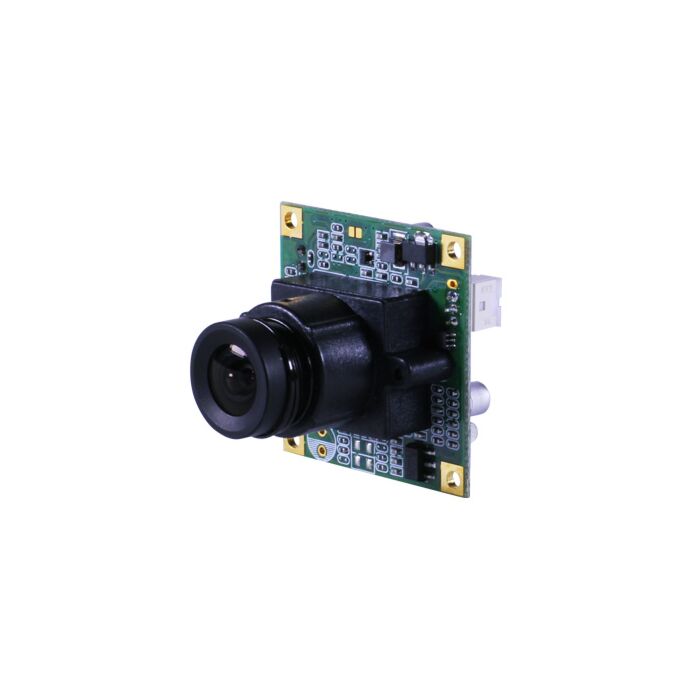

Marshall Electronics V-1217-PCB-3.7 420 TV Line CCD DSP B/W Camera
V-1217-PCB-3.7 is a special 1/3 CCD sensor single board B&W camera designed for a variety of OEM, industrial process, test and measurement, law enforcement, military, medical, scientific and security applications, RoHS compliant.
420 TV Line DSP CCD sensor, low light 0.5 lux @ F2.0 performance provides amazing Near IR performance in near zero lighting to 1,000nm when used with Marshall V-4700 Series miniature Visible / IR Corrected miniature lensing
The V-1217-PCB-3.7 comes with 3.7mm F2.0 92° HFOV miniature M12 lens. Camera is compatible with Marshall V-4300 CCTV Series, V-4400 HiRes Series, V-4700 Visible / IR Corrected to 1,000nm miniature lensing. C/CS lens mount version model V-1217-C/CS also available.
Featuring compact 32mm X 32mm board size, Auto Gain Control, Electronic Shutter, low 12 VDC 1.2W power input, light 17g weight enables one off to tens of thousands OEM product and application potential.
Features:
- 1/3" CCD Black & White
- 420 TV Lines
- Auto Gain Control
Applications:
- OEM
- Industrial Process
- Test and Measurement
- Law Enforcement
- Military
- Medical
- Scientific
- Security
| TV System | EIA |
| Image Sensor Device | 1/3" interline transfer CCD |
| Image Sensor Area | 4.8mm x 3.6mm |
| Horizontal Frequency | 15.734KHz |
| Vertical Frequency | 59.9Hz |
| Total Pixels | 542(H) x 492(V) |
| Scanning System | 525 lines, 60 fields/sec EIA |
| Resolution | 420 TV lines horizontal |
| Minimum Illumination | 0.5 lux at F2.0 |
| Electronic Shutter | Auto electronic shutter 1/60 to 1/100000 sec. continuous |
| S/N Ratio | > 48 dB |
| Video Signal Output | 1.0Vp-p composite video signal at 75 ohm load |
| Gamma Correction | 0.45 |
| Gain Control | Auto Gain Control |
| Power Supply | 12V DC ±10% 1.2W |
| Lens & View Angle | 3.7 mm F2.0 / 92° |
| Operating Temperature | 20° TO +50° C |
| Operational Humidity | Within 85%RH |
| Dimensions | 32(W) x 32(H) x 30(D) mm / 17g |
