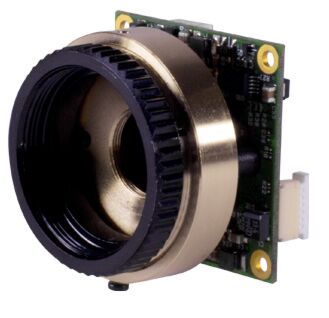

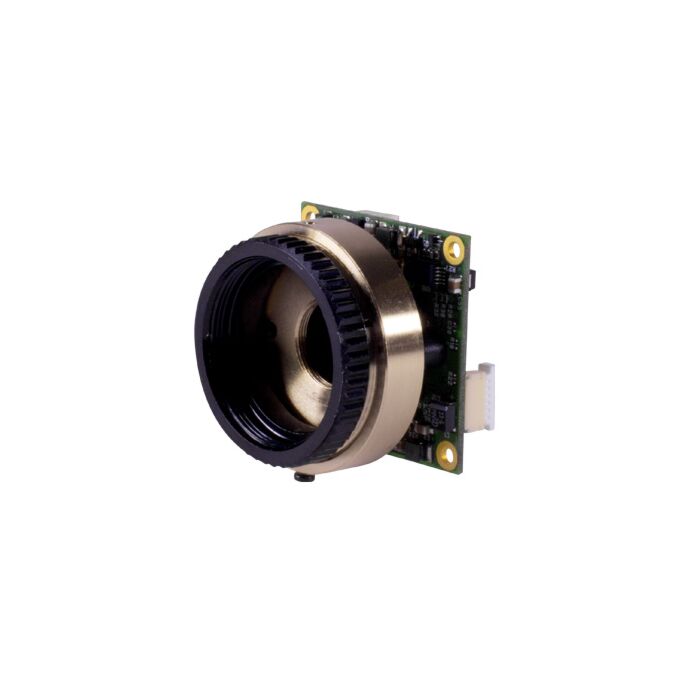

Marshall Electronics V-1217-C/CS 420 TV Line CCD DSP B/W Camera
SKU
V-1217-C/CS
V-1217-C/CS is a special 1/3 CCD sensor single board B&W camera designed for OEM, industrial process, test and measurement, law enforcement, military, medical, scientific and security applications. 420 TV Line DSP CCD sensor, low light 0.03 lux F1.2 performance provides exceptional Near IR imaging. Great performance for low light machine vision, medical, scientific, and security applications, RoHS compliant.
C/CS lens mount for a large variety of lens options for any application, [lens not included]. Miniature lens version model V-1217-PCB-3.7 also available.
Features compact 32mm X 32mm board size, Auto Gain Control, Mirror On/Off, 2X Digital Zoom, Electronic Shutter, low 12 VDC 1.2W power input.
Features:
- 1/3" CCD Black & White
- 420 TV Lines
- Mirror ON/OFF
- Auto Gain Control
- Digital Zoom (2X)
Applications:
- OEM
- Industrial Process
- Test and Measurement
- Law Enforcement
- Military
- Medical
- Scientific
- Security
| TV System | EIA |
| Image Sensor Device | 1/3-inch CCD Image Sensor |
| CCD Total Pixels | 537(H) X 505(V) |
| Scanning System | 525 lines, 60 fields/sec |
| Sync System | Internal |
| Minimum Illumination | 0.03Lux F1.2 5600°K |
| Lens Mount | C / CS |
| Resolution | 420 TVL |
| Gain Control | AGC |
| S/N Ratio | 52dB ( MIN ) / 60dB ( TYP ) (AGC OFF) |
| Electronic Shutter | 1/60~1/120,000 sec. |
| Auto Iris | A.E.S. |
| BLC | ON/OFF Switchable |
| Mirror Function | Switchable |
| Digital Zoom (2X) | Switchable |
| Video Output | Composite 1.0V p-p at 75 ohm |
| Gamma Correction | 0.45 |
| Operating Temperature | 20° TO +50° C |
| Operational Humidity | Within 85%RH |
| Power Supply | DC12V ±10% 1.2W |
