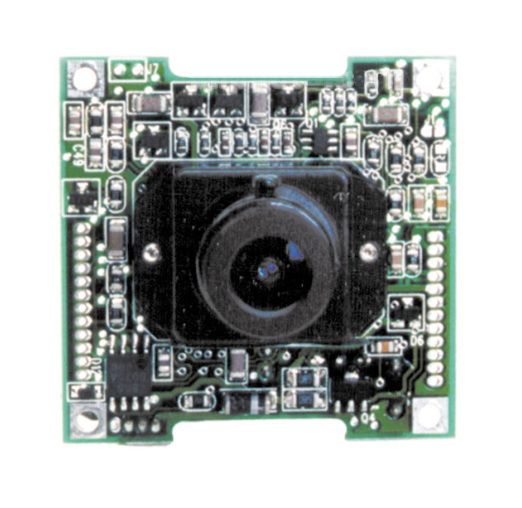

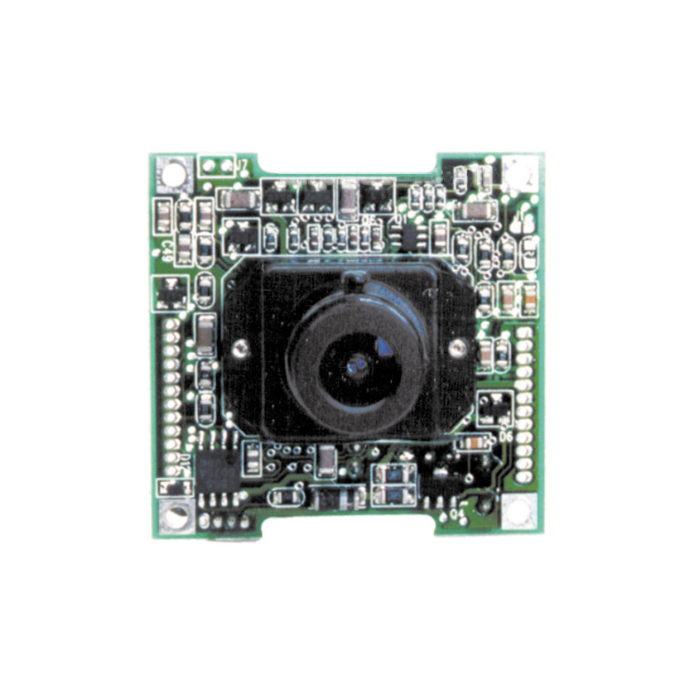

Marshall V-1205 Miniature B&W Board Camera – 44 × 44 × 31mm
SKU
V-1205
Quick Overview
The Marshall V-1205 is a low-light miniature B&W board camera with 400TVL resolution and 0.05 lux sensitivity. Compact (44×44×31mm) and equipped with a 3.6mm f2.0 lens, electronic auto-iris, and M12 lens mount, it’s ideal for surveillance, security, and integration into embedded systems.
The Marshall V-1205 delivers high-quality black and white video in ultra-low light conditions down to 0.05 lux, matching or surpassing human visual performance in darkness. This compact board camera includes a 3.6mm f2.0 lens with electronic auto-iris shutter, adjustable focus to as close as 1/2", and an M12 miniature lens mount compatible with Marshall’s 4300, 4400, and 4700 Series lenses.
Measuring only 44×44×31mm, the V1205 is ideal for integration into miniature surveillance systems, security applications, and embedded devices where size and low-light performance are critical.
Features:
- 1/3” B&W sensor, 542(H) × 492(V) pixels
- 400TVL horizontal resolution
- Ultra-low light performance: 0.05 lux
- 3.6mm f2.0 fixed lens, M12 mount
- Electronic auto-iris shutter
- Adjustable focus down to 1/2”
- Compact size: 44×44×31mm
- Power: 12V DC, 100mA
- 3-wire plug-in connector (video, power, ground)
Applications:
- Security & Surveillance
- Embedded Camera Systems
- Industrial & Inspection Systems
- Low-Light Monitoring
| Resolution | 400 TV Lines |
| Picture | 542H × 492V |
| Signal to Noise | >48dB |
| Min. Illumination | .05 Lux |
| Iris Control | Electronic |
| Lens | 3.6mm f2.0 |
| Connectors | 3 wire plug-in (video, power, ground) |
| Power | 12V DC, 100mA |
| Size | 1.73" × 1.75" × 1.22" |
