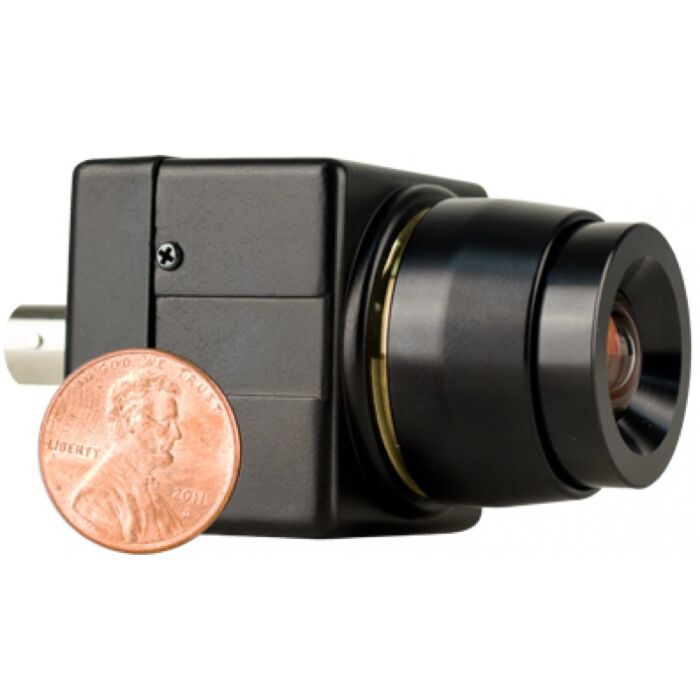

Marshall Electronics V-1055-BNC 1/3" CCD World's Smallest C/CS Mount Camera

Ultra Low Light Sensitivity Allows Monitoring in Almost Total Darkness
SKU
V-1055-BNC

This micro size, state-of the-art camera is only an inch-and-a half square, yet is a full function, low light CCD camera with 380 lines of resolution and a built-in "C/CS" mount. Because of a new high-tech sensor, this camera needs only 0.05 lux, which outperforms human sight in many low light conditions. At an inch-and-a-half square, it can fit almost anywhere. With the "C" mount, there is a whole series of miniature, standard, and microscope lenses to choose from, making this an excellent choice for low cost machine vision, robotics, and computer imaging applications.

Operation on 12 VDC, 100 mA, the camera is ideally suited for all security and safety monitoring. Because of its small size it's also well-suited for hidden camera applications or in areas which are physically impossible for standard size cameras.

The electronic iris built into the circuitry automatically adjusts from dim to bright lighting conditions with very low smear and anti-blooming under high contrast conditions.

Recommended Power Supply: V-PS12 (Not included)

Features:

  • 1 1/2" square × 1" deep, 3 ounces
  • 0.05 lux, HAD sensor technology
  • 510 × 492 pixels
  • 420 lines of resolution
  • Automatic electronic iris
  • 12 VDC, 100mA, 1.2W


Applications:

  • Low Cost Machine Vision
  • Robotics
  • Computer Imaging Applications
Image Sensor 1/3" CCD
Scanning 525 lines, 60 fields/sec
Video Output 1V p-p composite
Impedance 75 ohms
Picture Elements 510(H) * 492(V)
250,000 pixels
Chip Size 6.0mm H * 4.96 V
Unit Cell Size 9.6µm H * 7.3µm V
Signal to Noise Better than 48 dB
Min. illumination 0.05 lux @ f1.6
Resolution 380 horizontal TV lines
Iris Control Electronic
Gamma y=0.45
Size 1.5"w × 1.5"h × 1"d
Weight 3 ounces (86 grams)
Connectors
V-1055-BNC
Video: BNC
Power: 2.1mm plug
Temp. Range -20°C to +55°C
(-4°F to +131°F)
Humidity Within 95% RH
Power 12 VDC, 100 mA, 1.2 W
