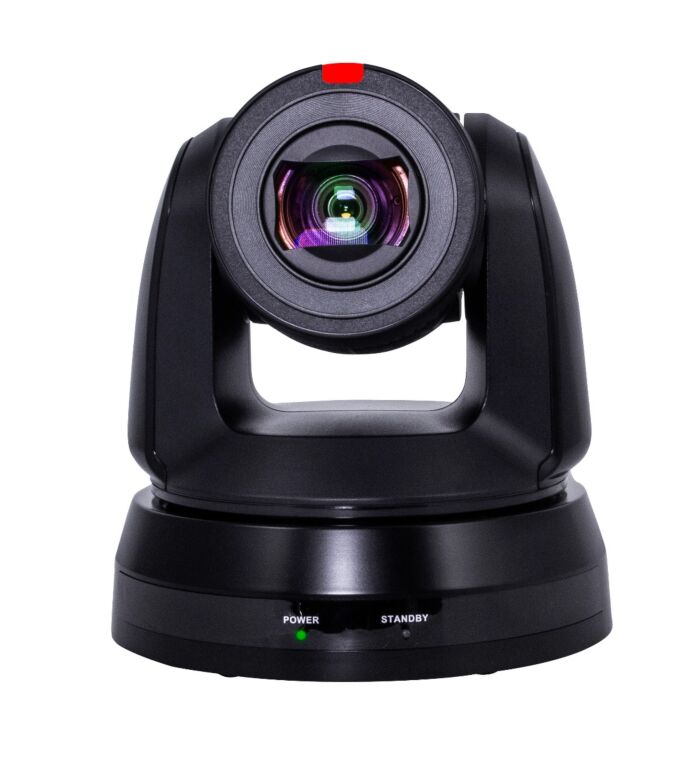

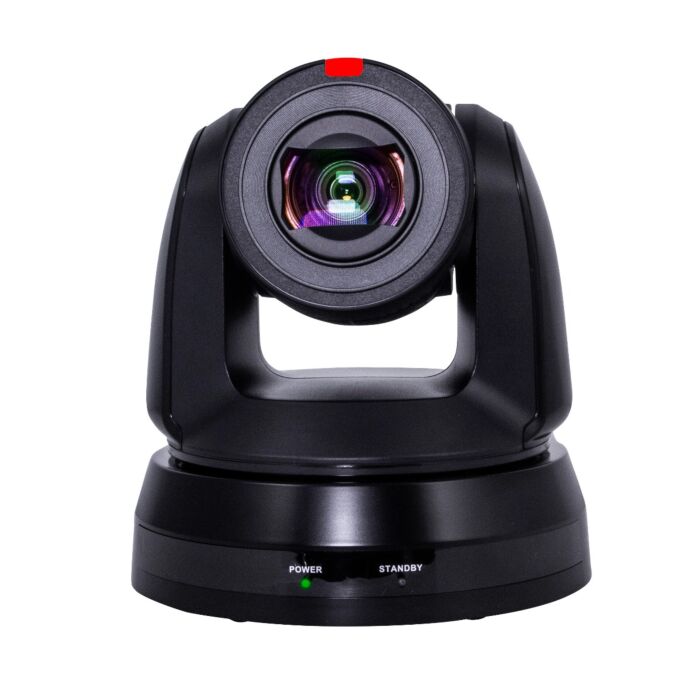

Marshall Electronics CV630-IP 30x UHD30 IP (HEVC) PTZ Camera

The Marshall CV630-IP PTZ Camera captures crisp UHD video combined with smooth PTZ camera positioning and 30X optical zoom for a versatile networked video solution.
SKU
CV630-IP

High Performance Video Output

At its core, the CV630-IP packs a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video, with support for HD 1920x1080p, and 1280x720p.


Versatile Camera Positioning

The CV630-IP is equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 30X optical zoom block provides flexibility from 4.6mm to 135mm, with a nearly 70-degree angle-of-view at its widest.

Simultaneous Networked and Streaming Outputs

Multiple simultaneous video streams are available over HDMI, 3G-SDI, and triple-stream IP (H.265/H.264) with stereo audio input embeddable on all available outputs. PoE+ (power-over-Ethernet) provides an economical and easy solution for integrators during installation.

Flexible Control Options

The CV630-IP offers easy control over iris, shutter, white balance, focus, pan/tilt speeds, and more, controllable by IR remote, networked video management software (VMS) or RS-232/ RS-422 with support for Visca, Visca over IP, Pelco, and Onvif platforms.

Additionally, the CV630-IP is compatible with Marshall's VS-PTC-IP PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with with one button dials and rocker control.

Features:

  • 8MP 1/2.5" sensor
  • 30x Optical Zoom (4.6~135mm) near 70-degrees AOV at widest
  • 3GSDI, HDMI, and IP simultaneous outputs
  • Simultaneous pan, tilt, and zoom
  • H.265 (HEVC) and H.264 (triple-stream) networked outputs
  • IP formats: SRT, UDP, DHCP, MPEG-TS, RTSP, RTP, RTMP, RTMPS, DNS, HTTP, HTTPS, IPv4, NTP, TCP, 802.1X
  • 3840x2160p, 1920x1080p, and 1280x720p
  • Stereo audio input (mic or line level) embedding
  • PoE+ (IEEE802.3at), video, and control over a single Ethernet cable
  • 340° pan, 120° tilt, and 30X zoom range
  • Front tally light
  • Free-D protocol support and CGI protocol commands

Applications:

  • Broadcast Production
  • Newscast
  • Concerts
  • Reality Television
  • Corporate Communications
  • Government
  • Courtroom
  • House of Worship
  • Education
