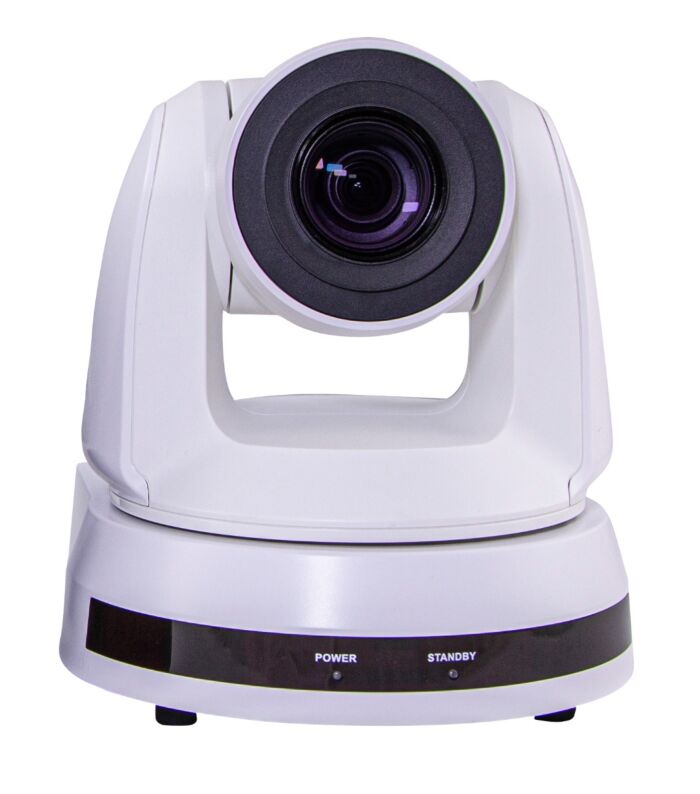

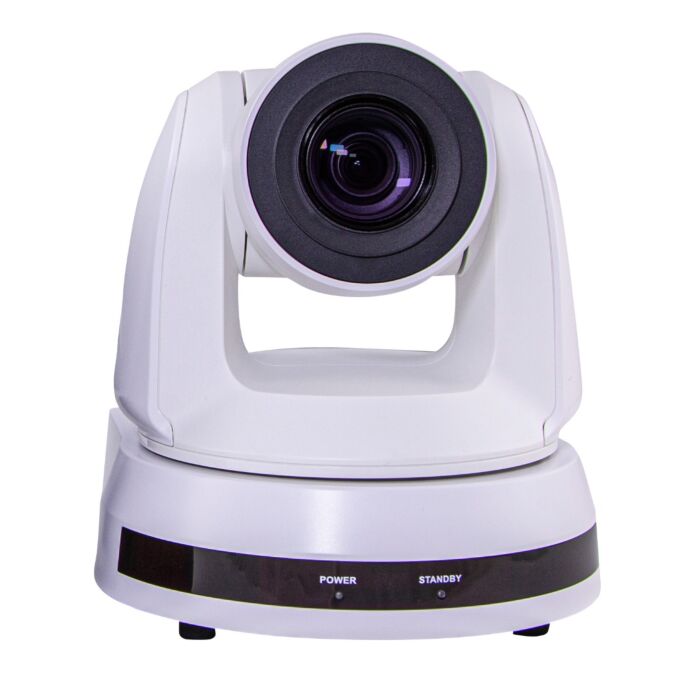

Marshall Electronics CV620-WI 20X Full-HD60 IP PTZ Camera

Quick Overview
Marshall CV620-BI/WI features a 20x optical zoom range and flexible IP, 3GSDI, and HDMI simultaneous outputs with clear Full-HD images up to 1920x1080p at 60fps.

Remote adjust and match settings include Iris, Zoom, Pan/Tilt, White Balance, Exposure, Pedestal, and many more over long distances via IP, VS-PTC-IP controller, Video Management Software (VMS), Software GUI, OBS Plugins/Docks, vMix and compatible 3rd party control decks.

Crisp Full-HD Video Output

The CV620-WI (CV620WI) is built around a professional-grade, 2-Megapixel 1/2.8-inch Sony sensor, with smooth 20x Optical Zoom (5.3~110mm) outputting HD video up to 1920x1080p60fps, 1920x1080i and 1280x720p.

Versatile Camera Position

The CV620-WI is equipped with synchronous pan, tilt, and zoom motors with various speed adjustment for smooth and silent camera movements during operation. A 20X optical zoom block provides flexibility from 5.3mm to 110mm, maintaining image crispness in wide and tight shots.

Easy I/O and Control

Simultaneous IP, 3GSDI and HDMI outputs with command options of Visca over IP, RS-422, RS-232, or IR remote control provide flexibility for inclusion in most modern workflows. Also, easy one-cable to camera setup via IP ethernet cable for control, video, audio, tally and PoE+ (power).

Flexible Control Sources

Marshall IP PTZ Cameras are setup to be controlled from IR remote (included), VS-PTC-IP or VS-PTC-200 controllers, Video Management Software (VMS), Software GUI through web, OBS plugins/docks, vMix and other 3rd party software/hardware control decks.

Features:

  • 2 Megapixel Full-HD Sensor (Sony 1/2.8")
  • 20x Optical zoom (5.3mm~110mm) starting at 60° H.AOV
  • 340° pan and 120° tilt range with various PT selectable speeds
  • 3GSDI, HDMI and IP (H.264) available outputs
  • IP formats: DHCP, DNS, HTTP, HTTPS, IPv4, NTP, RTSP, TCP, SRT, MPEG-TS, RTMP, RTMPS
  • Full-HD: 1920x1080p, 1920x1080i (interlaced) and 1280x720p
  • 60, 59.94, 50, 29.97, 25 frames per second
  • 3.5mm TRS Stereo Audio over I/O cable (Mic/Line)
  • 12V Power cable included (16W max) or PoE+ (18W max)
  • Operating Temp: 0 to 40°C, Storage Temp: -20 to 60°C
  • Free-D protocol support and CGI protocol commands

Applications:

  • Broadcast
  • Production
  • Live Events
  • Sportscast
  • Government
  • Courtroom
  • House of Worship
  • College/University
  • Front of Stage
  • Confidence
  • Observation
