Marshall Electronics CV605-WH 5x HD60 3GSDI/IP PTZ Camera

Marshall Electronics CV605-WH 5x HD60 3GSDI/IP PTZ Camera

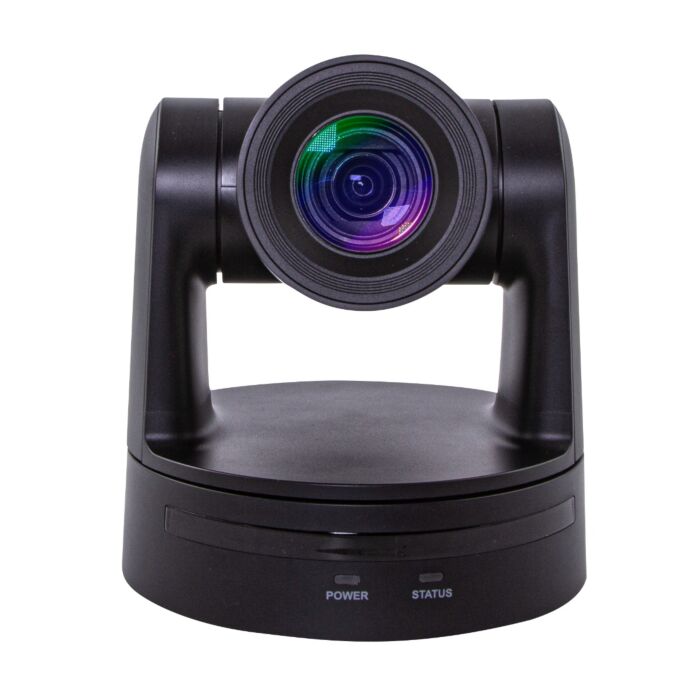

CV605-U3W Front

Marshall Electronics CV605-U3W 5x HD60 USB-C/IP/HDMI PTZ Camera

Marshall Electronics CV605-U3 5x HD60 USB-C/IP/HDMI PTZ Camera

The CV605 5X optical zoom USB-C, HDMI and IP camera utilizes a professional grade 2 Megapixel sensor to capture crisp HD video starting at a wide-angle 85° and up to 1920x1080p resolution at 60fps.
SKU
CV605-U3

Multiple outputs include HDMI, USB.C and IP (H.265/H.264). Marshall's straight forward design and ease-of-use make this camera an affordable camera for a wide variety of video conference, video streaming and professional A/V applications. CV605-U3 can be setup through one Ethernet (CAT) cable carrying video, audio, power (PoE), and control over IP. Also is easily dockable via OBS Studio, Zoom (certified) and as well as useful in other soft codecs.

Ultra-Wide 85° Horizontal AOV

The wide-angle optical zoom lens offers an impressive 85-degree horizontal angle-of-view (wide open) with minimal distortion. Optical zoom from 3 ~ 15mm (F1.8~F2.8) and an additional 10x digital zoom.

Flexible USB-C + HDMI + IP options

The CV605-U3 offers a USB-C connection for video conference, collaboration, and streaming. HDMI opens a wide range of options with HDMI workflows and IP provides an easy one-cable to camera setup and operation.

Low-light Sensitivity

The CV605-U3 PTZ camera operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including video conference, live streaming, live podcast and other applications with challenging light sources.

One Cable to Camera

One cable to camera can provide video, audio, control, and power (PoE) over one cable with IP (H.265/H.264) and HDMI simultaneous outputs with audio embedding.

Privacy Standby Mode

The CV605-U3 PTZ camera contains a standby mode for privacy between video calls. Managing what is being streamed over the internet is paramount to protect intellectual properties and proprietary information while not in video meetings.

Features:

  • Full HD sensor with crystal-clear video quality and accurate color
  • 5X Optical Zoom (3~15mm) – starting at 85° AOV
  • Full-HD Resolution: 1920x1080p, 1920x1080i, 1280x720p and more
  • Low-light Illumination capability at 0.5Lux (F1.8) for challenging environments
  • USB-C (USB3.0/2.0), HDMI and IP (H.265/H.264) simultaneous outputs
  • Barco Clickshare compatible, along with other common soft codecs
  • Ethernet IP supports video, audio, control, and PoE over one Cat cable
  • PoE IEEE802.3af – power consumption 48V (13W)
  • Control Options: IR remote, VS-PTC-200, VS-PTC-IP, VMS Software, Zoom (certified), GUI via web, UVC1.5, OBS Studio plugins & docs, Barco Clickshare, and more
  • 3.5mm audio linear input (AAC, MP3, G.711A compression)

Applications:

  • Video Conference
  • Video Collaboration
  • Live Streaming
  • Courtroom Capture
  • Corporate Video
  • Government Assembly
  • OBS Studio
  • Zoom
