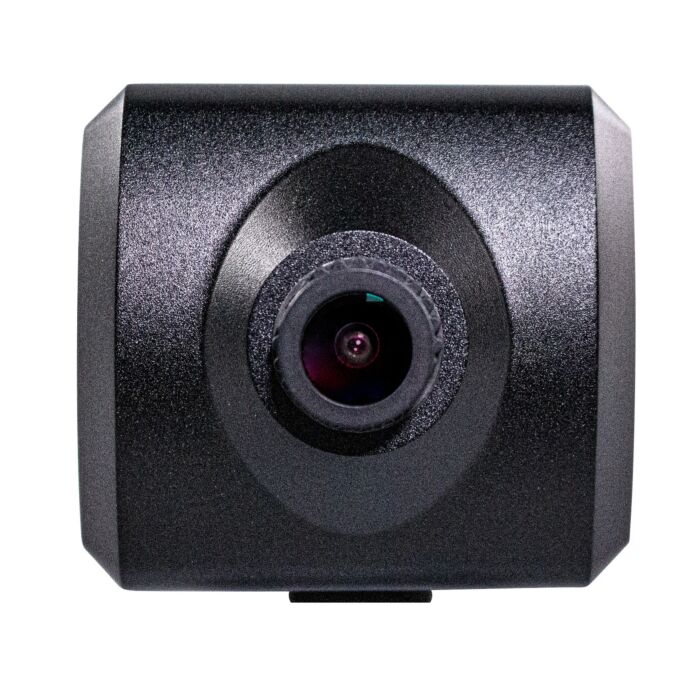

Marshall Electronics CV570 2.2MP 1080p Miniature POV Camera with Sony Sensor, NDI|HX3, HDMI, M12 Lens, IP & SRT Streaming
The Marshall CV570 is a versatile miniature POV camera engineered for broadcast, proAV, and networked video production. Featuring a 2.2MP Sony sensor with larger square pixels, the CV570 delivers rich color, high-resolution imagery, and excellent low-light performance. Full HD resolutions are available, including 1920x1080p (progressive), 1920x1080i (interlaced), and 1280x720p (progressive) with multiple frame rates (23.98–60 fps) to suit a wide range of professional applications.
NDI|HX3 streaming ensures premium quality video with low latency and efficient bandwidth utilization, while simultaneous HDMI output and IP streaming via HEVC, SRT, RTSP, and MPEG-TS provide flexible deployment options. The durable aluminum body features rear I/O protection, and the M12 interchangeable lens mount supports 4.0mm (85° H.AOV) and other lenses for custom field-of-view setups. Remote picture adjustment and matching are supported via Visca over IP, NDI Tools, or Marshall RCP, allowing fine control from a distance. Compact, powerful, and flexible, the CV570 is ideal for live broadcast, AV over IP, remote contribution, and professional streaming workflows.
Features:
- 2.2 Megapixel Sony sensor with larger pixels and square pixel array
- Interchangeable M12 lens mount comes with 4.0mm - 85º H.AOV lens
- HDMI + network support for NDI|HX3, HEVC, SRT, RTSP, MPEG-TS and other IP streaming codecs
- One-cable to camera option for power (PoE), video, audio, and remote setting control
- 1920x1080p, 1920x1080i & 1280x720p resolutions available
- Framerates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
- Remote adjust & match via Visca over IP, NDI|Tools, RCP, Camera Control
- Power Draw: 6W with 7~15V flexibility or PoE over Cat cable
Applications:
- Live Broadcast
- Productions
- Concerts
- Courtroom Capture
- Corporate Video
- Government Assembly
- Sportscast
- Newscast
- Reality Television
- eSports
- Live Performance
- House of Worship
| Image Sensor | 2.2 Megapixel Sony sensor with larger pixels, square pixel array |
| Lens Mount | Interchangeable M12, 4.0mm standard lens (85° H.AOV) |
| Video Output | HDMI, NDI|HX3, HEVC, SRT, RTSP, MPEG-TS, standard IP |
| Resolutions & Frame Rates | 1920x1080p, 1920x1080i, 1280x720p | 23.98–60 fps |
| Streaming Codec | NDI|HX3 (low-latency, efficient, lossless) |
| Remote Adjust | Visca over IP, NDI Tools, Marshall RCP |
| Power Input | 6W, 7–15V DC or PoE over Cat cable |
| Construction | Aluminum alloy miniature body, rear I/O protection |
| Operating Temperature | -10°C to 50°C |
