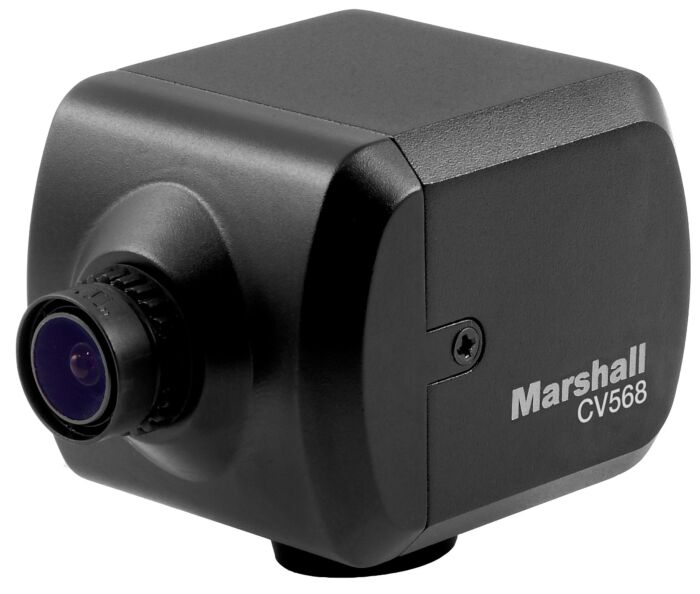

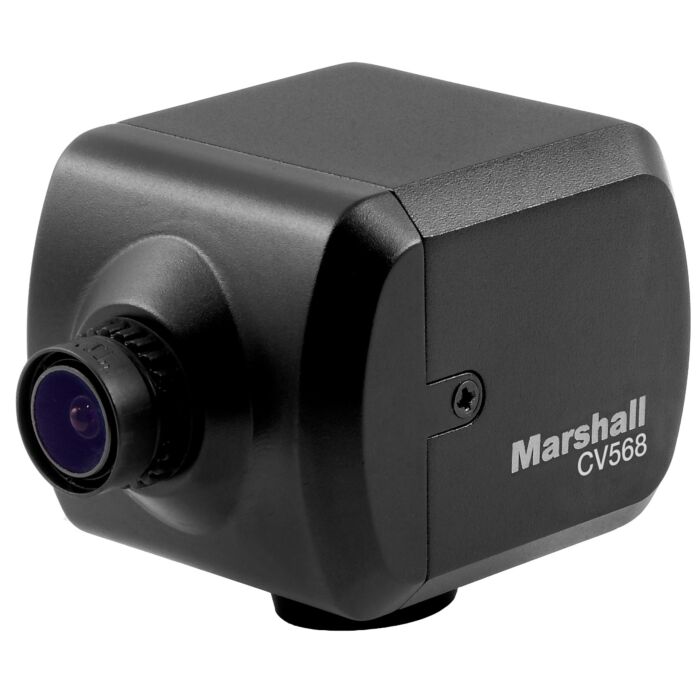

Marshall Electronics CV568 3.2MP 1080p Miniature Global Shutter Camera with 1/1.8” CMOS, Genlock, M12 Lens, 3GSDI & HDMI Outputs
SKU
CV568
Quick Overview
Professional miniature HD camera with 1/1.8” Sony global shutter sensor, 3.2MP resolution, interchangeable M12 lens, simultaneous 3GSDI & HDMI outputs, and tri-level Genlock synchronization. Ideal for POV, broadcast, sports, and live production environments.
Built around an impressive 1/1.8" Sony global sensor with 25% larger pixels and interchangeable M12 lens mount (comes with a 4.4mm - 84°) make this the most capable POV camera in the miniature camera lineup.
New Global Shutter CMOS Technology
Global Shutter camera sensors are nothing new to the broadcast proAV industry, however when users are challenged to capture ultra-fast motion within the field-of-view, motion anomalies become more of a challenge - Sony Global Shutter sensors perform better in these conditions as all pixels are exposed (start to finish) simultaneously.
Genlock Tri-Level Sync Feature
| Image Sensor | 1/1.8" Sony Global Shutter CMOS (3.2MP, 25% larger pixels) |
| Video Output | Simultaneous 3GSDI (SMPTE 424M/292M) & HDMI |
| Lens Mount | Interchangeable M12 (4.4mm lens standard, 100° AOV) |
| Frame Rates | 1920x1080p: 50, 59.94, 60 fps | 1920x1080i: 50, 59.94, 60 fps | 1280x720p: 50, 59.94, 60 fps |
| Picture Controls | White Balance, Exposure, Gain, Pedestal, Color Matrix, Gamma, Digital Zoom, Mirror/Flip |
| Audio Input | Mic/Line Level, 2.5V bias, stereo embedding up to 48kHz |
| Genlock | Tri-level synchronization for multi-camera workflows |
| Operating Temperature | -10°C to 50°C |
| Power Supply | 12V ±10%, 6W max |
| Construction | Durable aluminum alloy, 1/4"-20 mount, rear I/O protection |
| Dimensions | Compact miniature POV form factor |
