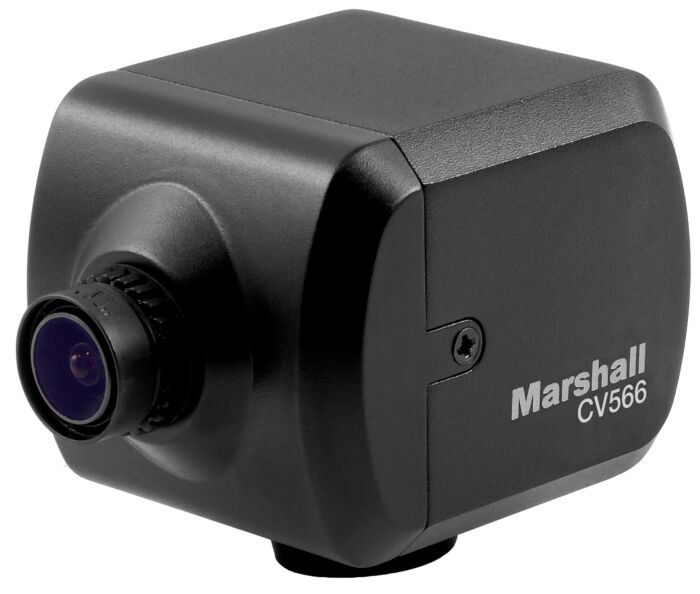

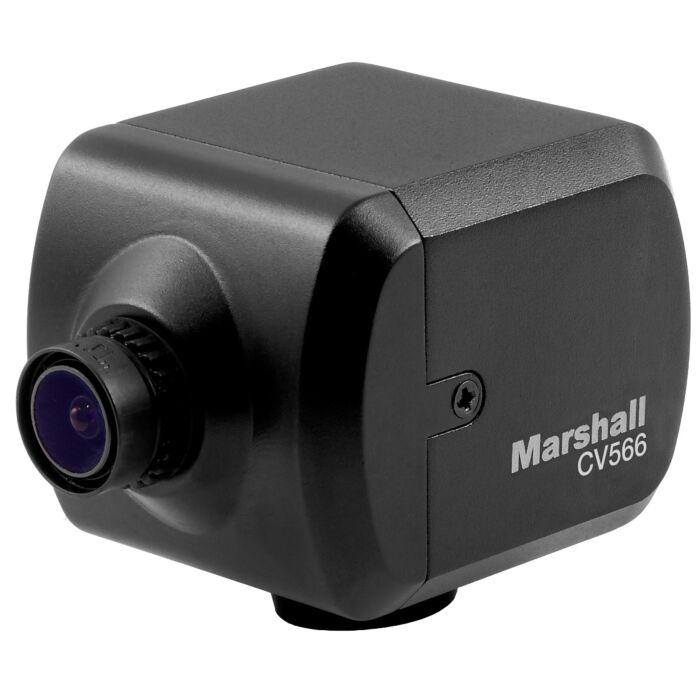

Marshall Electronics CV566 Micro POV Camera HDMI 3GSDI 1/2.8" Sony CMOS 1080p HD Interchangeable M12 Lens
The Marshall Electronics CV566 is a high-performance micro POV camera designed for professional broadcast and production workflows. Built around a next-generation 1/2.8" Sony CMOS sensor, the CV566 provides clear, true-color HD imagery in challenging low-light conditions (0.01 Lux), with night mode capabilities down to 0.005 Lux for IR capture.
This camera supports HD resolutions up to 1920×1080p (progressive), 1920×1080i (interlaced), and 1280×720p, with framerates ranging from 23.98 fps to 60 fps, allowing seamless integration into a variety of production environments. The CV566 includes a Genlock Tri-Level Sync feature for synchronized multi-camera setups, ensuring minimal latency and smooth transitions.
Housed in a durable aluminum alloy body with rear panel protection, the CV566 is built to withstand demanding conditions while maintaining broadcast-quality video. Interchangeable M12 lenses provide flexibility for near- or far-field focus requirements. Control and adjustments are accessible via Marshall’s CV-RCP-V2, Camera Control Software, or compatible third-party systems, and firmware upgrades are easily performed via the micro-USB port.
Features:
- 2.2 Megapixel 1/2.8" Sony CMOS sensor
- Interchangeable M12 lens mount (includes 4.0 mm, 85° H.AOV lens)
- HDMI + 3GSDI outputs
- Genlock Tri-Level Sync for multi-camera workflows
- HD Resolutions: 1920×1080p, 1920×1080i, 1280×720p
- Framerates: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
- True color even in low-light (0.01 Lux), Night mode (0.005 Lux)
- Audio: Mic/Line Level (2.5 V bias), stereo embedding up to 48 kHz
- Remote adjust & match via Camera Control Software, CV-RCP-V2, or 3rd party sources
- Micro-USB port for field firmware upgrades
- Durable aluminum alloy body with rear panel protection
- Includes 12 V ±10 % power supply (max 6 W)
Applications:
- Live Broadcast Productions
- Courtroom Capture
- Corporate Video
- Government Assembly
- Sportscast & Newscast
- Reality Television & eSports
- Live Performance
- House of Worship
| Model | CV566 |
| Image Sensor | Sony 1/2.8” CMOS Exmor Sensor, 2.2MP |
| Color | 10-bit HD, BT.709 |
| Effective Pixels | 1920(H) x 1080(V) |
| Pixel Size | 2.9 µm x 2.9 µm |
| Minimum Illumination | 0.01 Lux (Day), 0.005 Lux (Night) |
| Lens | Interchangeable M12, 4 mm (85° H.AOV) |
| Video Output | 3G-SDI + HDMI |
| Genlock | Tri-Level Sync |
| Framerates | 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps |
| Audio | Mic/Line Level stereo embedding up to 48 kHz |
| Remote Control | CV-RCP-V2, Camera Control Software, Third-Party Controllers |
| Firmware Upgrade | Micro-USB |
| Connector | Locking Hirose for Genlock, RS485, Audio, 12V Power |
| Dimensions (WxHxD) | 40 mm x 44 mm x 55 mm |
| Power Input | 12 V DC ±10% |
| Power Consumption | 6 W max |
| Body | Aluminum Alloy with Rear Connector Protection |
| Operating Temp. | -10 °C ~ 50 °C |
