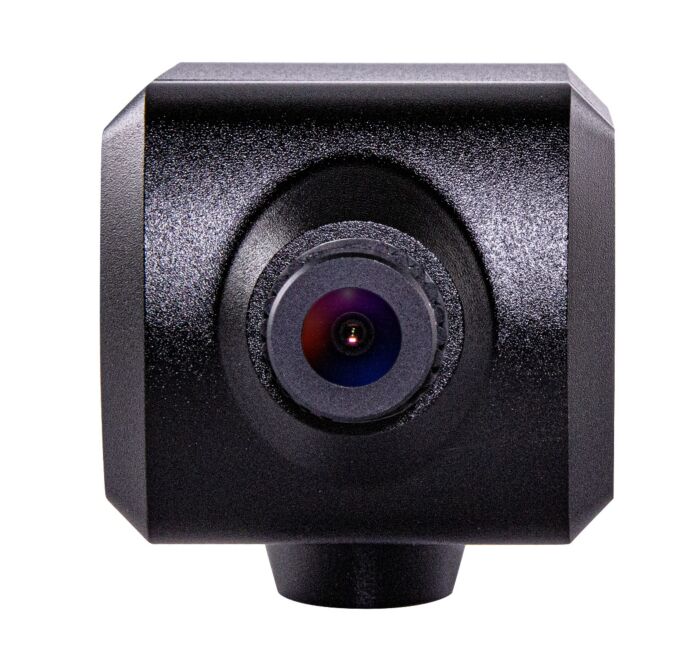

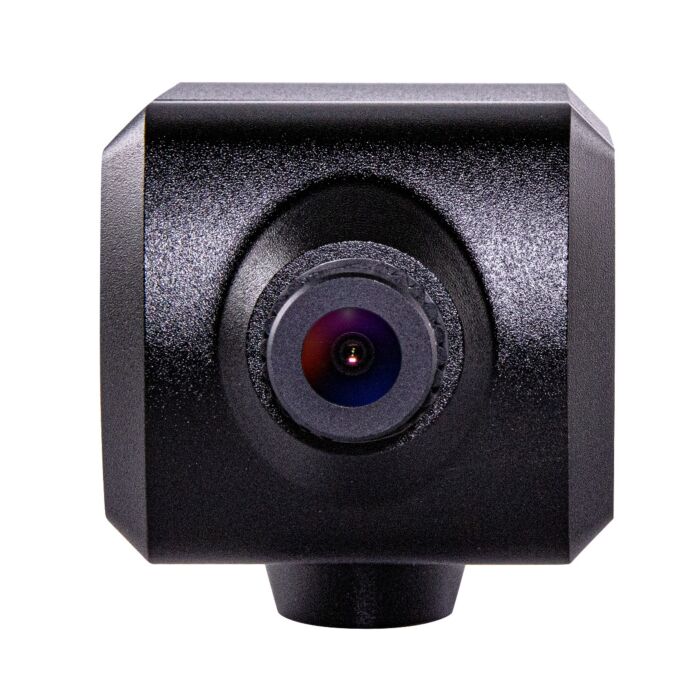

Marshall Electronics CV508 Micro POV Camera, 2.2MP Sony Sensor, HDMI + 3G-SDI, Interchangeable M12 Lens
The Marshall CV508 is a high-performance micro POV camera engineered for professional broadcast, AV, and industrial applications. Its 2.2MP Sony 1/2.8" solid-state sensor delivers exceptional 10-bit 4:2:2 HD video in BT.709 color space, providing rich, color-accurate images even in low-light conditions down to 0.01 Lux (day) and 0.005 Lux (night mode with IR capture).
Housed in a durable aluminum alloy body with rear connector protection, the CV508 is highly reliable and compact (40×44×55 mm). It comes equipped with a 4.0 mm (85° H.AOV) M12 lens, with interchangeable options for project-specific needs. Video output is available simultaneously via HDMI and 3G-SDI, supporting 1920x1080p/i and 1280x720p at multiple framerates up to 60fps. Remote adjust & match functions are supported via CV-RCP-V2, Camera Control Software, and various third-party controllers. Firmware updates are accessible through the Micro-USB port.
The CV508 draws 2.76 W nominal (max 6 W) from 12 V ±10% and is ideal for live broadcast, concert capture, courtroom recording, corporate and government AV, aerospace monitoring, eSports, and other demanding professional applications.
Features:
- 2.2 Megapixel Sony sensor with square pixel array and larger pixels
- Interchangeable M12 lens mount; comes with a 4.0mm - 85° Horizontal AOV
- HDMI & 3GSDI (10bit, 4:2:2, BT.709) with remote adjust & match
- 1920x1080p, 1920x1080i & 1280x720p resolutions selectable
- Framerates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
- Control via CV-RCP-V2, Camera Control Software and/or a variety of 3rd party sources
- Micro-USB port for field upgradeable firmware via PC
- Locking Hirose cable (included) for OSD menu joystick, RS485, AUDIO and power
- Weight: 0.3lbs (0.136kg); approx dims: 40mm x 44mm x 55mm
- Power: 12V+/-10% drawing 2.76W (max 6W)
Applications:
- Live Broadcast Productions
- Concerts
- Courtroom Capture
- Corporate Video
- Government Assembly
- Sportscast
- Newscast
- Reality Television
- eSports
- Live Performance
- House of Worship
- Confidence Monitoring
- Aerospace
| Model | CV508 |
| Image Sensor | Sony 1/2.8” IMX CMOS Solid-state Image Sensor with Square Pixel Array |
| Color | 10bit, 4.2.2, ITU BT.709 |
| Pixel Size | 2.9 µm x 2.9 µm |
| Effective Pixel | 1920 (H) x 1080 (V) - 16:9 HD ratio |
| Min. Illumination | 0.01Lux (Day), 0.005Lux (Night) |
| Lens | Interchangeable M12, 4mm (85º H.AOV) |
| Back Light Compensation | WDR, BLC, HLM |
| Exposure | Auto / Manual / AGC Fix / Shutter Fix |
| White Balance | ATW (1,900°K~11,000°K) / Manual / Indoor / Outdoor / One Push |
| Day & Night System | Day (color) & Night (b/w) capability (Auto/Manual/Adjustable) with removable IR cut filter mechanism |
| Electronic Shutter | 1/30~1/10000 |
| Functions | Privacy Mask, Image Mirror/Flip, 2D+3DNR, Flicker-less, Defog, Dzoom DIS (Digital Image stabilizer), NegArt, Freeze |
| HDSDI | HDSDI - SMPTE 292M(1.485Gbps): 1920x1080p @ 23.976, 24, 25, 29.97, 30. 1920x1080i @ 50, 59.94, 60. 1280x720p @ 50, 59.94, 60 3GSDI - SMPTE 424M(2.97Gbps): 1920x1080p @ 50, 59.94, 60fps |
| 3GSDI | MIC Input |
| HDMI (+Audio)=CV508 only | HDMI 1.3 compliant on CV508 simultaneous to 3GSDI outputs |
| MIC Input | TRS Stereo, Mic/Line Level input with 2.5V Mic bias 48mHz, Bit Depth: 8bits data, 1 stop bit, no parity, 2400~115200bps |
| Visca over RS485 | SONY-VISCA protocol, Camera ID#, Baudrate 2400~115200 |
| Operation Temperature | -10℃ ~ 50℃ |
| Power Input | 12V DC (7V to 15VDC) |
| Power Consumption | Max 2.76W |
