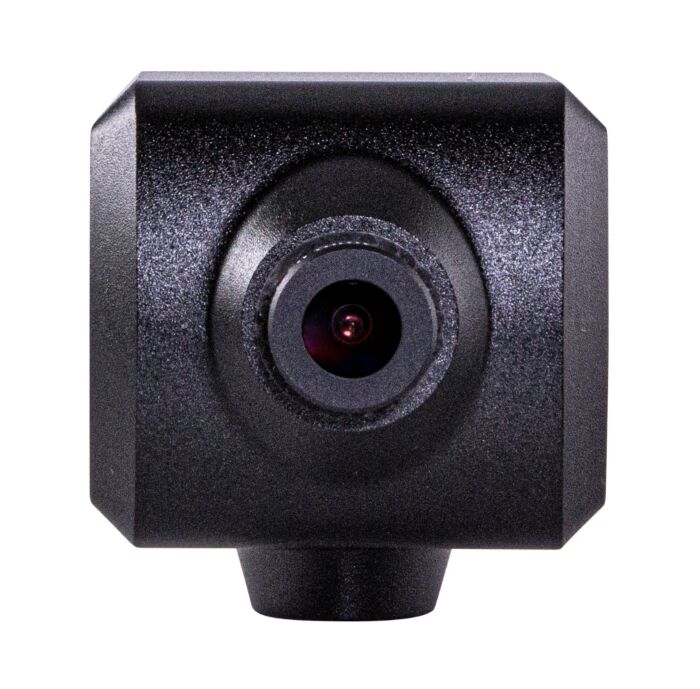

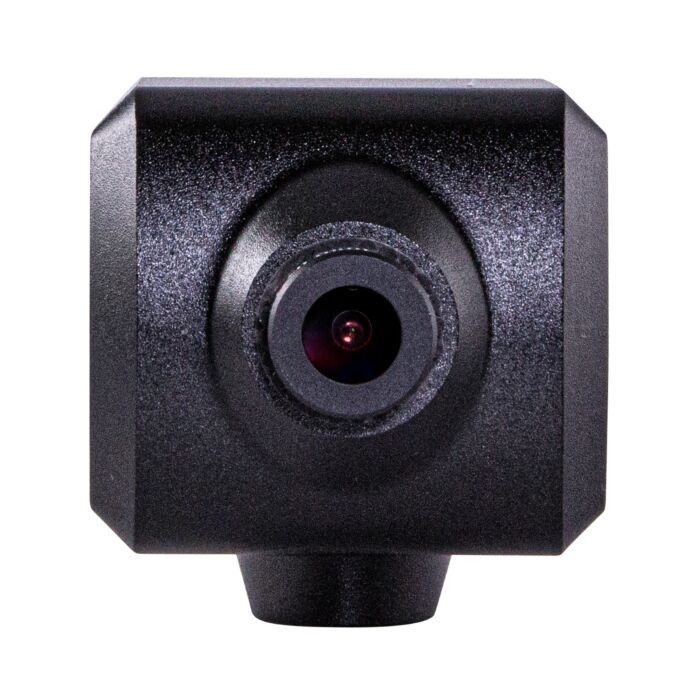

Marshall Electronics CV504 Micro POV Camera, 2.2MP Sony Sensor, 3G-SDI, Interchangeable M12 Lens
The Marshall CV504 is a high-performance micro POV camera designed for professional broadcast, AV, and industrial applications. Its 2.2MP Sony 1/2.8" solid-state sensor delivers exceptional 10-bit 4:2:2 HD video in BT.709 color space, ensuring accurate color reproduction and excellent low-light performance down to 0.01 Lux during the day and 0.005 Lux at night.
Housed in a durable aluminum alloy body with rear connector protection, the CV504 is compact (40×44×55 mm) yet robust. It comes standard with a 4.0 mm (85° H.AOV) M12 lens, with interchangeable M12 options for specific project requirements. The camera outputs HD video via 3G-SDI (BNC) supporting 1920×1080p/i and 1280×720p resolutions at multiple framerates up to 60fps. Remote adjust & match functionality is supported via CV-RCP-V2, Camera Control Software, and compatible third-party controllers. Firmware updates are possible through the Micro-USB port.
Operating from 12 V DC (7–15 V) with a maximum power draw of 6 W, the CV504 is ideal for live broadcast, concerts, corporate video, courtroom recording, government assemblies, eSports, and other professional video production applications.
Features:
- 2.2MP Sony 1/2.8" CMOS solid-state sensor, square pixel array
- Interchangeable M12 lens mount; includes 4.0 mm (85° H.AOV) lens
- 3G-SDI video output, 10-bit 4:2:2 BT.709
- HD resolutions: 1920×1080p/i, 1280×720p
- Framerates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
- Remote adjust & match via CV-RCP-V2, Camera Control Software, or third-party controllers
- Micro-USB firmware upgrade
- Locking Hirose cable for OSD menu, RS485, audio, and power
- Compact, durable aluminum alloy body, 40×44×55 mm
- Power: 12 V DC ±10%, max 6 W
- Operating Temperature: -10 °C ~ 50 °C
Applications:
- Live Broadcast Productions
- Concerts & Live Events
- Courtroom Capture
- Corporate Video Production
- Government Assembly Recording
- Sportscasts & Newscasts
- Reality Television
- eSports Coverage
- House of Worship
| Model | CV504 |
| Image Sensor | Sony 1/2.8” IMX CMOS Solid-state Image Sensor with Square Pixel Array |
| Color | 10bit, 4.2.2, ITU BT.709 |
| Pixel Size | 2.9 µm x 2.9 µm |
| Effective Pixel | 1920 (H) x 1080 (V) - 16:9 HD ratio |
| Min. Illumination | 0.01Lux (Day), 0.005Lux (Night) |
| Lens | Interchangeable M12, 4mm (85º H.AOV) |
| Back Light Compensation | WDR, BLC, HLM |
| Exposure | Auto / Manual / AGC Fix / Shutter Fix |
| White Balance | ATW (1,900°K~11,000°K) / Manual / Indoor / Outdoor / One Push |
| Day & Night System | Day (color) & Night (b/w) capability (Auto/Manual/Adjustable) with removable IR cut filter mechanism |
| Electronic Shutter | 1/30~1/10000 |
| Functions | Privacy Mask, Image Mirror/Flip, 2D+3DNR, Flicker-less, Defog, Dzoom DIS (Digital Image stabilizer), NegArt, Freeze |
| HDSDI | HDSDI - SMPTE 292M(1.485Gbps): 1920x1080p @ 23.976, 24, 25, 29.97, 30. 1920x1080i @ 50, 59.94, 60. 1280x720p @ 50, 59.94, 60 3GSDI - SMPTE 424M(2.97Gbps): 1920x1080p @ 50, 59.94, 60fps |
| 3GSDI | MIC Input |
| MIC Input | TRS Stereo, Mic/Line Level input with 2.5V Mic bias 48mHz, Bit Depth: 8bits data, 1 stop bit, no parity, 2400~115200bps |
| Visca over RS485 | SONY-VISCA protocol, Camera ID#, Baudrate 2400~115200 |
| Operation Temperature | -10℃ ~ 50℃ |
| Power Input | 12V DC (7V to 15VDC) |
| Power Consumption | Max 6W |
