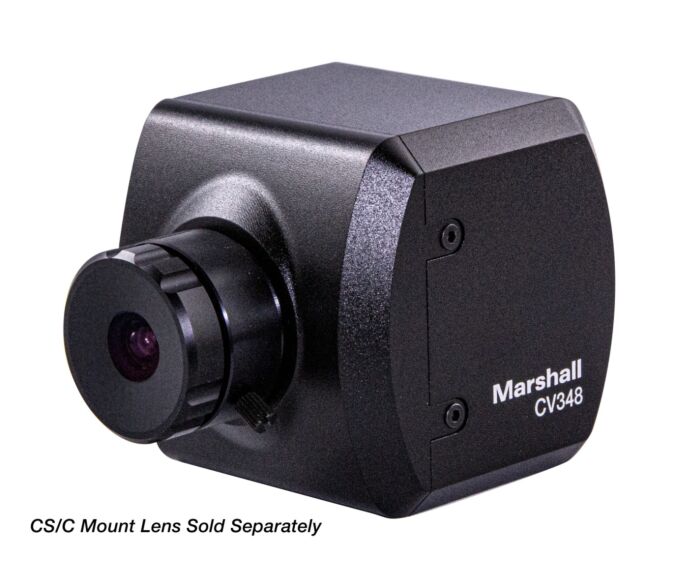

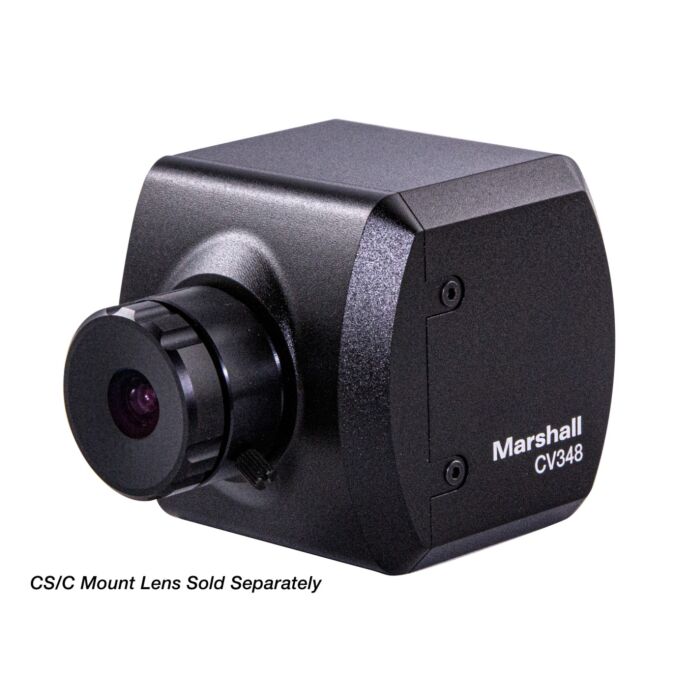

Marshall Electronics CV348 2.2 MP Compact POV 3G/HD-SDI CS/C Mount Camera
The Marshall CV348 Compact POV Camera is powered by a 2.2MP Sony 1/2.8" solid-state sensor with a square pixel array, delivering 10-bit 4:2:2 color video (BT.709). It supports Full HD resolutions including 1080p (progressive), 1080i (interlaced), and 720p (progressive) with frame rates up to 60fps. The camera excels in low-light performance, capturing clear footage as low as 0.005Lux in night mode. It features a durable aluminum alloy body, a flexible CS/C lens mount, and 3G-SDI output for seamless broadcast integration. Additionally, it supports Genlock, RS485 control, and locking Hirose connectors for reliable connections.
Remote adjust and match are available through Camera Control Software, the CV-RCP-V2, or third-party controllers like Cyanview and Skaarhoj, offering precise exposure and color matrix adjustments. The CV348 operates on a wide voltage range (7-15V) with a low power draw of just 3.8W, making it energy-efficient for proAV and broadcast applications. The camera is ideal for live events, sports broadcasting, eSports, and other dynamic lighting environments, providing professional performance with flexible control and integration options.
Features:
- 2.2MP Sony 1/2.8" sensor
- 10-bit 4:2:2 color (BT.709)
- Resolutions: 1080p, 1080i, 720p
- Frame rates: Up to 60fps
- Low-light sensitivity: 0.005Lux (night mode)
- Durable aluminum alloy body
- CS/C lens mount
- 3G-SDI output
- Genlock, RS485, Locking Hirose connectors
- Remote adjust & match (software/RCP/3rd party)
- Wide voltage range: 7-15V
- Power draw: 3.8W
Applications:
- Broadcast
- Live events
- Sports production
- eSports
- ProAV
- Outdoor/Indoor environments
- Remote production
| Image Sensor | Sony 1/2.8” IMX CMOS Solid-state Image Sensor with Square Pixel Array |
|---|---|
| Color | 10bit, 4.2.2, ITU BT.709 |
| Pixel Size | 2.9 μm x 2.9 μm |
| Effective Pixel | 1920 (H) x 1080 (V) - 16:9 HD ratio |
| Min. Illumination | 0.01Lux (Day), 0.005Lux (Night) |
| Optics | Lens: CV504/CV504-WP/CV508 = Interchangeable M12, 4mm (85º H.AOV); CV348 = CS/C mount lenses (sold separately) |
| Back Light Compensation | WDR, BLC, HLM |
| Exposure | Auto / Manual / AGC Fix / Shutter Fix |
| White Balance | ATW (1,900°K~11,000°K) / Manual / Indoor / Outdoor / One Push |
| Day & Night System | Day (color) & Night (b/w) capability (Auto/Manual/Adjustable) with removable IR cut filter mechanism |
| Electronic Shutter | 1/30~1/10000 |
| Additional Features | Privacy Mask, Image Mirror/Flip, 2D+3DNR, Flicker-less, Defog, Dzoom, DIS (Digital Image Stabilizer), NegArt, Freeze |
| Video Output | SMPTE 292M (1.485Gbps): 1920x1080p @ 23.976, 24, 25, 29.97, 30, 1920x1080i @ 50, 59.94, 60, 1280x720p @ 50, 59.94, 60 |
| Outputs | 3GSDI: SMPTE 424M (2.97Gbps): 1920x1080p @ 50, 59.94, 60fps, 800mVp-p, 75Ω, unbalanced generator (single-ended), HDMI (+Audio) = CV508 only |
| Audio Input | TRS Stereo, Mic/Line Level input with 1.7V Mic bias48mHz, Bit Depth: 8bits data, 1 stop bit, no parity, 2400~115200bps |
| Control | SONY-VISCA protocol, Camera ID#, Baudrate 2400~115200bps, 3.5mm TRS |
| Power Input | +12VDC, Power Consumption: <4W |
| Environmental | Operating Temp.: 0º to 40ºC (32º to 104ºF) |
| Physical Characteristics | Dimensions: 62mm x 60mm x 82mm (2.44" x 2.36" x 3.23") |
| Weight | 200g (7oz) |
