Marshall Electronics CV346 Compact HD Camera (3GSDI & HDMI)

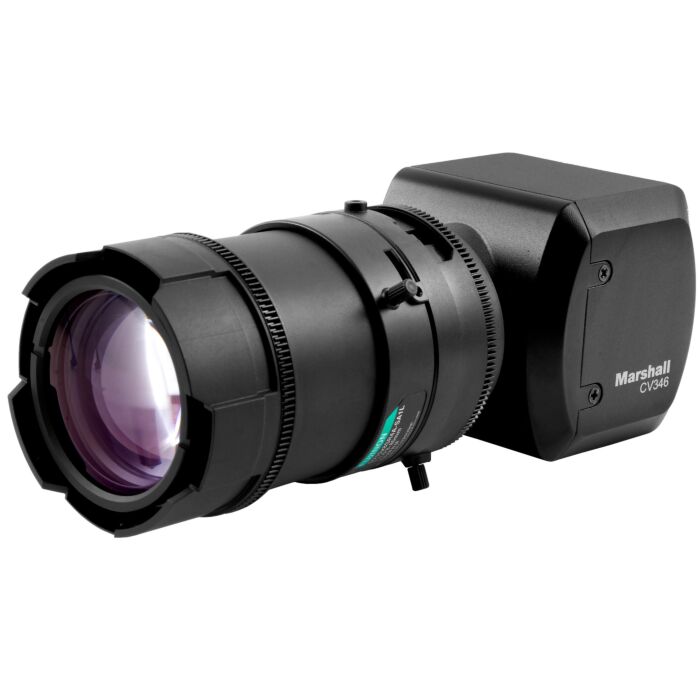

The Marshall CV346 Full-HD Miniature Camera offers performance, flexibility, and value in a compact form factor.
SKU
CV346

Built around a next generation 2.5-Megapixel, 1/2.8-inch sensor, the CV346 delivers ultra-crisp, clear progressive Full-HD video up to 1920x1080p at 60/59/50fps and interlaced 1920x1080i at 60/59/50fps.

The CV346 utilizes a full-sized HDMI and BNC (3G/HDSDI) output on rear panel and locking I/O connection for power, control, and stereo audio input (embedded on HDMI & 3G/HDSDI outputs). The CV346's CS lens mount offers a wide range of prime and varifocal lens options from ultra-wide to telephoto.

The CV346 can capture detailed shots while maintaining an ultra-discreet compact point-of-view perspective without sacrificing versatility or convenience. Remote adjustment and picture settings commands are delivered via common RS485 (Visca) or OSD menu joystick on locking breakout cable. A wide range of picture adjustment settings are available and adjustable from a distance including paint (red/blue), white balance, exposure, gain control, pedestal (blacks), white clip, gamma, and more.

Hirose Breakout Cable (included with camera)

  • 1. RS-485 wire (+/-) Input
  • 2. 12V Power 2.1 mm Plug (Center Contact)
  • 3. Hirose connector plugs into camera
  • 4. OSD Menu Control
  • 5. TRS Audio Mic/Line-level input



Applications:

  • Live Broadcast Production
  • Courtroom Capture
  • Corporate Video
  • Government Assembly
  • Sportscast
  • Newscast
  • Reality Television
  • Concerts
  • House of Worship
