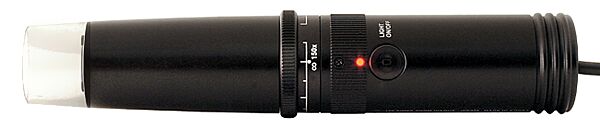

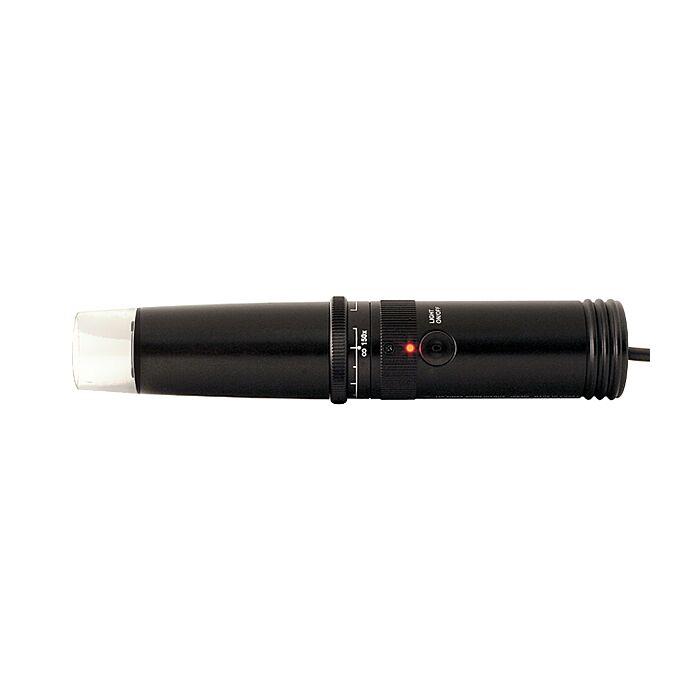

Marshall Electronics C-IN5311 1/3" Color Microscope Camera

SKU
C-IN5311

The Marshall Electronics Microscope Zoom Camera uses cutting-edge display technology for outstanding magnification and color resolution. Simply plug the camera into your monitor's video input, adjust the focus, and you'll be amazed by the detail and clarity of even the smallest objects. This is a must-have tool for industrial inspection of PC boards and metal surfaces, as well as an essential instrument for scientists and educators who want detailed views of specimens. The Marshall Microscope Zoom Camera can also be used in healthcare and beauty fields for up-close inspection of skin, hair, and nails and offers hobbyists/collectors critical assessment of coins, stamps, precious gems and more.

Features:

  • Up to 150x zoom magnification
  • High resolution color for crisp, clear images
  • Changeable lens tips for narrow and wide area viewing
  • Easy zoom and focus control bar
  • Bright LED light with on/off switch
  • Includes sturdy body stand for motionless imaging
  • Easy set up


Applications:

  • Industrial Inspection of PC Boards and Metal Surfaces
  • Essential Instrument for Scientists and Educators
Image Sensor 1/2.8” 2M STARVIS2
Effective Pixel Elements NTSC: 768(H) x 498(V) / PAL: 752 (H) x 582 (V)
Scanning System NTSC: 525 lines, 60 field/sec / PAL 625 lines, 50 Field/sec
Resolution 470 TV lines
Illumination 0.5 Lux
Lens 35X ~ 150X
Video Output Composite, 1.0 p-p, 75Ω
Power Consumption DC 12V/200mA
Dimension 226mm x 56mm (with stand)
Power Consumption DC 12V/200mA
Weight Approx: 195g, 450g with stand
