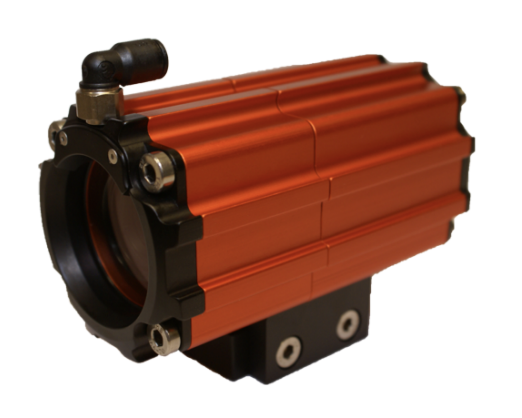

CEI Machine Vision Camera Enclosure IP67 Nano 29mm (Extruded)
As a leading innovator in the Machine Vision Industry, CEI is proud to introduce our new line of Machine
Vision Camera Enclosures, Cables, and Accessories for demanding vision applications.
SKU

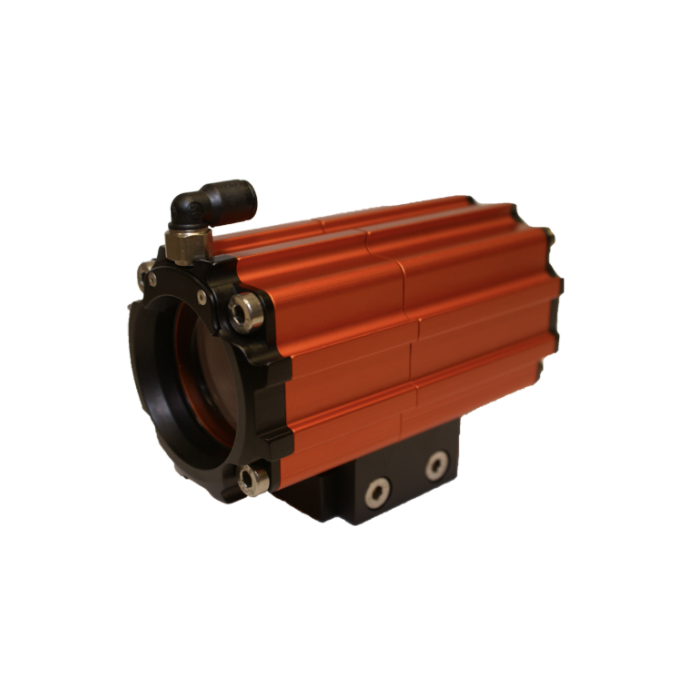

Machine Vision Camera Enclosure IP67 Nano (Extruded)
Extruded Machine Vision Camera Enclosure IP67 29mm
Features:
- CEI Integrated Connector Design ( no cord grips )
- IP67 protection
- Design for Dalsa Genie Nano and other popular camera models
- Excellent heat dissipation
- Allows changing and focusing Optics while mounted
- Flexible mounting options
- High quality (easy to replace) windows by Midwest Optical
- Lightweight low-profile design
- Type 2 anodizing
- Options: Mounts, Visors, Air Curtains, Windows & Filters
- Options: Custom Sizes, lengths, Cables
- Options: Complete Solutions (Camera, Enclosure, Cabling)
- Competitive pricing
- Made in USA, Patent Pending
Applications:
- Machine Vision
- Industrial Inspection
- Quality Control
| Camera | Dalsa Genie Nano & Other Machine Vision |
| Optics | Supports a wide range of C-Mount optics |
| Window | Midwest Optical – AR coated |
| Interface Connector | M12 X-Code Ethernet |
| Optional Interface Connector | M12 12 pin male |
| Mounting | 2 x ¼”-20, SLM-1 pattern with adapter |
| Sealing | IP67 |
| Material | 6063 Aluminum |
| Coating | Type 2 anodized |
| Length | 133 mm (with Lens Cover and M12 connector.) |
| Height / Width | 66 mm square |
| Window Diameter | 42 mm |
| Weight | 880 g (typical weight fully assembled W/ Camera) |
