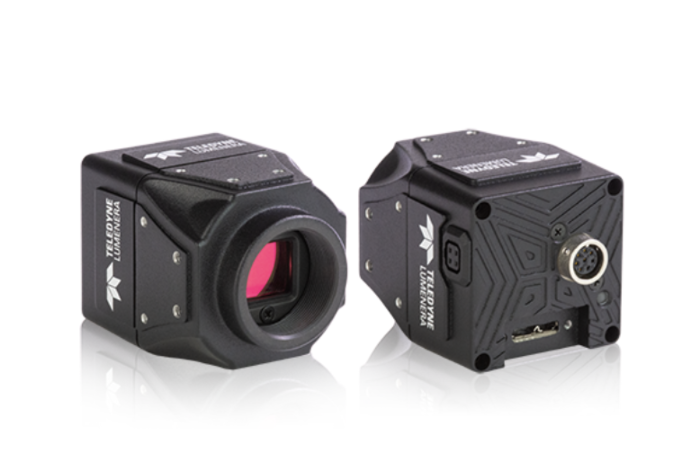

Lumenera/Teledyne LT945RM USB3 Industrial Camera – 8.9MP Sony IMX255 Global Shutter CMOS, C-Mount, P-Iris, ROI, IP40, 42 fps
The Teledyne Lumenera LT945RM is a rugged industrial-grade USB3 vision camera designed for high-performance imaging in demanding environments. Featuring the Sony IMX255 1" CMOS global shutter sensor, this 8.9MP monochrome camera delivers 4112 x 2176 resolution at up to 42 fps (standard) and 57 fps (burst) with support for ROI (Region of Interest) for enhanced frame rates.
Engineered for precision imaging, the LT945RM offers P-iris control via a dedicated 4-pin connector, a locking USB 3.0 Micro-B interface, and Hirose GPIO for robust integration. Ideal for outdoor and industrial environments, it supports IP40 protection, -30°C to 70°C storage, and 0°C to 50°C operation.
The camera features a 72.7 dB dynamic range, 2.41 e⁻ temporal dark noise, 62% QE at 530 nm, and 1.3 e⁻/s dark current, making it suitable for high-contrast applications such as Intelligent Traffic Systems (ITS), robotic inspection, aerial imaging, and life sciences. It includes 128MB image buffer, 8MB flash memory, and dual user-configurable sets for flexible deployment.
