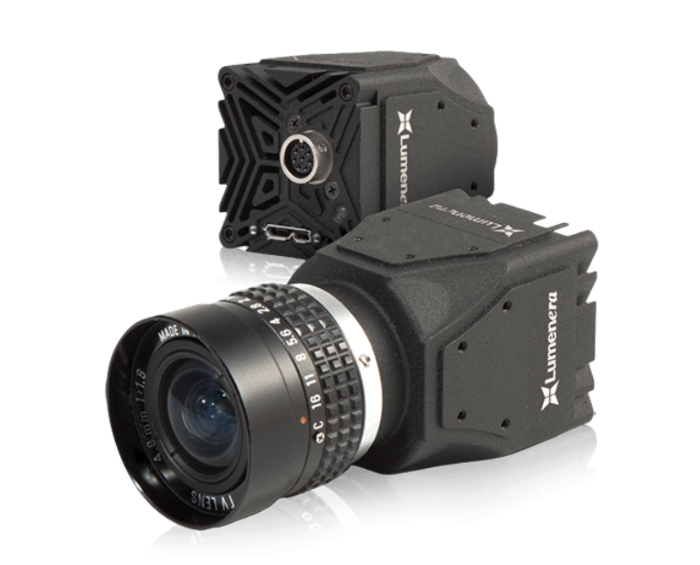

Lumenera/Teledyne LT425M USB3 Industrial Camera – 2MP 1" Global Shutter CMOS, C-Mount, IP40 Rated, 43x43x65mm, USB 3.0 Interface
The LT425M from Teledyne Lumenera’s LT Series is a rugged, high-performance monochrome industrial camera featuring a 2.1 MP (2048 x 2048) resolution with a 1" AMS CMV4000 global shutter CMOS sensor. Designed for precision imaging in demanding environments, this camera delivers excellent detail capture in high-speed, high-vibration, and outdoor conditions.
Engineered for 24/7 use, the LT425M includes a locking USB 3.0 Micro-B interface supporting up to 5.0 Gbps data rates, ensuring uninterrupted high-speed image transfer. It offers 8/12-bit digitization, supports Power over USB or external 5–25V power via GPIO, and has a low power draw of 4 W max.
With a 5.5 µm pixel size, image sync via free-running or trigger, and advanced features such as 128 MB image buffer, manual/automatic gain, and gamma correction, the LT425M is ideal for Intelligent Traffic Systems (ITS), machine vision, robotics, and aerial imaging.
Encased in a compact IP40-protected 43 mm x 43 mm x 65 mm body with C-mount lens support, the LT425M operates reliably across a 0°C to 50°C temperature range, making it a durable choice for industrial and outdoor imaging systems.
