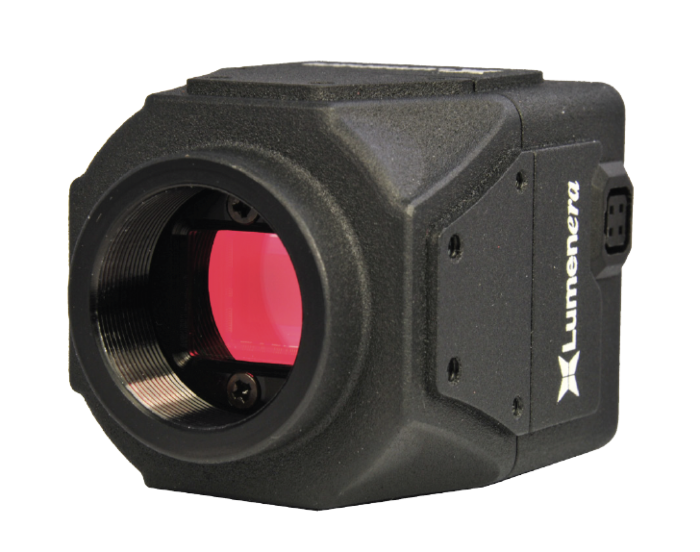

Lumenera/Teledyne LT1245RM 12MP Global Shutter CMOS Camera, Sony IMX253 Sensor, USB 3.1 Gen 1, 44x44x61mm, C-Mount, Industrial Vision-Ready
The Lumenera/Teledyne LT1245RM is a high-performance 12 Megapixel monochrome camera engineered with Sony’s advanced Pregius® IMX253 1.1" global shutter CMOS sensor, delivering outstanding image fidelity, low noise, and fast throughput for demanding machine vision applications. With a resolution of 4112 x 3008 pixels and ~30 fps at full resolution, this USB 3.1 Gen 1 camera enables rapid and precise image acquisition in critical environments.
Engineered for integration, the compact 44 x 44 x 61 mm housing offers multiple mounting options, C-Mount lens compatibility, and industrial-grade locking USB and Hirose connectors for secure data and power delivery. The camera supports both software and hardware triggers and features 128MB of onboard RAM for low-latency frame buffering—ideal for high-reliability imaging pipelines.
Technical highlights include 8/12-bit selectable output, 74 dB dynamic range, 3.45 μm pixel pitch, ~2.41 e- read noise, and peak quantum efficiency of 68% (mono). Built-in FPGA accelerates performance, while region of interest (ROI) functionality increases effective frame rates for targeted capture.
Compliant with USB3 Vision, DirectShow, FCC Class B, and CE standards. Includes SDK support for Windows (10/8.1/7) and Linux platforms, with APIs for C/C++, .NET, and DirectX.
Whether for industrial automation, scientific imaging, or embedded vision systems, the LT1245RM offers exceptional reliability, precision, and integration flexibility in a compact, robust package.
Features:
- 5 MP monochrome global shutter sensor
- Sony IMX253 global shutter CMOS sensor (1.1" format)
- 12 Megapixel resolution (4112 x 3008 pixels)
- Up to ~30 fps at full resolution
- High-speed USB 3.1 Gen 1 interface
- Selectable 8 or 12-bit pixel data
- FPGA-enabled with 128MB onboard buffer
- Hardware and software trigger support
- Industrial locking USB and Hirose connectors
- Compact 44 x 44 x 61 mm C-Mount design
- Region of Interest (ROI) control
- Dynamic range: ~74 dB
- Read noise: ~2.41 e⁻
- Power over USB or GPIO
- USB3 Vision and DirectShow compatible
- SDK for Windows 7/8.1/10 and Linux
- Operating temp: 0°C to 50°C, IP51 rated
- CE, FCC Class B, RoHS, WEEE compliant
Applications:
- Industrial machine vision
- Automated optical inspection (AOI)
- Robotics and automation systems
- Life sciences and lab imaging
- Scientific research and microscopy
- High-speed part inspection
- Packaging and bottling QC
- Traffic and ITS systems
- Embedded vision applications
- OEM imaging integrations
| Sensor Specifications | |
|---|---|
| Image Sensor | Sony IMX253, CMOS, color or monochrome |
| Optical Format | 1.1" |
| Imager Size (Diagonal) | 17.6 mm |
| Pixel Size | 3.45 x 3.45 μm |
| Resolution | 4112 x 3008 pixels |
| ROI Control | Yes |
| Camera Specifications | |
| Max Frame Rate | ~30 fps at full resolution |
| Bit Depth | 8 or 12-bit |
| Exposure Control | Manual and automatic |
| Exposure Range | 32μs–71.6m (snapshot), 14μs–15.5s (video) |
| Gain Control | Manual and automatic |
| Gain Range | ~1 to 256x |
| White Balance | Manual and automatic |
| Trigger Modes | Hardware and software |
| Camera Characteristics | |
| Sensitivity | Mono: 5.0 DN/(nJ/cm²), Color: 4.5 DN/(nJ/cm²) |
| Dynamic Range | ~74 dB |
| Full Well Capacity | ~10,500 e⁻ |
| Quantum Efficiency | 61% @ 530 nm (color), 68% @ 570 nm (mono) |
| Read Noise | ~2.41 e⁻ |
| Dark Current | 1.2 e⁻/s (22°C ambient) |
| Mechanical Specifications | |
| Data Interface | USB 3.1, micro locking connector |
| I/O Connector | Locking Hirose MXR-8R-8SA(71) |
| Lens Mount | C-Mount |
| Dimensions | 44 x 44 x 61 mm |
| Mass | ~140 g |
| Operating Temp | 0°C to 50°C |
| Storage Temp | -30°C to 70°C |
| Humidity | 5–95%, non-condensing |
| Shock | IEC60721-4-7 Class 7M2 |
| Vibration | IEC60068-2-6, 2-64 |
| Ingress Protection | IP51 (optical path) |
| Software & Power | |
| Onboard Memory | 128MB RAM, non-volatile |
| OS Compatibility | Windows 10/8.1/7, Linux (32/64-bit) |
| Interfaces | USB3 Vision, DirectShow |
| Power Consumption | ~4W |
| Power Options | USB or 5V DC via GPIO |
| Certifications | FCC Class B, CE, RoHS, WEEE |
| Warranty | 3 Years |
