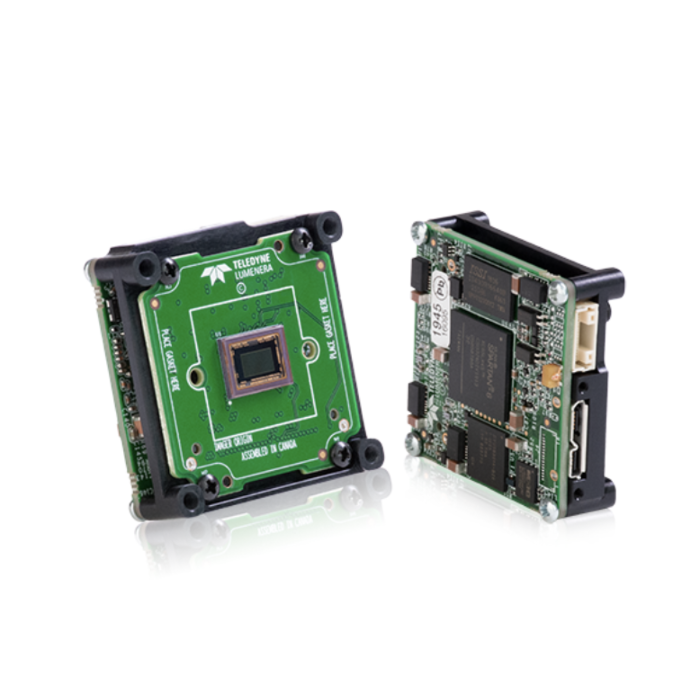

Lumenera/Teledyne LT-C4030B 8.9 MP USB3 Board-Level Camera with Sony IMX267 Global Shutter CMOS Sensor

The Lumenera/Teledyne LT-C4030B is a high-performance 8.9 MP board-level USB3 camera engineered for compact embedded imaging applications. Featuring the Sony IMX267 1" global shutter CMOS sensor, it delivers 4112 x 2176 resolution at 31 fps with precise image capture under dynamic lighting conditions.

At just 28 g, it’s ideal for UAVs, robotics, handheld, and mobile platforms, offering superior integration flexibility with a flat-back housing and side-mounted connectors. It supports hardware, software, and free-run triggering, includes 128 MB onboard image buffer, and allows for 14 µs to 30s exposure range.

With 73.27 dB dynamic range, 12-bit ADC, and programmable gain (1x–251x), the LT-C4030B ensures high sensitivity and image fidelity. Features include manual/auto white balance, gamma correction, lookup tables, and user-configurable settings stored in non-volatile memory.

Connectivity is via USB 3.0 (5 Gbps), with 2 bi-directional non-isolated and 1 in/1 out opto-isolated I/O, powered via USB or 5–25 V GPIO. Fully compliant with USB3 Vision v1.0, CE, FCC, KCC, RoHS, and backed by a 3-year warranty.
