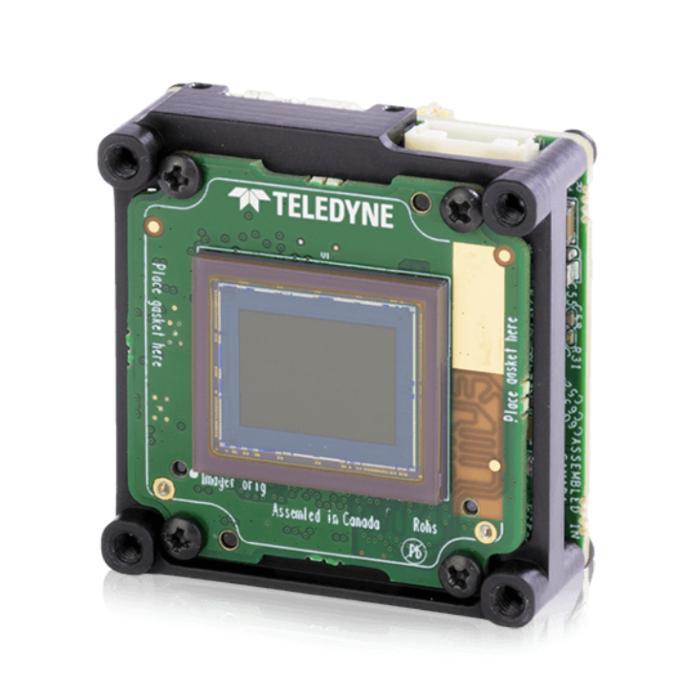

Lumenera/Teledyne LT-C4020B 12.3 MP USB3 Board-Level Camera with Sony IMX304 Global Shutter CMOS Sensor
The Lumenera/Teledyne LT-C4020B board-level camera delivers high-resolution imaging with minimal system footprint, powered by a 12.3 MP Sony IMX304 1.1" CMOS sensor with global shutter technology. Designed for embedded, UAV, mobile, and space-constrained imaging systems, this compact 40.4 x 40.4 x 17.1 mm camera supports 4112 x 3008 resolution at 22 fps via USB 3.0 (5.0 Gbps).
It features a robust set of technical capabilities including programmable exposure (14 µs to 30 s), 128 MB image buffer, gamma correction, auto white balance, hardware/software/free-run triggering, and ROI support. With high quantum efficiency (QE): 49% @470nm (Blue), 59% @525nm (Green), and 46% @630nm (Red), this camera is optimized for challenging dynamic lighting environments.
Additional specs include a pixel size of 3.45 µm, 8/12-bit digitization, 73.22 dB dynamic range, 10400 e⁻ saturation capacity, and low power draw (2.3W–3.6W). Supports power via USB or 5–25V GPIO. Integrated I/O includes 2 bi-directional non-isolated ports, opto-isolated I/O (1 in / 1 out), and side-mounted JST and USB3 Micro-B connectors for flexible cable routing in multi-camera arrays.
Compliant with USB3 Vision v1.0, CE, FCC, RoHS, and KCC standards, and backed by a 3-year warranty. Ideal for embedded machine vision, robotics, mobile platforms, and custom OEM applications.
