Lumenera/Teledyne LT-C2420B 5.1 MP USB3 Board Level Camera with Sony IMX264 Global Shutter CMOS Sensor

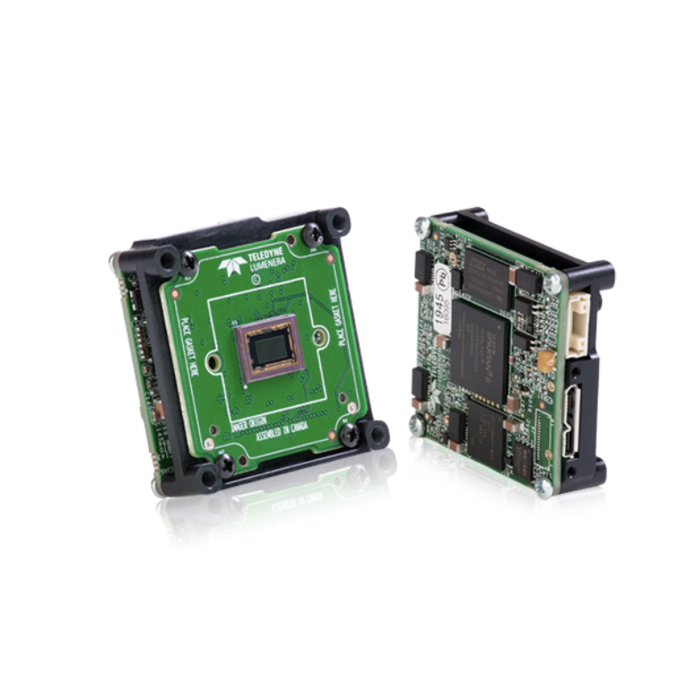

The Lumenera/Teledyne LT-C2420B board-level camera delivers compact, high-performance imaging in space-constrained embedded systems. Equipped with the Sony IMX264 2/3" CMOS sensor, this camera offers 5.1 megapixel (2464 x 2056) resolution with global shutter technology, ensuring artifact-free imaging of fast-moving objects.

Engineered for integration, it features a compact 40.4 x 40.4 x 17.1 mm housing and weighs just 28 g, ideal for UAVs, handhelds, and embedded vision applications. Data throughput is handled via USB 3.0 (5 Gbps) using a USB3 Micro-B horizontal locking connector. The camera supports burst and standard acquisition up to 35 fps, and its 73.02 dB dynamic range ensures sharp, color-accurate results in varying lighting conditions.

This model includes a robust image buffer (128 MB) and onboard 8 MB flash memory for configuration storage. Functional features include manual/auto exposure, manual/auto gain (1x to 251x), programmable ROI, image sync options, and hardware/software triggering.

Designed for flexibility, it provides 2 bi-directional non-isolated I/Os, 1 opto-isolated input, 1 opto-isolated output, and a wide power input range (5 to 25 V via GPIO or USB3). Additional features include auto white balance, gamma correction, and 12-bit ADC for fine image detail.

Certified to CE, FCC, KCC, RoHS standards, the LT-C2420B complies with USB3 Vision v1.0 and comes with a 3-year warranty.
