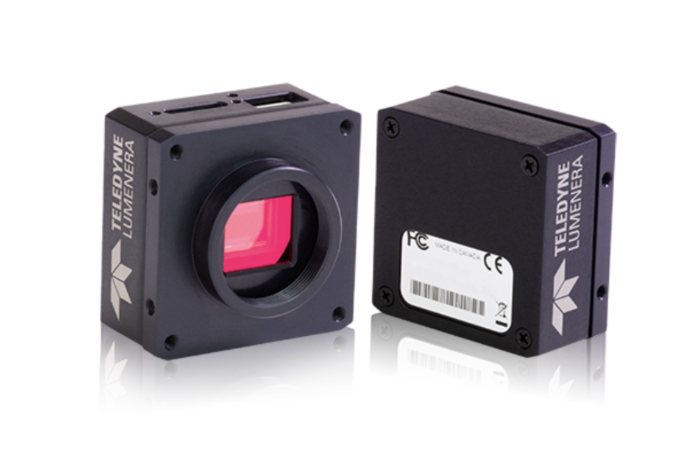

Lumenera/Teledyne LT-C2020 USB3 Global Shutter Industrial Camera – Sony IMX265, 3.1 MP, 55 FPS

The LT-C2020 from Lumenera/Teledyne is a compact industrial USB3 camera engineered for demanding imaging environments requiring precision, speed, and reliability. Featuring a Sony IMX265 global shutter CMOS sensor, the LT-C2020 delivers 3.1 megapixel resolution (2064 x 1544) with up to 55 FPS at full resolution, making it ideal for machine vision, Intelligent Traffic Systems (ITS), UAVs, and robotics.

Key specifications include a 1/1.8" sensor format, 3.45 µm pixel size, and high dynamic range (73 dB) to ensure high-contrast image capture in variable lighting. The camera offers low read noise (2.3 e-), high saturation capacity (10400 e-), and a broad gain range of 1x to 251x (0–48 dB) for adaptable performance in diverse environments.

Its flush body design with side connectors allows integration into space-constrained systems. The rugged housing is rated IP40, operating reliably in temperatures from 0°C to 50°C and humidities up to 95% (non-condensing). USB 3.0 interface (5 Gbps) with horizontal locking ensures secure high-speed data transfer.

The LT-C2020 supports image processing functions including gamma correction, auto white balance, brightness/contrast tuning, and region of interest (ROI) modes. With 128 MB image buffer, 8 MB flash memory, and USB3 Vision v1.0 compliance, it seamlessly integrates into modern vision systems.
