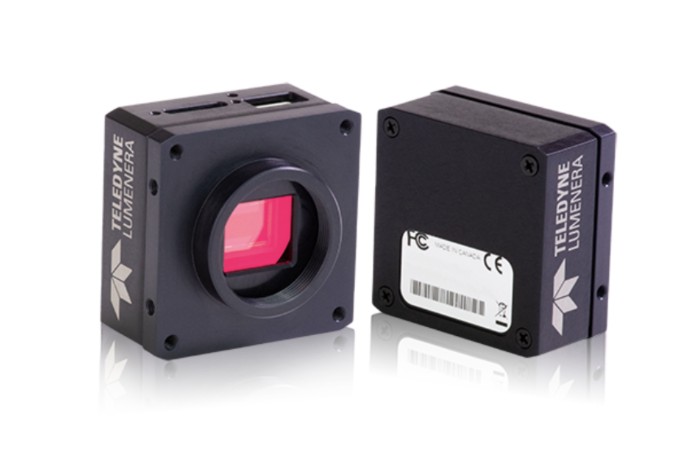

Lumenera/Teledyne LT-C1950 USB3 Vision Camera – Sony IMX392, 2.3 MP, 162 fps, Global Shutter, C-Mount
The LT-C1950 from Lumenera / Teledyne delivers exceptional imaging performance with Sony’s IMX392 global shutter CMOS sensor, achieving 2.3 megapixel (1936 x 1216) resolution at up to 162 frames per second over a USB 3.0 interface. This compact industrial camera supports high-speed acquisition, making it ideal for Intelligent Traffic Systems (ITS), robotic inspection, UAVs, aerial imaging, and life sciences.
Equipped with a C-mount, IR cut filter (650nm), and global shutter technology, it ensures low-distortion capture in high-motion environments. Features include 8/12-bit digitization, 3.45µm pixel size, IP40-rated housing, and programmable exposure (14µs–30s). Built for rugged deployment with an operating temperature range of 0°C to 50°C and lockable USB3 Micro-B connector, the camera is optimized for 24/7 industrial use.
With 73.27 dB dynamic range, 2.3 e- read noise, and 10400 e- saturation capacity, it excels in high dynamic lighting conditions. The 128MB image buffer, automatic white balance, hardware/software triggering, and onboard 8MB flash memory support demanding real-time applications.
The LT-C1950 complies with USB3 Vision v1.0, CE, FCC, KCC, and RoHS standards and includes a 3m USB 3.0 cable. Power via USB or 5–25 V GPIO. Three-year manufacturer warranty.
