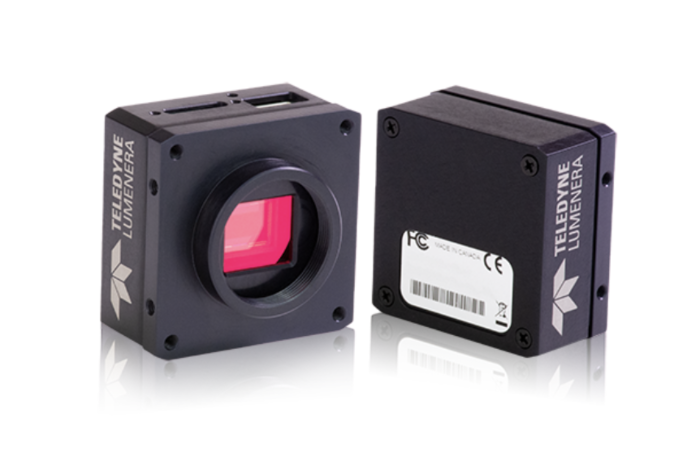

Lumenera/Teledyne LT-C1900 USB3 Vision Industrial Camera – 2.1MP Sony IMX327, Rolling Shutter, Compact, Rugged, HDR Imaging
The Lumenera / Teledyne LT-C1900 is a high-performance industrial USB3 Vision camera, engineered for embedded imaging systems requiring compact size, robust build, and precise imaging. Featuring the Sony IMX327 Starvis™ 2.1MP CMOS sensor (1944 x 1096 resolution), it delivers superior low-light sensitivity with a 2.9 µm pixel pitch and a rolling shutter with global reset for distortion control.
Designed for demanding applications including UAVs, ITS, robotics, and life sciences, this camera supports full-resolution capture at up to 60 fps, offers 72.8 dB dynamic range, and supports an IR cut-off filter at 650 nm for enhanced spectral performance.
The LT-C1900 is equipped with a USB 3.0 interface (5.0 Gbps) with horizontal locking USB Micro-B and JST GPIO connectors, ensuring robust connection in high-vibration environments. It supports manual/auto exposure, gain control (1x–3715x), hardware/software triggering, and advanced image processing features including ROI, gamma correction, LUT, and auto white balance.
Its compact 45 x 45 x 36.1 mm IP40-rated enclosure makes it ideal for space-constrained integrations. Operating in temperatures from 0 to 50°C, and tolerating storage from -30°C to 70°C, it is built for 24/7 industrial use.
Compliant with USB3 Vision v1.0, CE, FCC, KCC, RoHS, and backed by a 3-year warranty, the LT-C1900 is your go-to solution for reliable, high-quality imaging in critical environments.
