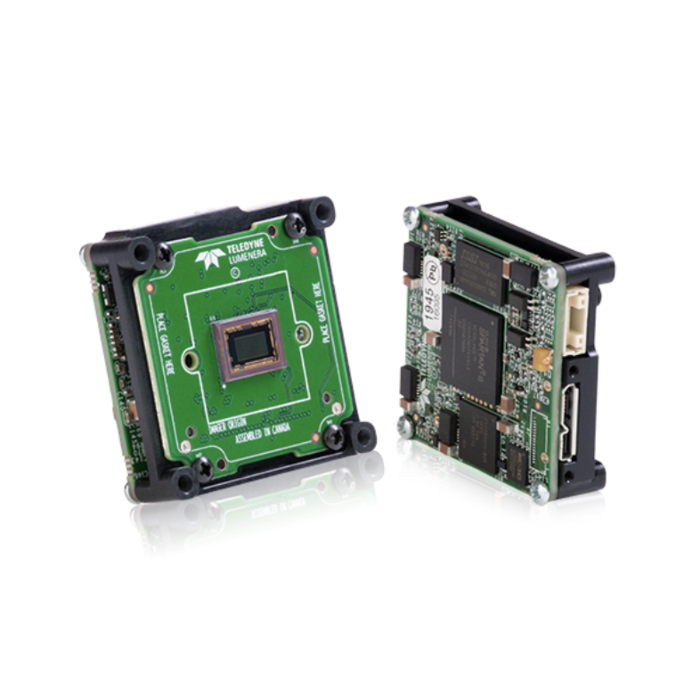

Lumenera/Teledyne LT-C1610B USB3 Global Shutter CMOS Camera – 1.7 MP, Sony IMX432, 9 µm Pixel, 96 FPS, Compact Board-Level Design

The LT-C1610B from Teledyne Lumenera’s LT Series is a compact, board-level USB3 vision camera designed for embedded and mobile imaging systems demanding high dynamic range and precision capture in constrained spaces.

Equipped with a Sony IMX432 1.1” global shutter CMOS sensor, this camera delivers 1.7 megapixel (1608 x 1104) resolution with a large 9 µm pixel size and high saturation capacity of 99,000 e-, providing exceptional low light sensitivity and image clarity. Operating at 96 FPS, it ensures real-time performance in high-speed or dynamic environments such as UAVs, robotics, handheld devices, and traffic systems.

Designed for system integration, the 40.4 mm x 40.4 mm x 17.1 mm, 28 g form factor offers flexible connector positioning to streamline cable management in dense assemblies. The device operates from 0 to 50°C, supports Power over USB or 5–25 V GPIO, and complies with USB3 Vision v1.0, CE, FCC, KCC, RoHS standards.
