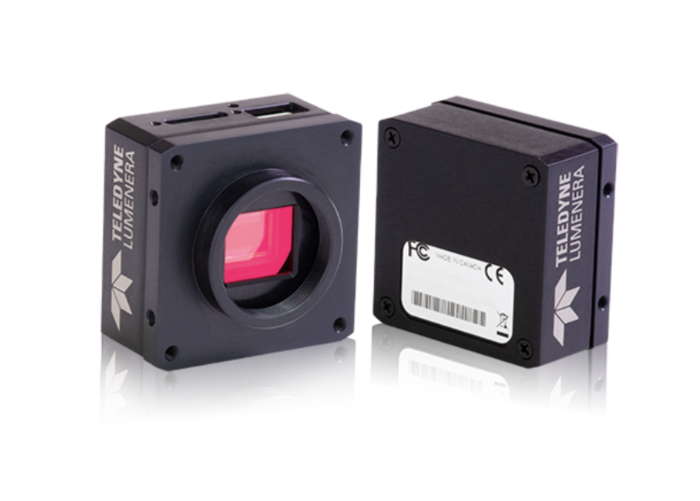

Lumenera/Teledyne LT-C1610 1.7MP USB3 Global Shutter Camera with Sony IMX432 Sensor, HDR, and IP40 Protection

The Lumenera/Teledyne LT-C1610 is a high-performance USB3 Vision-compliant industrial camera engineered for demanding imaging applications such as Intelligent Traffic Systems (ITS), UAVs, robotic inspection, and mobile platforms. Featuring a 1.7MP Sony IMX432 CMOS sensor with a global shutter, it delivers 96 fps at full resolution (1608 x 1104) with exceptional image fidelity and accuracy.

The LT-C1610 supports high dynamic range (72 dB) and a full well capacity of 99,000 e-, making it highly effective in challenging lighting environments, including scenes with extreme contrast. The camera’s 9 µm pixel size ensures high sensitivity, enhanced further by its low read noise of 23 e- and excellent quantum efficiency across RGB channels (QE: 53% @470nm, 63% @525nm, 50% @630nm).

Designed for rugged field deployment, the LT-C1610 includes an IP40-rated 45 mm x 45 mm x 36.1 mm metal enclosure, locking USB3 Micro-B and GPIO connectors, and a C-mount lens interface. It operates reliably in temperatures ranging from 0°C to 50°C, withstanding storage conditions down to -30°C and up to 70°C.
