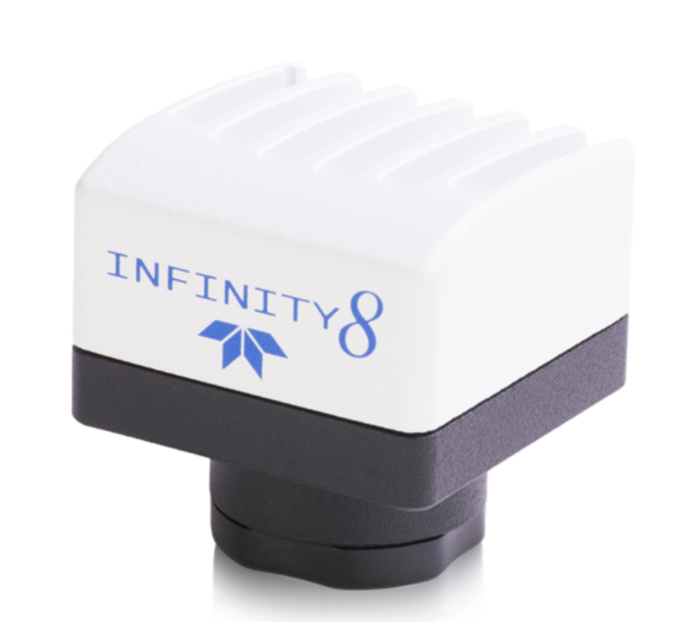

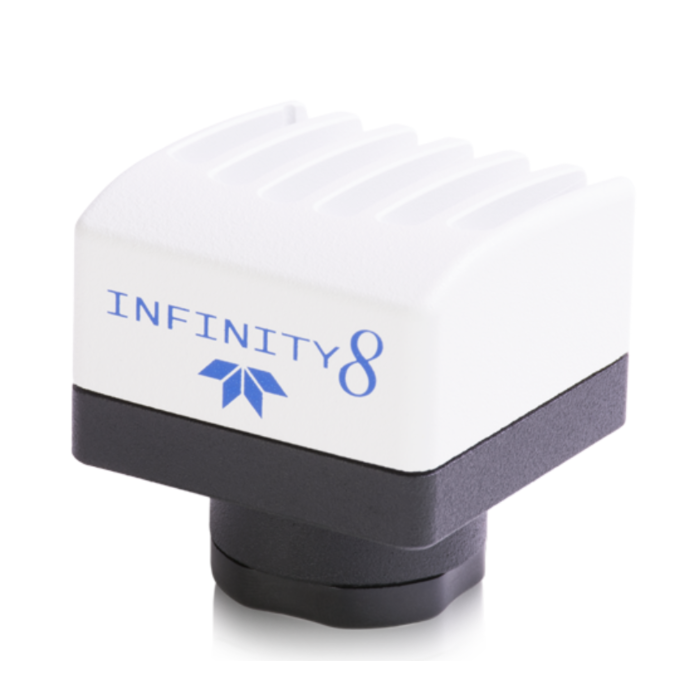

Lumenera/Teledyne INFINITY8-3C 2.9MP Global Shutter CMOS Camera, Sony IMX429 Sensor, USB 3.0, 45x45x41.5mm, C-Mount, Microscopy-Optimized
The Lumenera/Teledyne INFINITY8-3C is a high-performance 2.9-megapixel digital microscope camera engineered for precise imaging across fluorescence, brightfield, darkfield, and other advanced microscopy techniques. It utilizes the Sony® IMX429 global shutter CMOS sensor with a 2/3” optical format and 4.5 µm pixel size, enabling exceptional image quality and color fidelity. Capable of delivering 62 frames per second at full resolution (1944 x 1472) and 124 fps at 968 x 736 with 2x subsampling, this camera supports high-speed live viewing, framing, and focusing without lag. An integrated 128 MB image buffer, manual/auto exposure and gain control, and global shutter architecture allow seamless capture of moving specimens with minimal artifacts.
Designed for maximum versatility and performance, the INFINITY8-3C supports USB 3.0 data transfer (5 Gbps) through a locking USB3 Micro-B connector and includes a GPIO interface for trigger and strobe synchronization. The heat-dissipating fanless body minimizes sensor noise without active cooling, supporting clean imaging in low-light conditions. It pairs effortlessly with 0.63x–0.7x C-mount couplers and is fully compatible with Windows and macOS through the bundled INFINITY ANALYZE 7 software, which supports live measurement, image stitching, video capture, and fluorescence imaging modes. This camera is ideal for applications including histology, live cell imaging, DNA analysis, and semiconductor inspection.
Features:
- 2.9 MP resolution (1944 x 1472), 2/3” CMOS sensor
- Sony IMX429 global shutter sensor, 4.5 μm pixel size
- 62 fps at full resolution; 124 fps with 2x sub-sampling
- USB 3.0 Micro-B interface with locking connector
- 128 MB onboard image buffer
- Manual and automatic control of exposure, gain, and white balance
- Compatible with C-Mount microscopes (ideal with 0.63x–0.7x coupler)
- Heat-dissipating fanless design; low power consumption (2.3–3.6 W)
- Supports Windows and macOS; includes INFINITY ANALYZE 7 software
- GPIO for strobe and trigger control
- Compact body: 45 x 45 x 41.5 mm; weight: 108 g
- Power via USB or 5–25V GPIO
Applications:
- Brightfield microscopy
- Fluorescence imaging
- DNA analysis and cytogenetics
- Live cell imaging and time-lapse studies
- Histology, pathology, and cytology
- Whole slide imaging
- Semiconductor and wafer inspection
- Metallurgical microscopy
- Forensic sample analysis
- Gel documentation and analysis
| Specifications | |
|---|---|
| Resolution | 1944 x 1472 |
| Megapixels | 2.8 MP |
| Max Frame Rate | 62 fps (Full Resolution), 124 fps (2x Subsampling) |
| Sensor Model | Sony IMX429 |
| Pixel Size | 4.5 µm |
| Sensor Type | CMOS |
| Sensor Format | 2/3" |
| Spectrum | Color |
| Lens Mount | C-Mount |
| Data Interface | USB 3.0 (5 Gbps) |
| Features | |
| Acquisition Modes | Single Capture, Fluorescence Mode, Timelapse, Video |
| Exposure Control | Manual and Automatic |
| Gain Control | Manual and Automatic |
| Image Buffer | 128 MB |
| Partial Image Modes | Pixel Binning, Decimation, ROI |
| White Balance | Manual and Automatic |
| Performance | |
| C-Mount Coupler | Recommended 0.63x – 0.7x |
| Dynamic Range | 72 dB |
| Full Well Capacity | 24,900 e- |
| QE (Mono) | 72% |
| QE Green | 0.72 |
| Read Noise (Temporal Dark) | 7.2 e- |
| Physical | |
| Connector | USB3 Micro-B (Horizontal locking) | JST HSHR-09V-S |
| Digitization (ADC) | 8-bit, 12-bit |
| Dimensions (W x H x L) | 41.5 mm x 45 mm x 45 mm |
| Mass | 108 g |
| Operating Temperature | 0 to 50 °C |
| Humidity Range | 5% to 95%, non-condensing |
| Power Consumption | 2.3 W to 3.6 W |
| Power Supply | USB or 5–25V via GPIO |
| Shutter Type | Global Shutter |
| System & Compliance | |
| Included Accessories | 3m USB 3.0 cable, INFINITY ANALYZE software license |
| Port | USB 3.0 |
| Compliance | CE, FCC, RoHS, WEEE |
| ECCN | EAR099 |
| Warranty | 3 Years |
