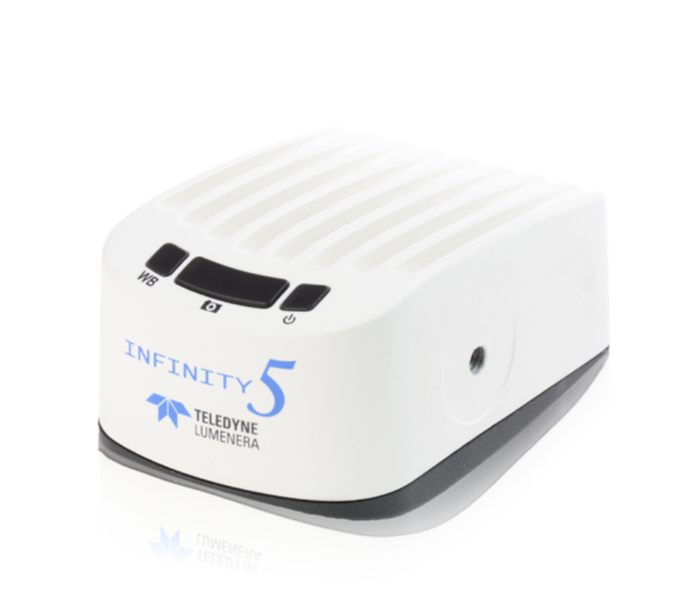

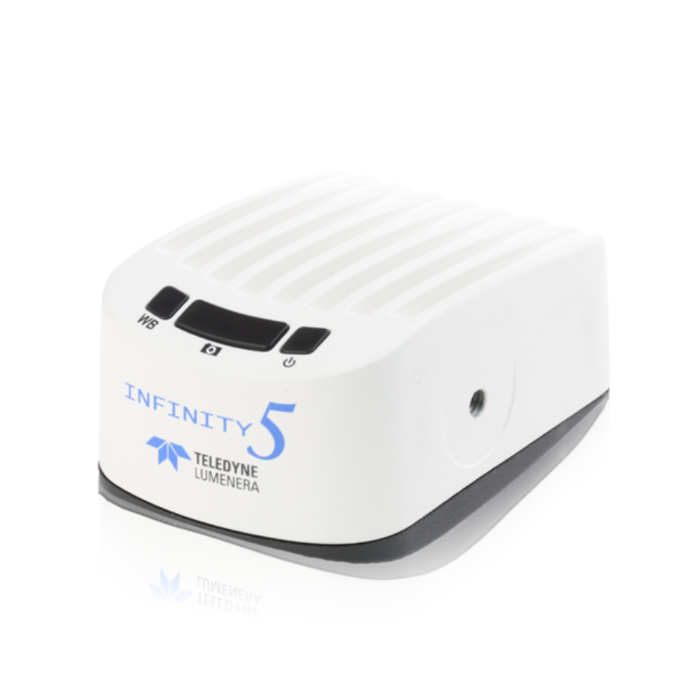

Lumenera/Teledyne INFINITY5-3C – 3.1 MP Color Microscopy Camera with Sony IMX252 CMOS Sensor, USB 3.1 & HDMI Dual Output

The Lumenera/Teledyne INFINITY5-3C is a 3.1 megapixel color microscopy camera built around the high-performance Sony IMX252 Pregius Global Shutter CMOS sensor. Delivering 2064 x 1544 resolution with 3.45 µm pixel size, it supports high-speed imaging at up to 120 fps (8-bit) and dual output via USB 3.1 Gen 1 and HDMI—enabling both computer-connected and standalone use with a monitor.

Engineered for precision applications in fluorescence, brightfield, darkfield, NIR DIC, pathology, and forensic microscopy, this camera provides true-to-eyepiece color with advanced color reproduction algorithms. It supports manual/automatic gain, exposure, and white balance control for fine-tuned imaging.

Key performance specs include a dynamic range of 60 (73 dB), temporal read noise of 2.35 e-, and full well capacity of 10,775 e-. Digitization supports selectable 8- or 12-bit ADC, offering flexibility across research workflows.

Compatible with Windows and macOS, the camera includes the robust INFINITY ANALYZE 7 software license, with no renewal or upgrade fees. Features like intuitive on-camera buttons, multi-user software access, and support for Image-Pro and Micro-Manager add to ease-of-use.

Backed by a 3-year warranty and certified to CE, FCC, RoHS, and WEEE standards, the INFINITY5-3C is ideal for high-precision, high-throughput microscopy environments.
