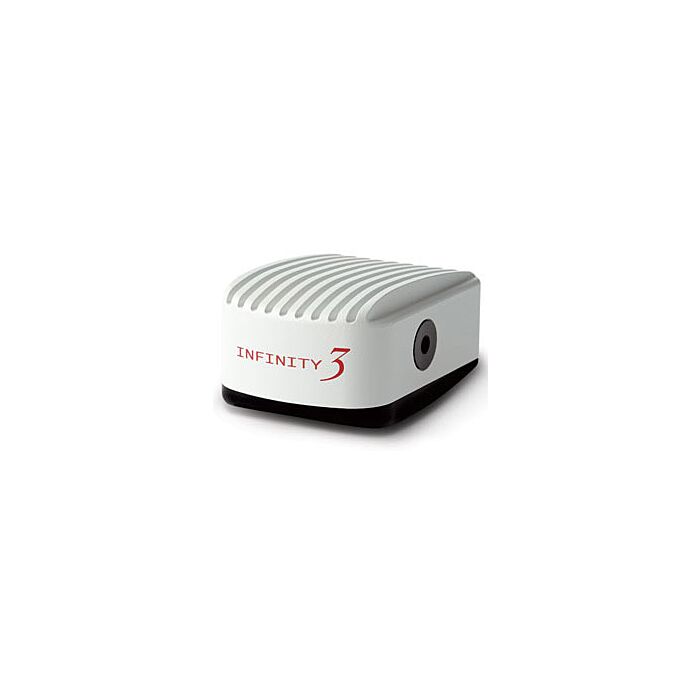

Lumenera INFINITY 3-1URM (Discontinued)
SKU
Lumenera INFINITY 3-1URM
Quick Overview
*Product is Discontinued, Call For Replacement Options
1.4 MP Uncooled CCD Monochrome Camera
Lumenera’s INFINITY3-1URM Monochrome camera is designed to be used in a wide variety of scientific applications. Cooled models are ideal in low-light conditions and where high dynamic range is required. Both color and monochrome product models are available.
With 1392x1040 resolution and on-board processing, these cameras deliver outstanding image quality and value for industrial and scientific imaging applications.
Features:
Applications:
| Camera Sensor | |
| Image Sensor | Sony ICX285 1.4 MP, CCD, color/mono, progressive scan |
| Optical Format | 2/3" |
| Active Area | 9.0 x 6.7 mm |
| Pixel Size | 6.45µm x 6.45µm |
| Resolution | 1392 x 1040 pixels |
| Region of Interest Control | Any multiple of 8 x 8 pixels (8 x 8 pixels minimum) |
| Camera Specifications | |
| Frame Rate | 30 fps at full resolution, 54 fps at 640 x 480 (ROI) |
| Bit Depth | 8 or 14-bit |
| Binning / Subsampling Modes | 2 x 2, 4 x 4 |
| Exposure Control | Manual and automatic control |
| Exposure Range | 3 μs to 211 ms (video), 2 μs to 10 min (snapshot) |
| Gain Control | Manual and automatic control |
| Gain Range | 0.5 to 35 x |
| White Balance | Automatic and manual control |
| Camera Characteristics (at 4.7 fps) | |
| Sensitivity | 5.3 DN/(nJ/cm²) [at 8-bit, 1 x gains] |
| Dynamic Range | 70dB |
| Full Well Capacity | 18,500 e- |
| Quantum Efficiency | 44 % (color peak), 62 % (mono peak) |
| Read Noise | 8 e- rms |
| Dark Current Noise | <1 e-/s at 22º C |
| Mechanical Specifications | |
| Data Interface | USB 2.0 |
| Lens Mount | Adjustable C-Mount standard |
| Dimensions (L x W x H) | 3.85 x 2.00 x 2.75 inches |
| Operating Temperature | 0° C to +50° C |
| Storage Temperature | -30 to +70 ºC |
| Operating Humidity | 5%-95%, Non-condensing |
| Shock/Vibration | 50 G shock, 5 G (2 to 200 Hz) vibration |
| Camera Software | |
| Operating Systems | Windows XP, Vista, 7, Mac OSX, 32 and 64-bit |
| Power and Emissions | |
| Power Consumption | ~2.5 watts (5VDC, 2.5A, 12.5W power supply optional) |
| Power Requirement | USB bus power (optional external power supply recommended for optimal performance at 30 fps) |
| Emissions Compliances | FCC Class BE, CE Certified |
| Hazardous Materials | RoHS, WEEE Compliant |
| Warranty | One (1) year |
| System Requirements | |
| Recommended PC Specs |
|
| Minimum PC Specs |
|
| Included in the Box | |
| Infinity 3-1UR | 1.4 MP Digital Camera for USB 2.0 |
| LuINFSW-DVD | DVD with INFINITY user application software, TWAIN driver and documentation |
| Lu802 | 2 m USB 2.0 Cable |
| Ordering Information | |
| INFINITY3-1URM | 1.4 MP Uncooled CCD Monochrome Camera |
| INFINITY ANALYZE MODULE | INFINITY ANALYZE Advanced Features Module (Multi-Focus Composition and Spherical Aberration Correction Features) |
| LuSDKSW | Software Developer’s Kit (Web Download) |
| LuSDKSW-DVD | Software Developer’s Kit (DVD) |
| La20515 | 5VDC, 2.5 A, 12.5 W Power Supply |
