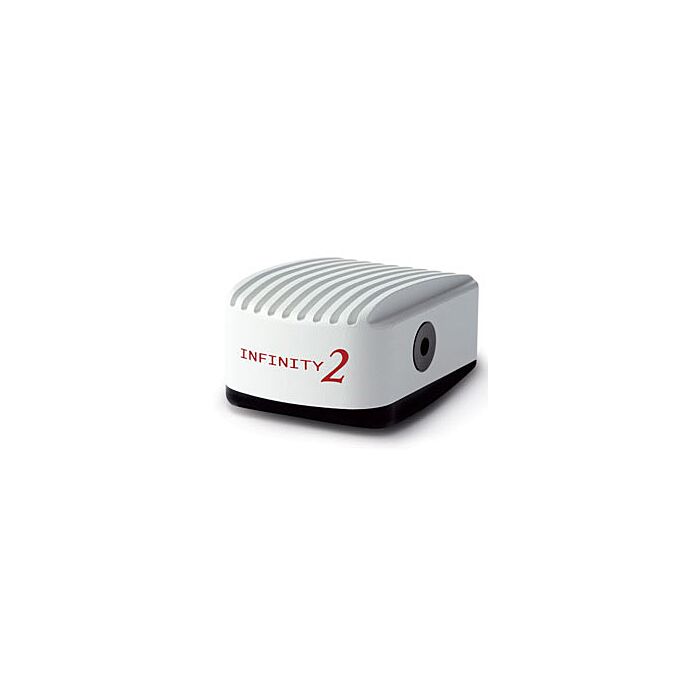

Lumenera INFINITY 2-3 (Discontinued)

Name: Lumenera INFINITY 2-3 (Discontinued)
Brand: Lumenera
SKU: Lumenera INFINITY 2-3

SKU

Lumenera INFINITY 2-3

Please call for pricing

Quick Overview

*Product is Discontinued, Call For Replacement Options

3.3 MP CCD Color Camera

Overview

Lumenera’s INFINITY2-3 digital CCD color camera offers excellent sensitivity and high resolution. This is an ideal camera for brightfield, darkfield, and DIC imaging applications where higher resolution archiving and a wide dynamic range are routinely required. With 2080x1536 resolution and onboard processing, the INFINITY2-3 delivers outstanding image quality for a wide variety of scientific applications.

Features:

The high-speed USB 2.0 interface eliminates a framegrabber and facilitates ease of installation on both laptop and desktop computers

The low noise characteristic of the INFINITY2-3, 3.3 megapixel CCD image sensor results in crisp color quality for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, histology, life science and geology

Full color sub-windowing allows for rapid focus and scanning of samples: 5 fps at full 2080X1536 resolution

Select 8 and 12-bit pixel data modes

The RGB data captured through each pixel contains 36-bits of color image information resulting in 4096 intensity values

Camera control through an intuitive user TWAIN interface results in rapid image capture archiving and documentation for high throughput applications, demanding research environments and teaching facilities

The INFINITY2-3 has a compact design equipped with a C-Mount, facilitating installation on all microscope configurations including upright, inverted and stereo

INFINITY2-3 cameras are software compatible with Windows™ 98 SE, Windows ME, Windows 2K and Windows XP operating systems

Applications:

Brightfield

Darkfield

Cytology

Differential Interference Contrast

Pathology

Histology

Life Science

Geology

Specifications

Image Sensor	Interline Sony ICX262 3.3 MP, CCD, color/mono, progressive scan
Optical Format	1/1.8"
Pixel Size	3.45µm x 3.45µm
Resolution	2080 x 1536 pixels
Camera Specifications
Frame Rate	5 fps at full resolution, higher fps with binning and ROI
Bit Depth	8 and 12-bit
Binning / Subsampling Modes	2 x 2, 3 x 3, 4 x 4
Auto Exposure	Manual and automatic control
Gain Control	Programmable
Gain Range	1 to 10 x optimizable
White Balance	Automatic and manual control
Camera Characteristics
Read Noise	12 e- rms
Mechanical Specifications
Interface Connector	Standard USB 2.0 high-speed interface
Lens Mount	C-Mount lens adapter
Dimensions (W x H x D)	2.25 x 3.85 x 1.56 inches
Mass	300g
Operating Temperature	0° C to +50° C
Operating Humidity	5%-95%, Non-condensing
Camera Software
Operating Systems	Windows 98, ME, 2000, or XP
Power and Emissions
Power Consumption	~2.5 watts
Power Requirement	USB bus power or external 5VDC - 500mA
System Requirements
Recommended PC Specs	Pentium 4, 1.3 GHz or higher 512 MB RAM 60 MB hard drive free space or more USB 2.0 Port Windows 2000 or XP
Minimum PC Specs	600 MHz Processor 256 MB of SDRAM 20 MB hard drive free space USB 2.0 Port Windows 98 or ME
Included in the Box
Infinity 2-3	3.3 MP Digital Camera for USB 2.0
CD-ROM	CD-ROM with INFINITY user application software, includes TWAIN driver
Cables	USB 2.0 cable

Downloads

Lumenera INFINITY 2-3 Spec Sheet
